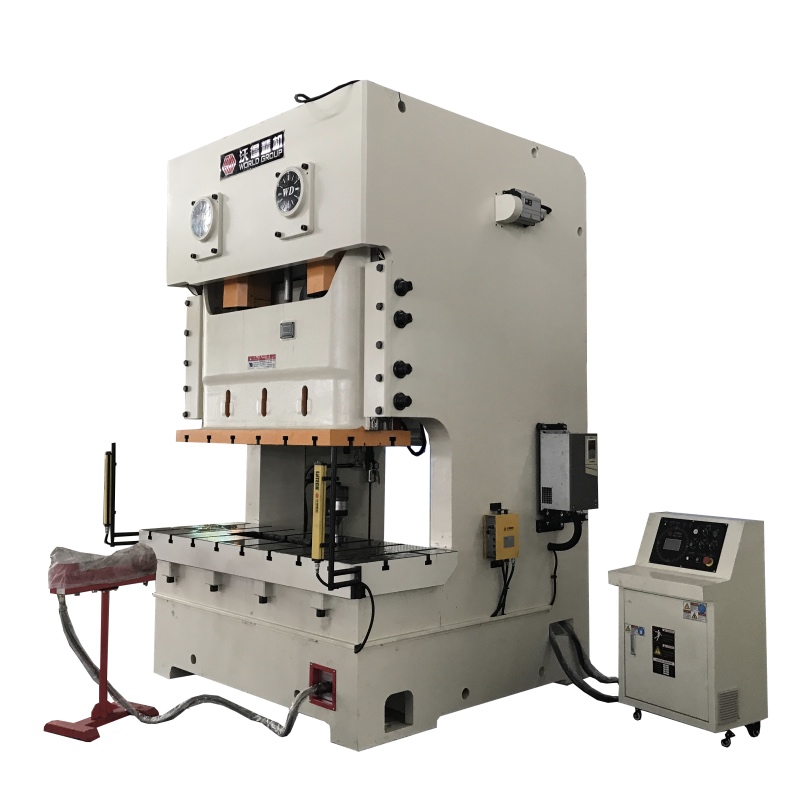

200ton Two Points Gap Frame Stamping Press Machine

JH25-200 is a 200ton two points crank type press machine. This press machine is suitable for big sheet stamping. It is also better for progressive die stamping due to the bigger size bolster. The press control system includes PLC, cam controller and HMI. Operator can check the press working status through the HMI. Counter and pre-set counter function are also available.

Basic parameters:

Press machine model: JH25-200

Tonnage capacity: 2000kN

Stroke length: 250mm

Stroke speeds: 25-40 times per minute

Max. Shut height: 500mm

Shut height adjustment: 110mm

Bolster size: 2420x840mm

Slide bottom size: 1850x650mm

Main motor power: 22kw

Power volage: 380V50HZ

Standard equipment:

Pneumatic clutch and brake

PLC control

HMI with touch screen in English version

Safety valve for clutch

Overload protection system

Slide adjustment motor with die height indicator

Movable electric cabinet

Hand button control panel with foot pedal

Anti-vibration pads

Slide and upper die counterweight balance cylinder

Optional accessories:

Safety light barriers

Inverter for adjustable stroke speeds

Die cushion

Quick die change device

Automatic coil feeding machines

Manipulator

Tonnage monitor
