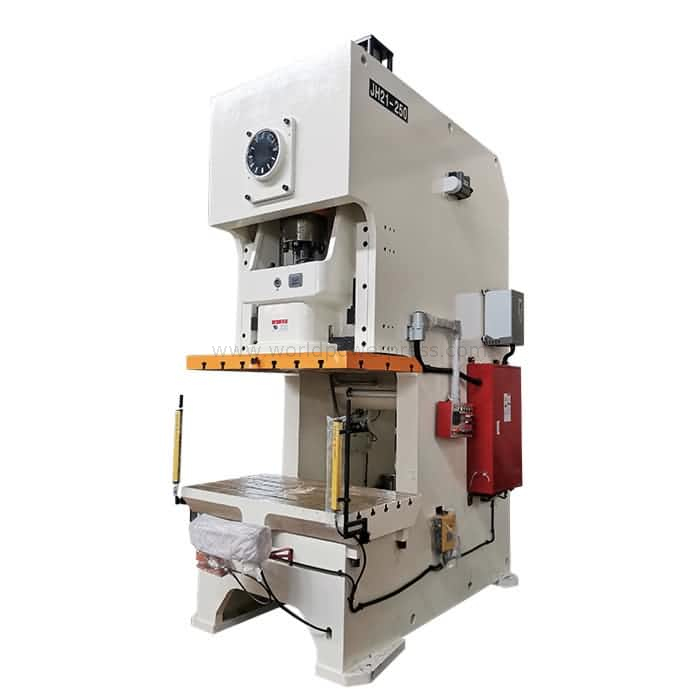

250 Ton C Frame Press Machine for Auto Parts Stampimg

JH21-250 is a c frame 250t press for auto parts stamping. This eccentric press is widely used fo r auto parts and other stamping parts production. The c frame press can work with servo roller feeder and decoiler system to act as an automatic stamping press line. The press can work as inches, single strokes and continuous strokes. It is easy to match the die with the motorized slide adjustment system and a digital shut height indicator.
Availability:
Quantity:
Inquire Add to Basket

  • JH21-250

  • WORLD

250 ton C frame auto parts stamping press machine features:

-C frame steel-plate welded body, high rigidity and strength

-Rectangular type six-faces ram guides, high precision

-PLC control with HMI

-Hydraulic overload protected

-Pneumatic clutch and brake, oil-bath wet type, low noise and easy maintenance


Model: JH21-250

Nominal press capacity: 250ton

Stroke length: 220mm

Stroke speed: 30spm

Max. Shut height: 500mm

Shut height adjustment: 120mm

Lower bolster size: 1500x880mm

Slide plate size: 950x700mm

Motor power: 22kw

Press gross weight: 23200kg

JH21-1ST PAGEJH21-DETAILS-1JH21-ADVANTAGEJH21-OPTIONS
