NCF
WORLD

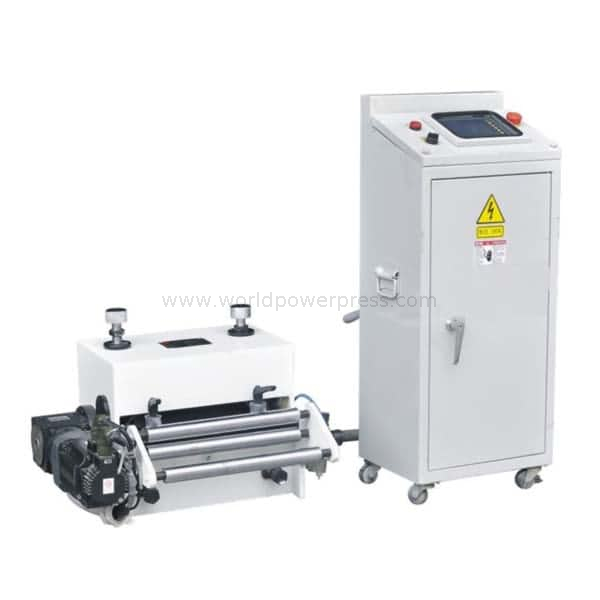

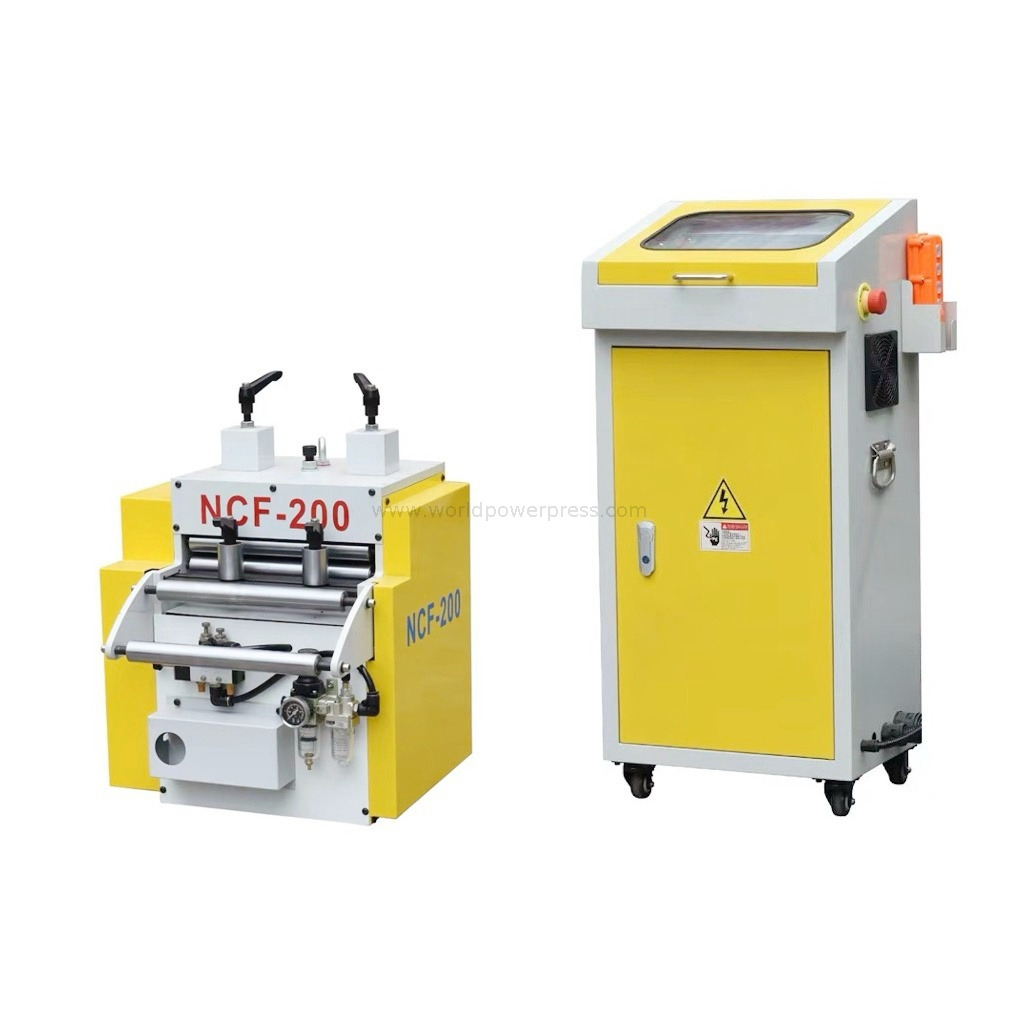

Press roll feeder is an automatic accessory for press stamping line. The feeder can be customized to feed coil thickness up to 4.5mm. Feeding width can achieve 2000mm. PLC control, with servo motor. Separate control electric cabinet. HMI with LCD touch screen.
| Model No | NCF-100 | NCF-200 | NCF-300 | NCF-400 | NCF-500 | NCF-600 | NCF-700 | NCF-800 |
| Material thickness | 0.2-2.2mm | |||||||
| Material width | 100mm | 200mm | 300mm | 400mm | 500mm | 600mm | 700mm | 800mm |
| Max. feeding length | 9999mm | |||||||
| Feeding speed | 20m/min | |||||||
| PLC | MITSUBISHI | |||||||
| Servo motor | YASKAWA | |||||||
| Release type | Mechanical | Mechanical/pneumatic | pneumatic | |||||
| Model No | NCF-100 | NCF-200 | NCF-300 | NCF-400 | NCF-500 | NCF-600 | NCF-700 | NCF-800 | NCF-1000 |
| Material thickness | 0.2-3.2mm | ||||||||
| Material width | 100mm | 200mm | 300mm | 400mm | 500mm | 600mm | 700mm | 800mm | 1000mm |
| Max. feeding length | 9999mm | ||||||||
| Feeding speed | 20m/min | ||||||||
| PLC | MITSUBISHI | ||||||||
| Servo motor | YASKAWA | ||||||||
| Release type | Mechanical | Mechanical/pneumatic | pneumatic | ||||||
| Model No | NCF-100 | NCF-200 | NCF-300 | NCF-400 | NCF-500 | NCF-600 | NCF-700 | NCF-800 |
| Material thickness | 0.2-4.5mm | |||||||
| Material width | 100mm | 200mm | 300mm | 400mm | 500mm | 600mm | 700mm | 800mm |
| Max. feeding length | 9999mm | |||||||
| Feeding speed | 20m/min | |||||||
| PLC | MITSUBISHI | |||||||
| Servo motor | YASKAWA | |||||||
| Release type | Mechanical | Mechanical/pneumatic | pneumatic | |||||
Press roll feeder is an automatic accessory for press stamping line. The feeder can be customized to feed coil thickness up to 4.5mm. Feeding width can achieve 2000mm. PLC control, with servo motor. Separate control electric cabinet. HMI with LCD touch screen.
| Model No | NCF-100 | NCF-200 | NCF-300 | NCF-400 | NCF-500 | NCF-600 | NCF-700 | NCF-800 |
| Material thickness | 0.2-2.2mm | |||||||
| Material width | 100mm | 200mm | 300mm | 400mm | 500mm | 600mm | 700mm | 800mm |
| Max. feeding length | 9999mm | |||||||
| Feeding speed | 20m/min | |||||||
| PLC | MITSUBISHI | |||||||
| Servo motor | YASKAWA | |||||||
| Release type | Mechanical | Mechanical/pneumatic | pneumatic | |||||
| Model No | NCF-100 | NCF-200 | NCF-300 | NCF-400 | NCF-500 | NCF-600 | NCF-700 | NCF-800 | NCF-1000 |
| Material thickness | 0.2-3.2mm | ||||||||
| Material width | 100mm | 200mm | 300mm | 400mm | 500mm | 600mm | 700mm | 800mm | 1000mm |
| Max. feeding length | 9999mm | ||||||||
| Feeding speed | 20m/min | ||||||||
| PLC | MITSUBISHI | ||||||||
| Servo motor | YASKAWA | ||||||||
| Release type | Mechanical | Mechanical/pneumatic | pneumatic | ||||||
| Model No | NCF-100 | NCF-200 | NCF-300 | NCF-400 | NCF-500 | NCF-600 | NCF-700 | NCF-800 |
| Material thickness | 0.2-4.5mm | |||||||
| Material width | 100mm | 200mm | 300mm | 400mm | 500mm | 600mm | 700mm | 800mm |
| Max. feeding length | 9999mm | |||||||
| Feeding speed | 20m/min | |||||||
| PLC | MITSUBISHI | |||||||
| Servo motor | YASKAWA | |||||||
| Release type | Mechanical | Mechanical/pneumatic | pneumatic | |||||
