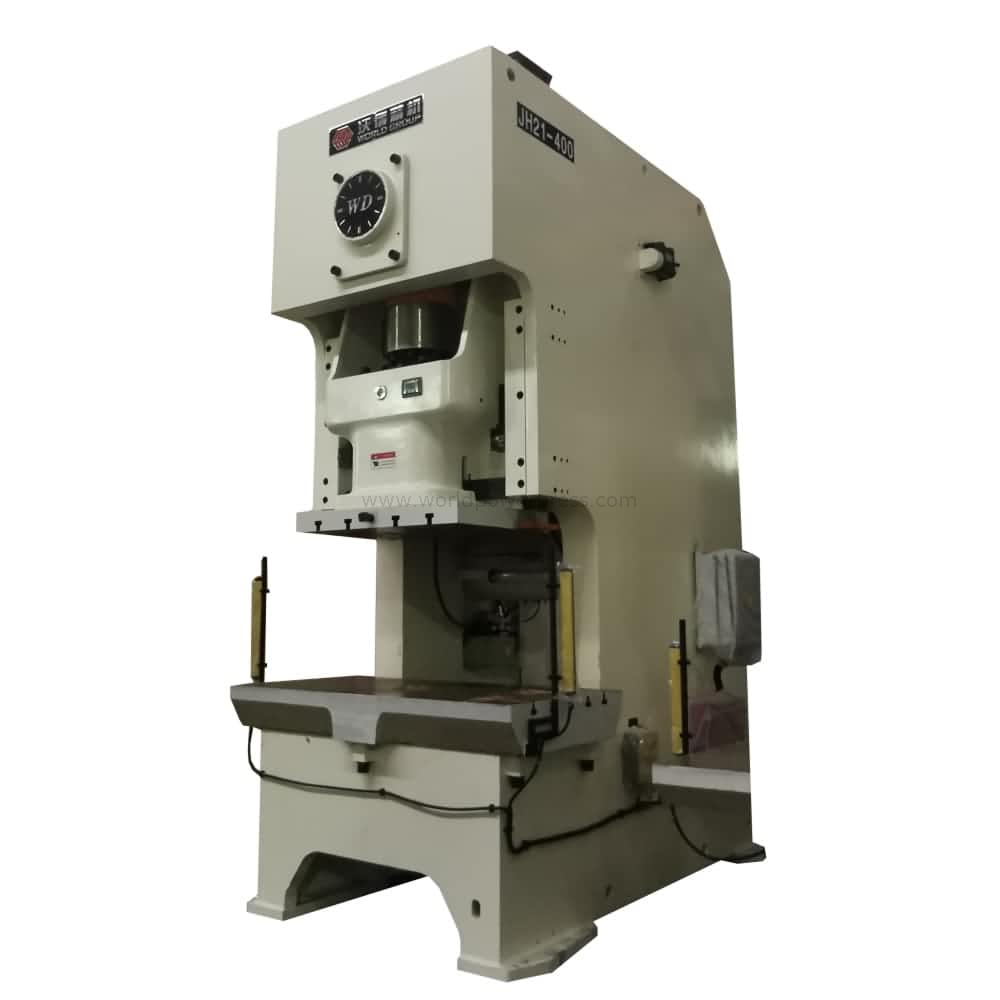

JH21-400 is a single crank type c frame automatic press machine. It can work with strip uncoiling system and feeding machine for automatic stamping process. The table size is big and it is suitable for progressive die stamping too. The body is steel welded type. The strength is enough due to the optical design and annealing treatment fo the welded structure. The 400ton automatic press machine adopts wet type pneumatic clutch, hydraulic overload protection system, automatic central lubrication system. Optional accessories such as light barriers, motor frequency drive, die cushion, die quick change device are all available.
-Gap-frame body, steel welded, temperature treatment and sand blasting
-PLC central control, HMI with monitor function
-Six faces slide guides with long bronze plates, high precision
-Combined pneumatic clutch and brake, oil-bath lubrication, with safety solenoid valve
-CE certificate
400ton c fame crank press features:
-Optimized structure, compact and strong
-Gap-frame body, steel welded, temperature treatment and sand blasting
-PLC central control, HMI with monitor function
-Six faces slide guides with long bronze plates, high precision
-Combined pneumatic clutch and brake, oil-bath lubrication, with safety solenoid valve
-CE certificate
Model
JH21-400
Nominal Tonnage
8mm
Stroke Length
180mm
Stroke Speed
30-50times/min
Max. Shut Height
585mm
Slide Adjustment
120mm
Throat Depth
450mm
Bolster Size
1700mm x 880mm
Slide Area
1020mm x 750mm
Motor Power
37kW
Dimensions
2850mm x 1750mm x 4140mm
Air Pressure
0.5Mpa
{"type":"2","json":[{"index":"0","tran_value":["JH21-400"],"tran_label":"Model"},{"index":"1","tran_label":"Nominal Tonnage","tran_value":["8mm"]},{"index":"2","tran_label":"Stroke Length","tran_value":["180mm"]},{"index":"4","tran_label":"Stroke Speed","tran_value":["30-50times/min"]},{"index":"5","tran_label":"Max. Shut Height","tran_value":["585mm"]},{"index":"6","tran_label":"Slide Adjustment","tran_value":["120mm"]},{"index":"7","tran_label":"Throat Depth","tran_value":["450mm"]},{"index":"8","tran_label":"Bolster Size","tran_value":["1700mm x 880mm"]},{"index":"10","tran_label":"Slide Area","tran_value":["1020mm x 750mm"]},{"index":"11","tran_label":"Motor Power","tran_value":["37kW"]},{"index":"12","tran_label":"Dimensions","tran_value":["2850mm x 1750mm x 4140mm"]},{"index":"13","tran_label":"Air Pressure","tran_value":["0.5Mpa"]}]}
