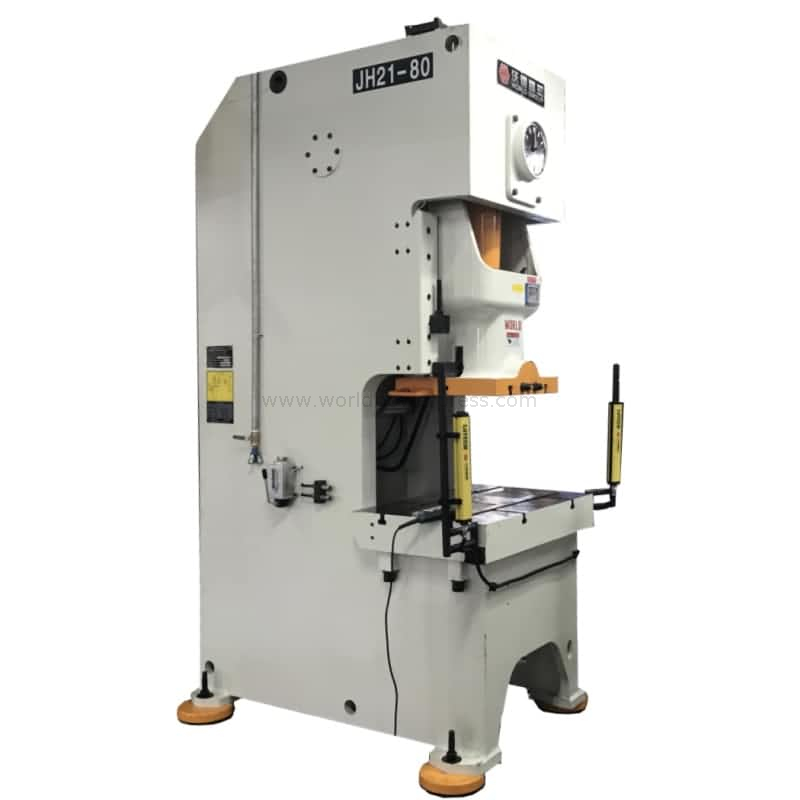

JH21-80
WORLD
-Schenider or Omron PLC control, HMI with touch screen
-Automatic grease lubrication, lub-frequency could be set throught HMI
-Hydraulic overload protection system
-Wet type pneumatic clutch, easy maintenance
Tonnage: 80ton
Rated tonnage point: 5mm
Stroke length: 160mm
Stroke speeds: 60spm as standard and 40-75spm adjustable as optional
Max. Shut height: 320mm
Shut height adjustment: 80mm
Working table size: 950x600mm
Ram plate size: 540x460mm
Main motor power: 7.5kw, 380V50HZ3Phase
Press gross weight: 6450kg
-Schenider or Omron PLC control, HMI with touch screen
-Automatic grease lubrication, lub-frequency could be set throught HMI
-Hydraulic overload protection system
-Wet type pneumatic clutch, easy maintenance
Tonnage: 80ton
Rated tonnage point: 5mm
Stroke length: 160mm
Stroke speeds: 60spm as standard and 40-75spm adjustable as optional
Max. Shut height: 320mm
Shut height adjustment: 80mm
Working table size: 950x600mm
Ram plate size: 540x460mm
Main motor power: 7.5kw, 380V50HZ3Phase
Press gross weight: 6450kg
