JH21-125
WORLD
Nominal capcity: 125ton
Stroke length: 180mm
Stroke speed: 50spm, and 35-60spm adjustable as optional
Bolster size: 1100x680mm
Ram bottom size: 620x520mm
Shut height: 260-350mm
Motor power: 11kw
Machine weight: 9550kg
Overload protection: hydraulic overload pump
Slide adjustment: brake motor
Lubrication: automatic grease pump

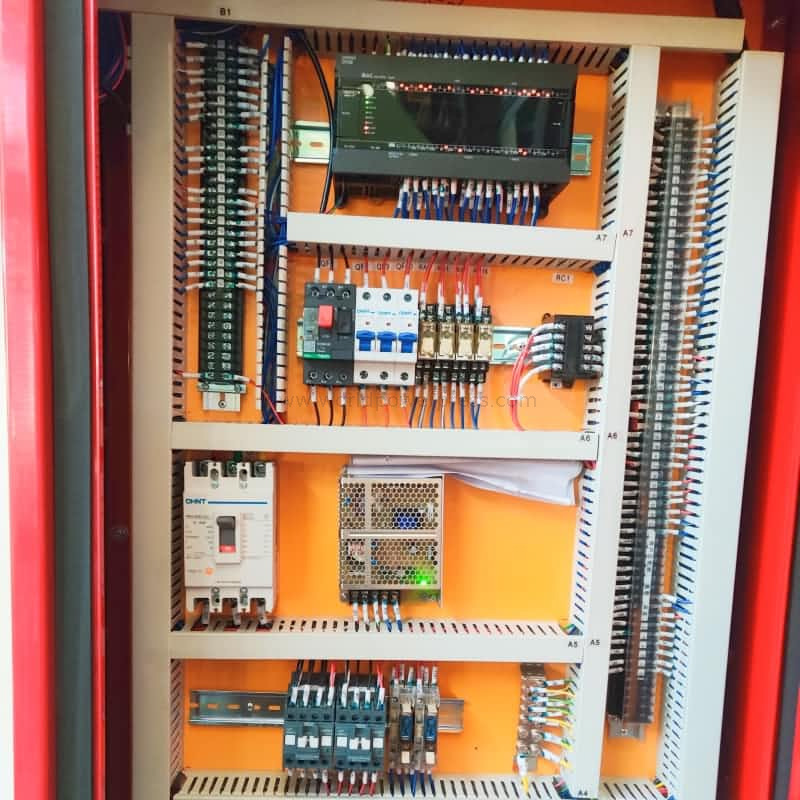

-PLC (Omron/Schneider/Siemens/Delta)

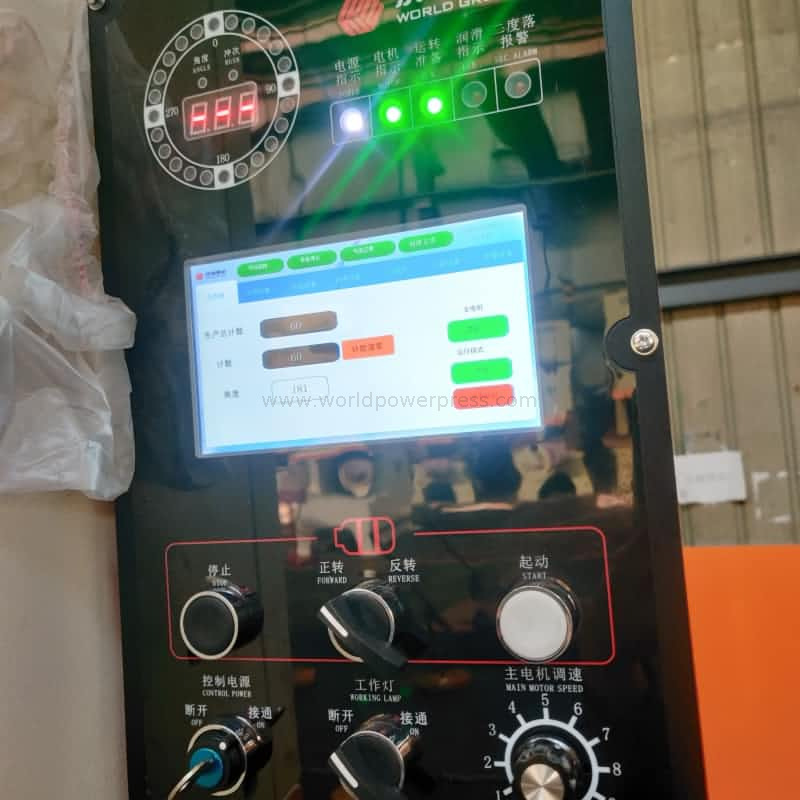

-HMI (Kinco/Siemens/Delta)
-Overload pump (made by world/Showa)
-Dual-safety valve for clutch (made by World/Toyooki)

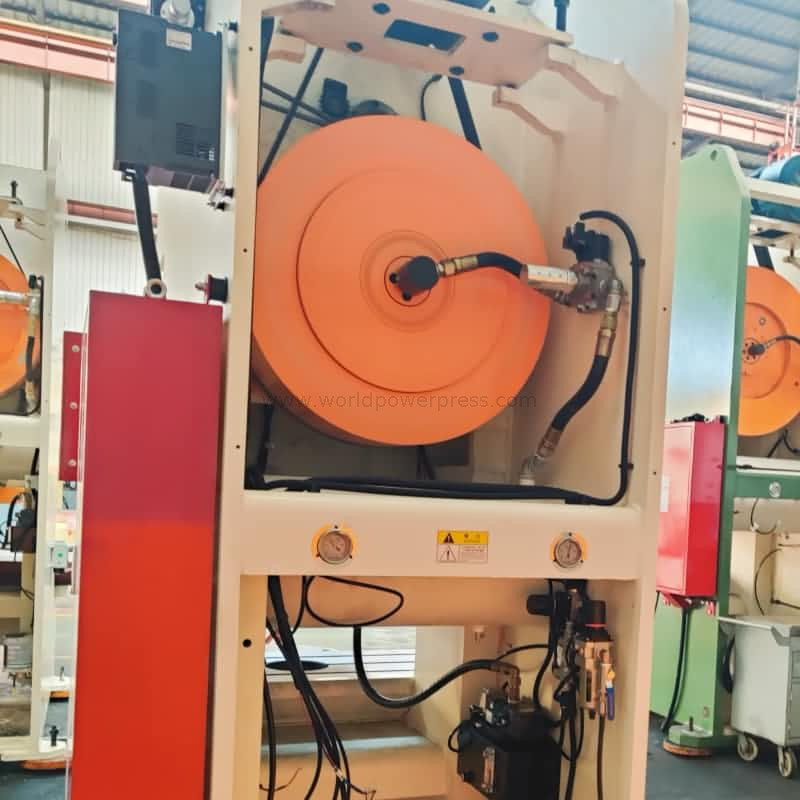

-Clutch and brake (made by world)
-Low voltage electric parts (Schneider/Chinese famous brand)
-Grease pump (NF/Chinese famous brand)
-Die cushion
-Photocell light barriers for safety
-Inverter (motor frequency drive) for adjustable stroke speeds
-Servo feeder
-Uncoiler and straightener
-Die clamps and die lifters
-Press colors
-Power voltage 220V/415V/440V/480V/600V
-Stroke length (maximum 300mm)
-Die shut height
-Table size and slide area
Shipment information:
-Package type: steel pallet
-Package size: 3300x1500x2250mm
-Net/Gross weight: 8700/9000kg
| ITEM | CODE | UNIT | JH21-125 | |
| Nominal Capacity | Pe | KN | 1250 | |
| Slide Stroke Length | S | mm | 180 | |
| Slide Strokes | Fixed | spm | 50 | |
| Variable (optional) | spm | 35-60 | ||
| Max. Shut Height | H2 | mm | 350 | |
| Shut Height Adjustment | t | mm | 90 | |
| Throat Depth | C1 | mm | 350 | |
| Distance Between Columns | d1 | mm | 630 | |
| Slide Bottom Size | F-B | b | mm | 520 |
| L-R | a | mm | 620 | |
| Shank Hole Size | Diameter | d | mm | 70 |
| Depth | I | mm | 80 | |
| Table Size | F-B | D | mm | 680 |
| L-R | C | mm | 1100 | |
| Thickness | H3 | mm | 155 | |
| Table Hole Diameter | ¢ | mm | 200 | |
| Overall Dimensions | F-B | A | mm | 2040 |
| L-R | B | mm | 1320 | |
| Height | H | mm | 3035 | |
| Motor Power | KW | 11 | ||
| Weight (approximate) | kg | 8700 | ||
Nominal capcity: 125ton
Stroke length: 180mm
Stroke speed: 50spm, and 35-60spm adjustable as optional
Bolster size: 1100x680mm
Ram bottom size: 620x520mm
Shut height: 260-350mm
Motor power: 11kw
Machine weight: 9550kg
Overload protection: hydraulic overload pump
Slide adjustment: brake motor
Lubrication: automatic grease pump
-PLC (Omron/Schneider/Siemens/Delta)
-HMI (Kinco/Siemens/Delta)
-Overload pump (made by world/Showa)
-Dual-safety valve for clutch (made by World/Toyooki)
-Clutch and brake (made by world)
-Low voltage electric parts (Schneider/Chinese famous brand)
-Grease pump (NF/Chinese famous brand)
-Die cushion
-Photocell light barriers for safety
-Inverter (motor frequency drive) for adjustable stroke speeds
-Servo feeder
-Uncoiler and straightener
-Die clamps and die lifters
-Press colors
-Power voltage 220V/415V/440V/480V/600V
-Stroke length (maximum 300mm)
-Die shut height
-Table size and slide area
Shipment information:
-Package type: steel pallet
-Package size: 3300x1500x2250mm
-Net/Gross weight: 8700/9000kg
| ITEM | CODE | UNIT | JH21-125 | |
| Nominal Capacity | Pe | KN | 1250 | |
| Slide Stroke Length | S | mm | 180 | |
| Slide Strokes | Fixed | spm | 50 | |
| Variable (optional) | spm | 35-60 | ||
| Max. Shut Height | H2 | mm | 350 | |
| Shut Height Adjustment | t | mm | 90 | |
| Throat Depth | C1 | mm | 350 | |
| Distance Between Columns | d1 | mm | 630 | |
| Slide Bottom Size | F-B | b | mm | 520 |
| L-R | a | mm | 620 | |
| Shank Hole Size | Diameter | d | mm | 70 |
| Depth | I | mm | 80 | |
| Table Size | F-B | D | mm | 680 |
| L-R | C | mm | 1100 | |
| Thickness | H3 | mm | 155 | |
| Table Hole Diameter | ¢ | mm | 200 | |
| Overall Dimensions | F-B | A | mm | 2040 |
| L-R | B | mm | 1320 | |
| Height | H | mm | 3035 | |
| Motor Power | KW | 11 | ||
| Weight (approximate) | kg | 8700 | ||
