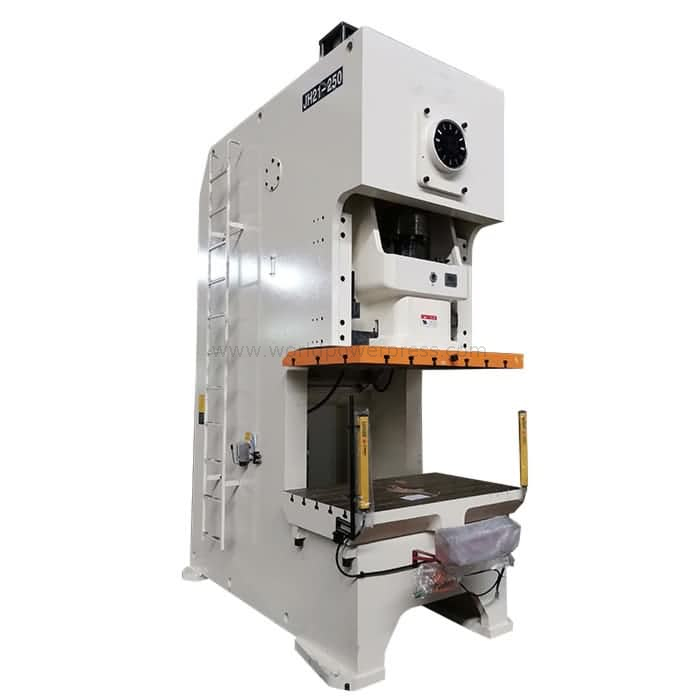

JH21-250
High rigidity c frame steel welded body
Flywheel with pneumatic clutch and brake
Cross located crankshaft, compact size
Die shut height adjustable by flat motor
Low working noise less than 80db
Specifications are customizable
Fast delivery time average within 30 days
Global stand low voltage electric parts
Quality guarranty and service available
| ITEM | CODE | UNIT | JH21-250 | |
| Nominal Capacity | Pe | KN | 2500 | |
| Tonnage Point | mm | 6.5 | ||
| Slide Stroke Length | S | mm | 220 | |
| Slide Strokes | Fixed | spm | 30 | |
| Variable (optional) | spm | 20-30 | ||
| Max. Shut Height | H2 | mm | 500 | |
| Shut Height Adjustment | t | mm | 120 | |
| Throat Depth | C1 | mm | 450 | |
| Distance Between Columns | d1 | mm | 980 | |
| Slide Bottom Size | F-B | b | mm | 700 |
| L-R | a | mm | 950 | |
| Shank Hole Size | Diameter | d | mm | 70 |
| Depth | I | mm | 100 | |
| Table Size | F-B | D | mm | 880 |
| L-R | C | mm | 1500 | |
| Thickness | H3 | mm | 190 | |
| Table Hole Diameter | ¢ | mm | 240 | |
| Overall Dimensions | F-B | A | mm | 2660 |
| L-R | B | mm | 1640 | |
| Height | H | mm | 3865 | |
| Motor Power | KW | 22 | ||
| Weight (approximate) | kg | 23200 | ||
