JH21-160
WORLD

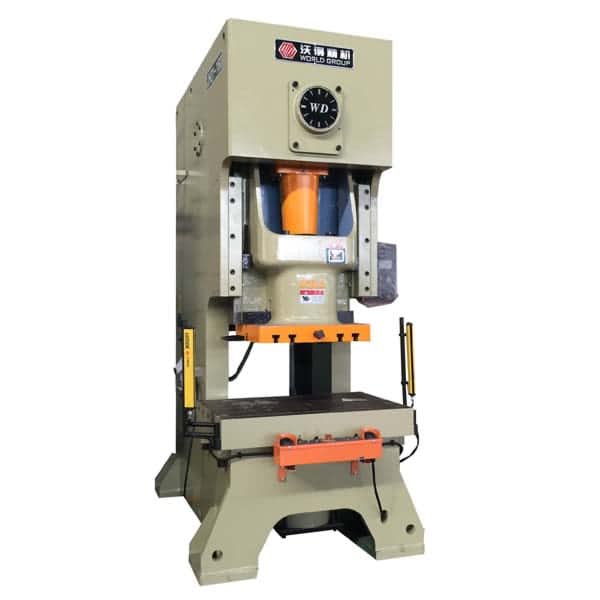

JH21-160 is a 160ton power eccentric press machine. It adopts pneumatic clutch and brake. More safe for operation. Press machine can work as inches for mold adjusting. Press machine can work as single stroke for manual operation. Press machine can work as continuous strokes together with automatic accessories. For example, servo roller feeder, transfer arms.
-Panasonic brand PLC and Kinco HMI
-Pneumatic clutch and brake, WORLD patent design
-Hydraulic overload protection system
-Slide adjust flat motor
-Automatic central control grease lubricant system
-Both two-hand-button control and foot pedal control
-Anti-vibraton mounting pads
-frequency inverter for adjustable stroke speeds
-safety light barriers
-piston type pneumatic cushion under the bolster
-metal strip uncoiling machine and feeding machine
-die safety block
-die quick change device
| ITEM | CODE | UNIT | JH21-160 | |
| Nominal Capacity | Pe | KN | 1600 | |
| Tonnage Point | mm | 6 | ||
| Slide Stroke Length | S | mm | 200 | |
| Slide Strokes | Fixed | spm | 45 | |
| Variable (optional) | spm | 30-45 | ||
| Max. Shut Height | H2 | mm | 400 | |
| Shut Height Adjustment | t | mm | 100 | |
| Throat Depth | C1 | mm | 400 | |
| Distance Between Columns | d1 | mm | 676 | |
| Slide Bottom Size | F-B | b | mm | 580 |
| L-R | a | mm | 700 | |
| Shank Hole Size | Diameter | d | mm | 70 |
| Depth | I | mm | 100 | |
| Table Size | F-B | D | mm | 760 |
| L-R | C | mm | 1175 | |
| Thickness | H3 | mm | 165 | |
| Table Hole Diameter | ¢ | mm | 220 | |
| Overall Dimensions | F-B | A | mm | 2305 |
| L-R | B | mm | 1420 | |
| Height | H | mm | 3215 | |
| Motor Power | KW | 15 | ||
| Weight (approximate) | kg | 13600 | ||
JH21-160 is a 160ton power eccentric press machine. It adopts pneumatic clutch and brake. More safe for operation. Press machine can work as inches for mold adjusting. Press machine can work as single stroke for manual operation. Press machine can work as continuous strokes together with automatic accessories. For example, servo roller feeder, transfer arms.
-Panasonic brand PLC and Kinco HMI
-Pneumatic clutch and brake, WORLD patent design
-Hydraulic overload protection system
-Slide adjust flat motor
-Automatic central control grease lubricant system
-Both two-hand-button control and foot pedal control
-Anti-vibraton mounting pads
-frequency inverter for adjustable stroke speeds
-safety light barriers
-piston type pneumatic cushion under the bolster
-metal strip uncoiling machine and feeding machine
-die safety block
-die quick change device
| ITEM | CODE | UNIT | JH21-160 | |
| Nominal Capacity | Pe | KN | 1600 | |
| Tonnage Point | mm | 6 | ||
| Slide Stroke Length | S | mm | 200 | |
| Slide Strokes | Fixed | spm | 45 | |
| Variable (optional) | spm | 30-45 | ||
| Max. Shut Height | H2 | mm | 400 | |
| Shut Height Adjustment | t | mm | 100 | |
| Throat Depth | C1 | mm | 400 | |
| Distance Between Columns | d1 | mm | 676 | |
| Slide Bottom Size | F-B | b | mm | 580 |
| L-R | a | mm | 700 | |
| Shank Hole Size | Diameter | d | mm | 70 |
| Depth | I | mm | 100 | |
| Table Size | F-B | D | mm | 760 |
| L-R | C | mm | 1175 | |
| Thickness | H3 | mm | 165 | |
| Table Hole Diameter | ¢ | mm | 220 | |
| Overall Dimensions | F-B | A | mm | 2305 |
| L-R | B | mm | 1420 | |
| Height | H | mm | 3215 | |
| Motor Power | KW | 15 | ||
| Weight (approximate) | kg | 13600 | ||
