| Quantity: | |
|---|---|

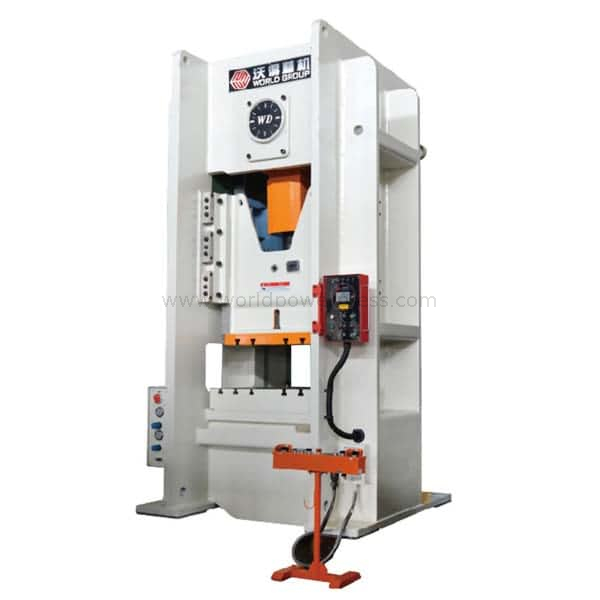

JW31-160
WORLD
-Wet type pneumatic clutch and brake, fricition discs are oil bath inside the flywheel.
-Safety solienoid valve to control the clutch
-Mechanical cam controller with rotary encoder
-With anti-vibration mounting pads
PLC control
HMI with touch screen (English version)
Movable electric cabinet
Movable T-stand control button
Overload protection system
Grease central lubrication system
Pneumatic clutch and brake
Dual safety solenoid valve for clutch
Slide height adjust motor with height indicator (precision 0.1mm)
Anti-vibration pads (4pcs)
Safety light curtain
Inverter for adjustable stroke speeds
Tonnage monitor
Quick die change device (die clamps, die lifters)
Servo feeder for coil feeding
Uncoiler and straightener
3 in 1 compact feeder
Die cushion
Servo system instead of clutch (servo motor direct drive)
Package type: steel pallet
Loading: one unit in a 20ft open top container
HS Code: 84626290
| ITEM | CODE | UNIT | JW31-160 | |
| Nominal Capacity | Pe | KN | 1600 | |
| Slide Stroke | s | mm | 180 | |
| Slide Stroke Speed | Fixed | n | spm | 45 |
| Variable (optional) | n | spm | 25-50 | |
| Max.Die Shut Height | H2 | mm | 400 | |
| Die Shut Height Adjustment | t | mm | 110 | |
| Side Window Size | F-B | E | mm | 650 |
| Height | F | mm | 350 | |
| Distance Between Uprights | G | mm | 1100 | |
| Table Size | F-B | D | mm | 650 |
| L-R | C | mm | 1000 | |
| Thickness | H3 | mm | 165 | |
| Table Hole Diameter | mm | 180 | ||
| Slide Bottom Size | F-B | b | mm | 600 |
| L-R | a | mm | 750 | |
| Table Surface Height | H1 | mm | 900 | |
| Overall Dimensions | F-B | A | mm | 2300 |
| L-R | B | mm | 1820 | |
| Height | H | mm | 3710 | |
| Motor Power | KW | 15 | ||
| Weight (approximate) | kg | 16000 | ||
-Wet type pneumatic clutch and brake, fricition discs are oil bath inside the flywheel.
-Safety solienoid valve to control the clutch
-Mechanical cam controller with rotary encoder
-With anti-vibration mounting pads
PLC control
HMI with touch screen (English version)
Movable electric cabinet
Movable T-stand control button
Overload protection system
Grease central lubrication system
Pneumatic clutch and brake
Dual safety solenoid valve for clutch
Slide height adjust motor with height indicator (precision 0.1mm)
Anti-vibration pads (4pcs)
Safety light curtain
Inverter for adjustable stroke speeds
Tonnage monitor
Quick die change device (die clamps, die lifters)
Servo feeder for coil feeding
Uncoiler and straightener
3 in 1 compact feeder
Die cushion
Servo system instead of clutch (servo motor direct drive)
Package type: steel pallet
Loading: one unit in a 20ft open top container
HS Code: 84626290
| ITEM | CODE | UNIT | JW31-160 | |
| Nominal Capacity | Pe | KN | 1600 | |
| Slide Stroke | s | mm | 180 | |
| Slide Stroke Speed | Fixed | n | spm | 45 |
| Variable (optional) | n | spm | 25-50 | |
| Max.Die Shut Height | H2 | mm | 400 | |
| Die Shut Height Adjustment | t | mm | 110 | |
| Side Window Size | F-B | E | mm | 650 |
| Height | F | mm | 350 | |
| Distance Between Uprights | G | mm | 1100 | |
| Table Size | F-B | D | mm | 650 |
| L-R | C | mm | 1000 | |
| Thickness | H3 | mm | 165 | |
| Table Hole Diameter | mm | 180 | ||
| Slide Bottom Size | F-B | b | mm | 600 |
| L-R | a | mm | 750 | |
| Table Surface Height | H1 | mm | 900 | |
| Overall Dimensions | F-B | A | mm | 2300 |
| L-R | B | mm | 1820 | |
| Height | H | mm | 3710 | |
| Motor Power | KW | 15 | ||
| Weight (approximate) | kg | 16000 | ||
