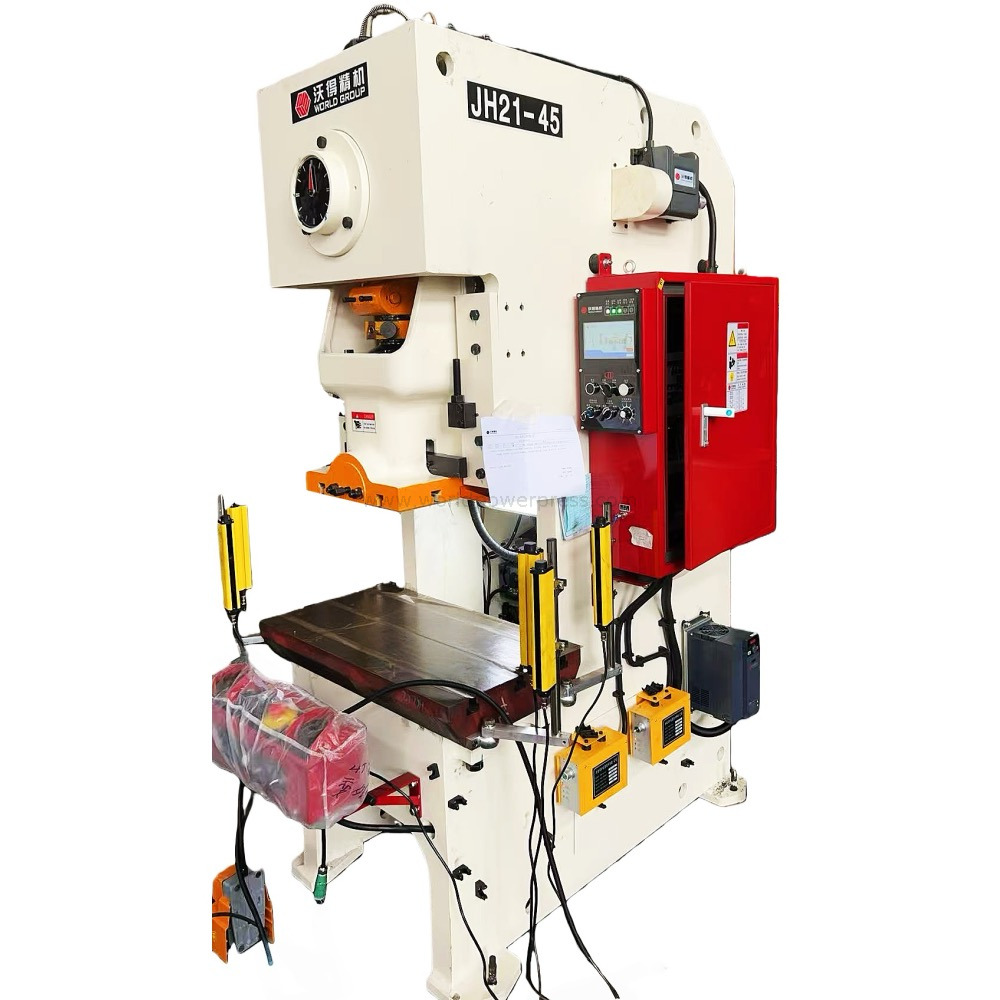

JH21-45
WORLD
- with pneumatic clutch and brake, more safe
- oil bath type clutch, lower noise, easier maintenance
- steel welded body, high rigidness
- customized specifications, such as stroke length, die set height and table size
| ITEM | CODE | UNIT | JH21-45 | |
| Nominal Capacity | Pe | KN | 450 | |
| Slide Stroke Length | S | mm | 120 | |
| Slide Strokes | Fixed | spm | 80 | |
| Variable (optional) | spm | 50-95 | ||
| Max. Shut Height | H2 | mm | 270 | |
| Shut Height Adjustment | t | mm | 60 | |
| Throat Depth | C1 | mm | 225 | |
| Distance Between Columns | d1 | mm | 525 | |
| Slide Bottom Size | F-B | b | mm | 340 |
| L-R | a | mm | 400 | |
| Shank Hole Size | Diameter | d | mm | 50 |
| Depth | I | mm | 60 | |
| Table Size | F-B | D | mm | 440 |
| L-R | C | mm | 825 | |
| Thickness | H3 | mm | 110 | |
| Table Hole Diameter | ¢ | mm | 150 | |
| Overall Dimensions | F-B | A | mm | 1585 |
| L-R | B | mm | 1075 | |
| Height | H | mm | 2390 | |
| Motor Power | KW | 5.5 | ||
| Weight (approximate) | kg | 3350 | ||
Combined pneumatic clutch and brake
Dual-safety solenoid valve for clutch
PLC control
HMI with touch screen
Rotary encoder with cam controller
Manual slide height adjust device
Slide balance cylinder
Air-blow connector
Automatic grease lubricant pump and distributor
Anti-vibration pads
Overload protection pump
Over-run safety device
Die cushion
NC coil feeder and uncoiler
Safety light curtain
Inverter (motor speed drive)
- with pneumatic clutch and brake, more safe
- oil bath type clutch, lower noise, easier maintenance
- steel welded body, high rigidness
- customized specifications, such as stroke length, die set height and table size
| ITEM | CODE | UNIT | JH21-45 | |
| Nominal Capacity | Pe | KN | 450 | |
| Slide Stroke Length | S | mm | 120 | |
| Slide Strokes | Fixed | spm | 80 | |
| Variable (optional) | spm | 50-95 | ||
| Max. Shut Height | H2 | mm | 270 | |
| Shut Height Adjustment | t | mm | 60 | |
| Throat Depth | C1 | mm | 225 | |
| Distance Between Columns | d1 | mm | 525 | |
| Slide Bottom Size | F-B | b | mm | 340 |
| L-R | a | mm | 400 | |
| Shank Hole Size | Diameter | d | mm | 50 |
| Depth | I | mm | 60 | |
| Table Size | F-B | D | mm | 440 |
| L-R | C | mm | 825 | |
| Thickness | H3 | mm | 110 | |
| Table Hole Diameter | ¢ | mm | 150 | |
| Overall Dimensions | F-B | A | mm | 1585 |
| L-R | B | mm | 1075 | |
| Height | H | mm | 2390 | |
| Motor Power | KW | 5.5 | ||
| Weight (approximate) | kg | 3350 | ||
Combined pneumatic clutch and brake
Dual-safety solenoid valve for clutch
PLC control
HMI with touch screen
Rotary encoder with cam controller
Manual slide height adjust device
Slide balance cylinder
Air-blow connector
Automatic grease lubricant pump and distributor
Anti-vibration pads
Overload protection pump
Over-run safety device
Die cushion
NC coil feeder and uncoiler
Safety light curtain
Inverter (motor speed drive)
