Mechanical Type Automatic 100 Ton C Frame Power Press

Name: Mechanical Type Automatic 100 Ton C Frame Power Press
Brand: WORLD
Rating: 5.0 (33 reviews)

JH21-100 is a 100 ton small size gap frame press machine. It can work as inches, single stroke and continuous strokes. It has a wet type pneumatic clutch with safety solenoid valve. This press machine is hydraulic overload protected and automatic grease lubrication.

Availability:

Quantity:



Inquire Add to Basket

Model:
JH21-100
Brand:
WORLD

Product Description

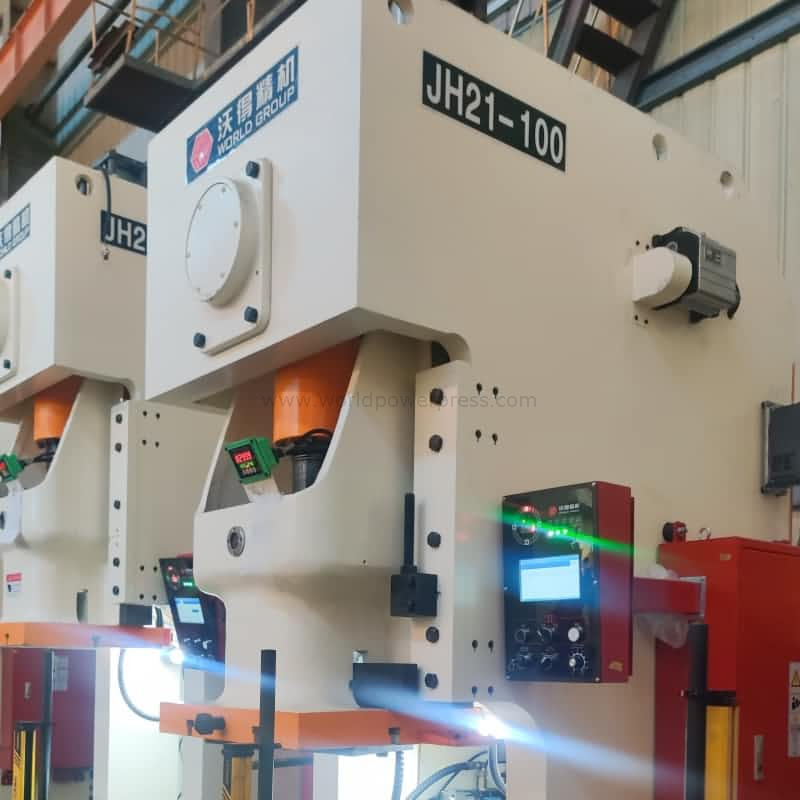

100 ton C frame power press

- single crankshaft, cross located

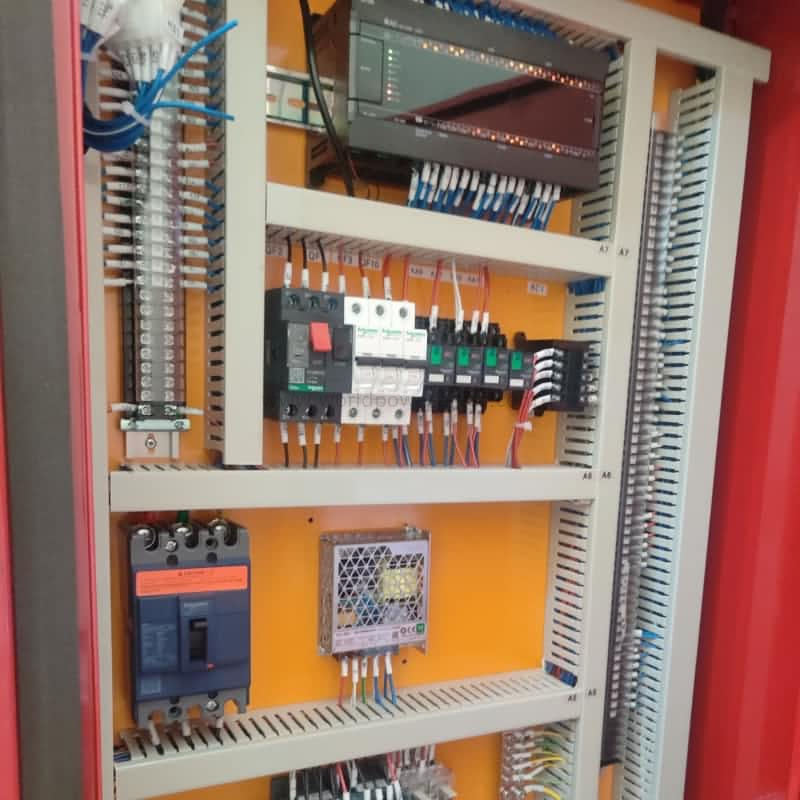

- PLC control

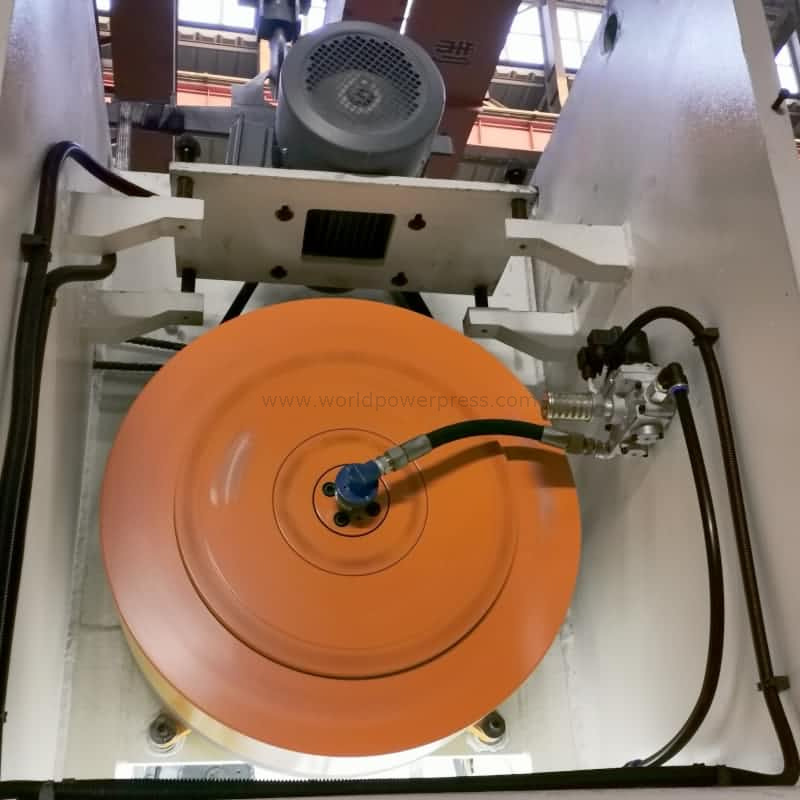

- pneumtaic clutch and brake

- hydraulic overload protection

- with mounting anti-vibration pads

100 ton mechanical power press specifications

ITEM		CODE	UNIT	JH21-100
Nominal Capacity		Pe	KN	1000
Slide Stroke Length		S	mm	160
Slide Strokes	Fixed		spm	55
Slide Strokes	Variable (optional)		spm	35-65
Max. Die Shut Height		H2	mm	335

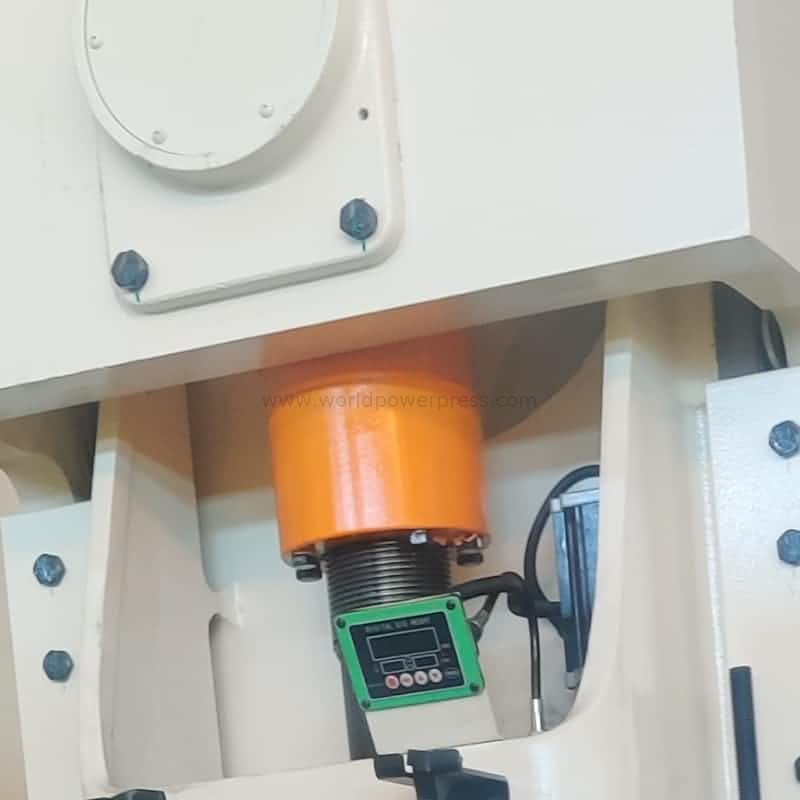

Die Shut Height Adjustment		t	mm	90
Throat Depth		C1	mm	330
Distance Between Uprights		d1	mm	670
Slide Bottom Size	FB	b	mm	520
Slide Bottom Size	LR	a	mm	620
Shank Hole Size	Diameter	d	mm	70
Shank Hole Size	Depth	I	mm	90
Table Size	FB	D	mm	640
	LR	C	mm	1060
	Thickness	H3	mm	145
Table Hole Diameter		¢	mm	180
Overall Dimensions	FB	A	mm	2000
	LR	B	mm	1300
	Height	H	mm	3010
Motor Power			KW	7.5
Weight (approximate)			kg	8650
