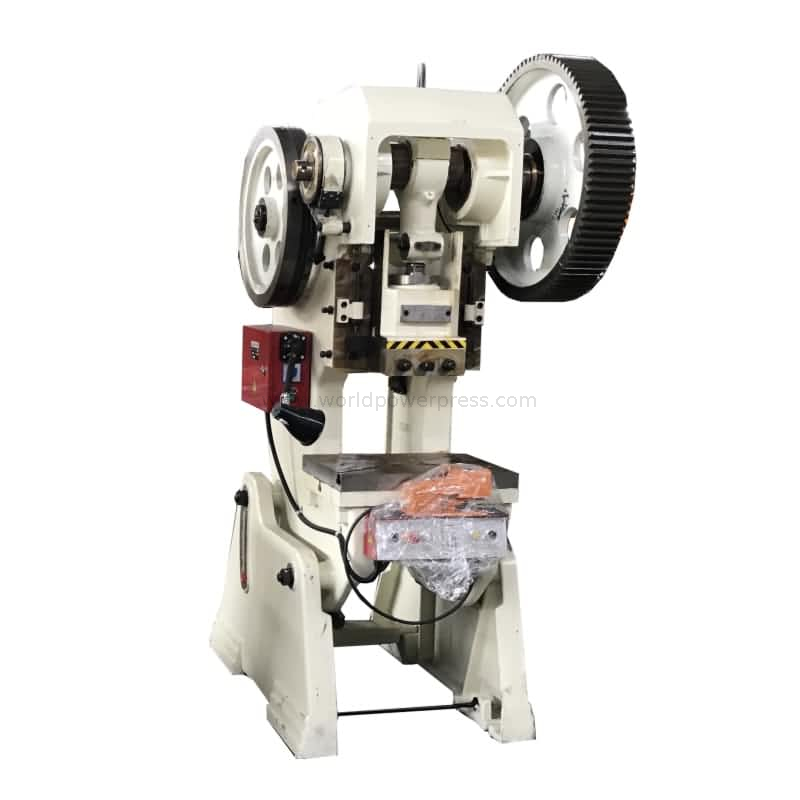

J23 Sereis Eccentric Mechanical Punching Machine

Name: J23 Sereis Eccentric Mechanical Punching Machine
Brand: WORLD
Rating: 5.0 (66 reviews)

J23 eccentric punching machine is a general type mechanical power press. Casting iron body with inclinable working table. Left to right located crankshaft, mechanical rigid rolling key clutch and band type brake, v type ram gibs, manual ram adjustment, shearing plate inside the ram for overload protection. This punching press has capacity from 6.3ton to 125ton. J23 mechanical press is suitable for small parts punching and hot forging as well.

Availability:

Quantity:



Inquire Add to Basket

Model:
J23
Brand:
WORLD

Main Features:

1) Inclinable table

2) Casting iron body

3) Gear with crankshaft transmission

4) Single stage and two stages transmission

5) Mechabical rigid clutch and brake

6) Shear plate inside the ram for overload protection

Casting iron body with heat treatment

The eccentric press adopts casting iron body. Two casting legs support the body, connected with two strong bolts. Body can be incliable for some angles for easy dropping the stamping parts and the scraps. World precise machinery produces the casting parts in his own factory. Grey iron casting with sand and resin.

6.3t-16t small press

25t-63t medium size press

big size eccentric press with slide balance cylinder

80t-125t press with balance cylinder

Mechanical rolling key type clutch

Small press is operated by foot pedal with mechanical control system, such as 6.3ton, 10ton and 16ton. Both foot pedal and two-hand button control are available for 25ton and bigger size punch presses.

Slide balance cylinder for 80ton and bigger sizes eccentric presses

Two slide balance cylinders on the top to balance the weight of press ram and the upper tool. Press can move more stable.

J23 eccentric press dimensions

ITEMS		UNIT	J23-6.3	J23-10	J23-16	J23-25	J23-35	J23-40
Capacity		KN	63	100	160	250	350	400
Nominal stroke		mm	2	2	2	2.5	3.5	6
Slide stroke length		mm	35	45	55	65	80	90
Stroke times per minute		spm	170	145	125	55	50	45
Max. Die set height		mm	150	180	220	270	290	320
Die shut height adjustment		mm	30	35	45	55	60	65
Throat depth		mm	110	130	160	200	220	250
Distance between uprights		mm	150	180	220	270	280	340
Slide bottom size	L-R	mm	140	170	200	250	250	300
Slide bottom size	F-B	mm	120	150	180	220	220	260
Stemhole size	Diameter	mm	30	30	40	40	40	50
Stemhole size	Depth	mm	55	55	60	60	60	70
Bolster size	L-R	mm	310	370	450	560	610	700
	F-B	mm	200	240	300	370	400	460
	Thickness	mm	30	35	40	50	60	65
Table hole diameter		mm	60	80	100	120	130	150
Max. inclinable angle		°	45	35	35	30	30	30
Bolster surface height		mm	750	730	750	800	815	850
Over all dimensions	L-R	mm	620	665	847	950	1058	1335
	F-B	mm	780	900	1150	1345	1460	1721
	Height	mm	1503	1658	1910	2130	2225	2488
Distance between foundation bolts	L-R	mm	314	394	450	600	650	750
Distance between foundation bolts	F-B	mm	530	610	780	920	1020	1060
Motor power		kw	0.75	1.1	1.5	2.2	4	5.5
Weight		kg	400	576	1085	1780	2650	3540

ITEMS		UNIT	J23-63	JB23-63	J23-80	J23-100	J23-125
Nominal capacity		KN	630	630	800	1000	1250
Nominal stroke		mm	6	7	7	7	8
Slide stroke length		mm	110	110	120	140	150
Stroke times per minute		times	50	40	38	38	38
Max. die set height		mm	360	390	440	480	500
Die height adjustment		mm	80	80	90	100	100
Throat depth		mm	260	310	350	380	390
Distance between uprights		mm	350	420	450	560	550
Slide bottom size	L-R	mm	300	400	430	540	540
Slide bottom size	F-B	mm	260	360	360	480	480
Stemhole size	Diameter	mm	50	50	60	60	60
Stemhole size	Depth	mm	70	70	75	75	75
Bolster size	L-R	mm	760	860	950	1080	1100
	F-B	mm	480	570	650	710	720
	Thickness	mm	80	80	100	120	130
Table hole diameter		mm	180	180	200	220	240
Max. inclinable angle		°	20	20	20	15	13
Bolster surface height		mm	810	850	850	850	860
Over all dimensions	L-R	mm	1350	1500	1715	1790	1790
	F-B	mm	1810	1958	2060	2404	2504
	Height	mm	2740	2868	3290	3625	3715
Distance between foundation bolts	L-R	mm	850	920	1010	1130	1110
Distance between foundation bolts	F-B	mm	1180	1300	1360	1550	1710
Motor power		kw	5.5	7.5	7.5	11	11
Weight		kg	4550	5500	7390	10800	12035
