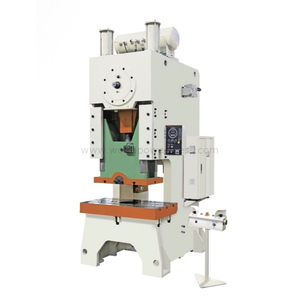

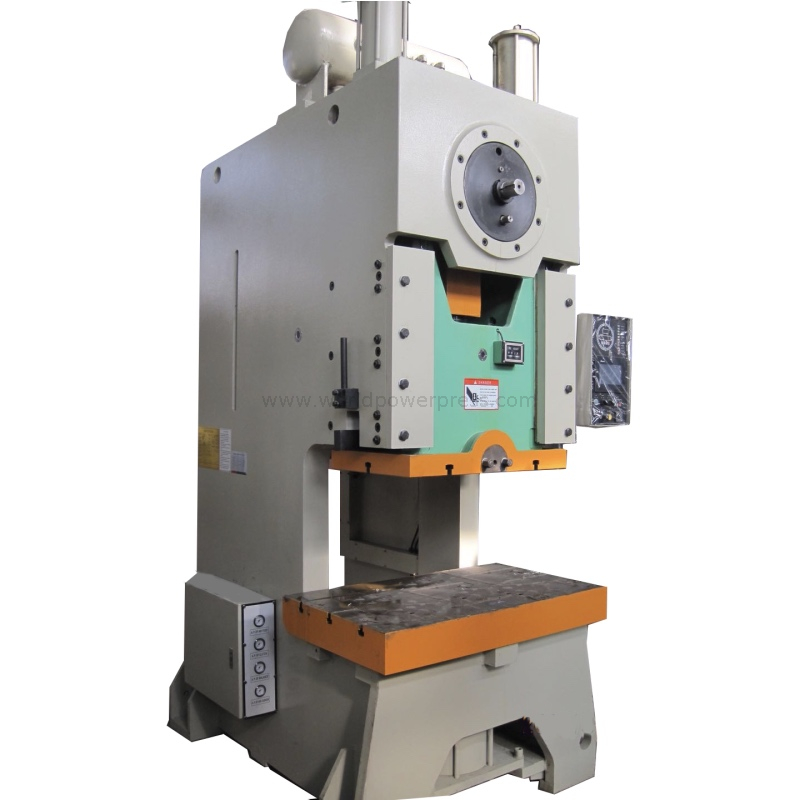

JH21-200L
-stroke length variable: 18mm, 50mm, 91mm, 128mm, 156mm, 174mm and 180mm
-C frame steel welded body

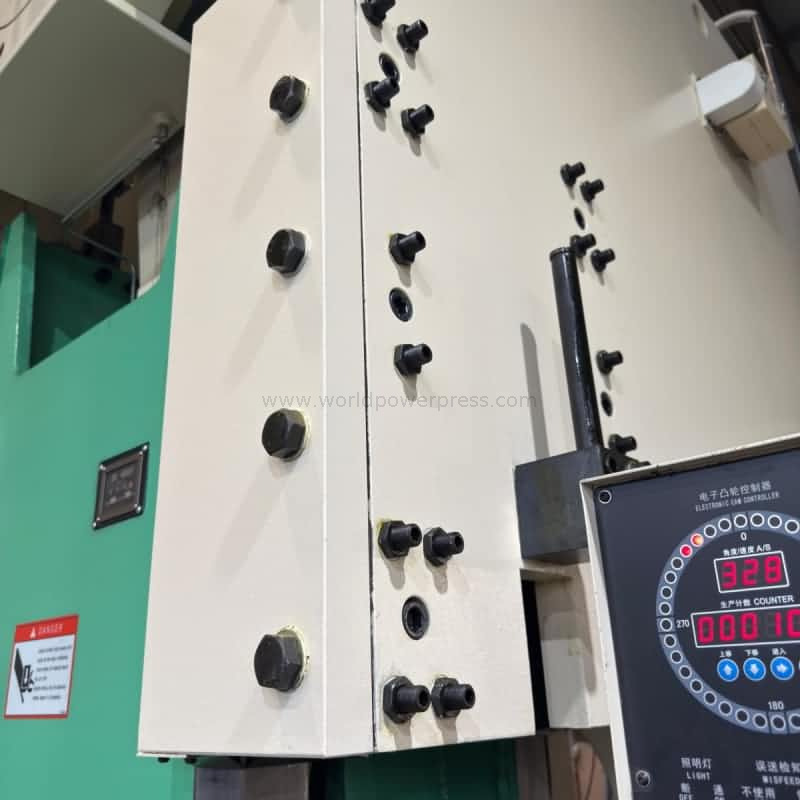

-8 faces slide guide rails for higher precision
-PLC control with electric cam controller
-PLC control (Delta/Mitsubishi)

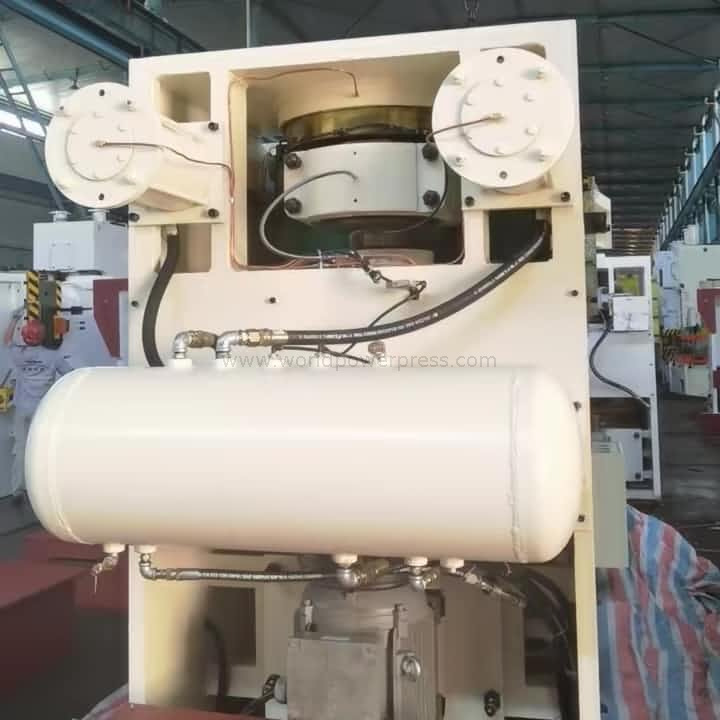

-Pneumatic clutch and brake (OMPI)
-Overload protection pump (Showa/King Air/Auto power)
-Safety solenoid valve for clutch (Azbil)
-Thin oil lubricate pump
-Two-hand-button control panel with foot pedal
-Anti-vibration pads
-Inverter for adjustable stroke speeds
-Front side safety light barriers
-Slide counterweight balance cylinder
-Slide height adjust motor with height indicator
-Cam controller
-Die cushion
-Hydraulic die clamps, die lifters
-Physical safety fence
| JH21-200L | ||||
| Capacity | kN | 2000 | ||
| Nominal Stroke | mm | 6 | ||
| Slide Stroke | mm | 18-180 | ||
| SPM | Fixed | min-1 | 35 | |
| Variable | min-1 | 30-40 | ||
| Max. Die Height | mm | 450 | ||
| Die Height Adjustment | mm | 110 | ||
| Throat Depth | mm | 390 | ||
| Between Columns | mm | 920 | ||
| Bolster | LR | mm | 1400 | |
| FB | mm | 760 | ||
| Thk | mm | 160 | ||
| Bolster Opening | mm | φ300×50 | ||
| (Up Hole Dia.×Dpth×Low Hole Dia.) | ×φ260 | |||
| Slide Area | LR | mm | 970 | |
| FB | mm | 600 | ||
| Shank Hole | Dia. | mm | φ65 | |
| Dpth | mm | 90 | ||
| Main Motor Power | kW | 18.5 | ||
| Dimensions | FB | mm | 2500 | |
| LR | mm | 1700 | ||
| H | mm | 4200 | ||
| Net Weight | kg | 17950 | ||
-stroke length variable: 18mm, 50mm, 91mm, 128mm, 156mm, 174mm and 180mm
-C frame steel welded body
-8 faces slide guide rails for higher precision
-PLC control with electric cam controller
-PLC control (Delta/Mitsubishi)
-Pneumatic clutch and brake (OMPI)
-Overload protection pump (Showa/King Air/Auto power)
-Safety solenoid valve for clutch (Azbil)
-Thin oil lubricate pump
-Two-hand-button control panel with foot pedal
-Anti-vibration pads
-Inverter for adjustable stroke speeds
-Front side safety light barriers
-Slide counterweight balance cylinder
-Slide height adjust motor with height indicator
-Cam controller
-Die cushion
-Hydraulic die clamps, die lifters
-Physical safety fence
| JH21-200L | ||||
| Capacity | kN | 2000 | ||
| Nominal Stroke | mm | 6 | ||
| Slide Stroke | mm | 18-180 | ||
| SPM | Fixed | min-1 | 35 | |
| Variable | min-1 | 30-40 | ||
| Max. Die Height | mm | 450 | ||
| Die Height Adjustment | mm | 110 | ||
| Throat Depth | mm | 390 | ||
| Between Columns | mm | 920 | ||
| Bolster | LR | mm | 1400 | |
| FB | mm | 760 | ||
| Thk | mm | 160 | ||
| Bolster Opening | mm | φ300×50 | ||
| (Up Hole Dia.×Dpth×Low Hole Dia.) | ×φ260 | |||
| Slide Area | LR | mm | 970 | |
| FB | mm | 600 | ||
| Shank Hole | Dia. | mm | φ65 | |
| Dpth | mm | 90 | ||
| Main Motor Power | kW | 18.5 | ||
| Dimensions | FB | mm | 2500 | |
| LR | mm | 1700 | ||
| H | mm | 4200 | ||
| Net Weight | kg | 17950 | ||
