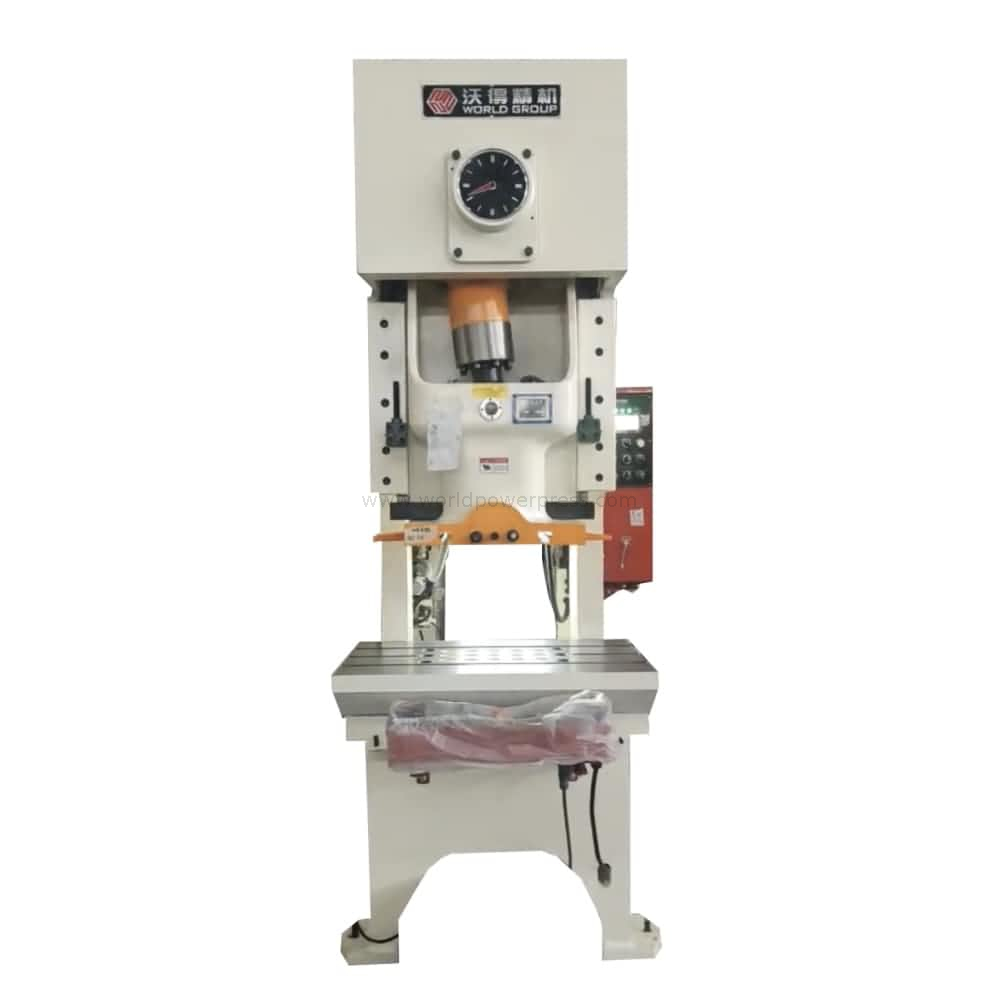

Mechanical Power 80ton C Frame Punch Press

Main features of 80ton C-frame punch press

Boost your sheet metal stamping efficiency with our 80 Ton C Frame Punch Press — a general-purpose mechanical press built for long-lasting stability, smart operation and minimal downtime.

1. Rugged Compact C-Frame Construction‌: The full steel-welded C-type body delivers exceptional rigidity with minimal floor space occupation, keeping frame deflection extremely low even under full 80-ton continuous stamping loads.

2. Trusted Industrial-Grade Control System‌: Fitted with Schneider or Omron PLC core control and a responsive touchscreen HMI, operators can adjust all production parameters, view real-time machine status and run one-tap fault diagnosis effortlessly.

3. Automatic Lubrication‌: The centralized automatic grease lubrication system lets you freely set lubrication frequency directly through the HMI panel, ensuring every moving part gets consistent, timely lubrication to cut wear and extend component lifespan.

4. Full Safety Protection Design‌: The built-in hydraulic overload protection system instantly triggers pressure relief the moment load exceeds the rated value, safeguarding your expensive molds and machine body from permanent accidental damage.

5. Low-Maintenance Wet Pneumatic Clutch‌: The wet-type pneumatic clutch runs smoothly with low noise, avoids frequent friction part replacement common on dry clutch models, and makes daily routine maintenance far simpler for your workshop team.

Press Standard Configurations:

1. Combined pneumatic clutch and brake

2. Dual-safety solenoid valve for clutch

3. PLC and HMI

4. HOLP system (overload protection)

5. Central control grease lubrication system

6. Slide adjust motor

7. Die height indicator

8. Ram counterweight balance cylinder

9. Isolation mounting pads


Press Options:

1. Electric-photo protection system (light curtain)

2. Stroke speeds adjust inverter (VFR)

3. Die cushion

4. Quick die change device (hydraulic die clamps and die lifters)

5. Roller feeder
