JH25-200
WORLD

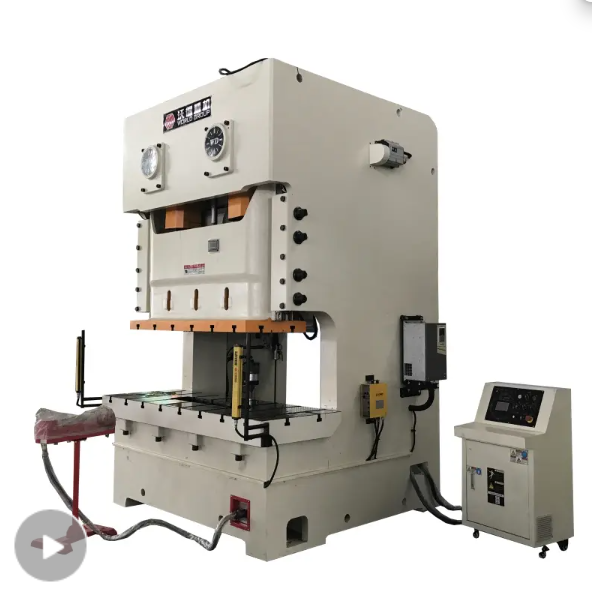

The 200ton Two-Points Gap Frame Stamping Press Machine is a heavy-duty metal forming equipment engineered for high-precision stamping of large and medium-sized workpieces. Designed with a robust gap frame structure and dual-point driving system, this press machine delivers balanced force distribution, ensuring consistent stamping quality even under continuous operation. It is widely recognized in metalworking industries for its reliability, efficiency, and adaptability to various stamping tasks, making it an ideal core equipment for automotive parts, household appliance components, and hardware production lines.
Specification | Value |
Press machine model | JH25-200 |
Tonnage capacity | 2000kN |
Stroke length | 250mm |
Stroke speeds | 25-40 times per minute |
Max. Shut height | 500mm |
Shut height adjustment | 110mm |
Bolster size | 2420x840mm |
Slide bottom size | 1850x650mm |
Main motor power | 22kw |
Power voltage | 380V50HZ |
The dual-point driving mechanism ensures that the slide moves synchronously, avoiding lateral deviation during stamping. This design not only enhances the precision of stamped workpieces (tolerance ≤±0.05mm) but also reduces wear on the mold, extending the mold service life by 20% compared to single-point press machines.
Constructed with thickened Q235 steel plate and processed by overall quenching and tempering, the gap frame has excellent rigidity and shock resistance. It can withstand long-term high-load stamping without deformation, guaranteeing stable operation even in 24-hour continuous production.
Equipped with a PLC control system and a touch-screen interface, the press machine allows easy setting of stamping parameters such as stroke, speed, and pressure. The emergency stop device and safety light curtain further ensure operator safety, meeting international industrial safety standards.
To meet diverse customer needs, we offer customizable upgrades for the 200ton Two-Points Gap Frame Stamping Press Machine. Options include a servo motor system for variable slide speed adjustment, an automatic lubrication system for intelligent maintenance reminders, a mold clamping device for quick mold change, and a waste collection system for keeping the workshop clean and tidy.
This stamping press machine is suitable for processing various metal sheets, including carbon steel, stainless steel, aluminum alloy, copper alloy, and galvanized sheets, with a recommended sheet thickness range of 2-12mm.
It is widely used in the production of automotive chassis parts, household appliance shells, hardware tools, electrical components, and agricultural machinery parts. Its dual-point design is particularly advantageous for stamping large-area workpieces that require uniform force application.
We provide flexible purchase terms for the 200ton Two-Points Gap Frame Stamping Press Machine, including EXW, FOB, and CIF delivery terms. The minimum order quantity is 1 unit, with a delivery time of 30-45 working days after receiving the deposit. We also offer one-year free warranty and lifelong maintenance services, with professional technical teams available for on-site installation and training. Contact our sales team now to get a customized quotation and technical solution—let this high-performance press machine boost your production efficiency!
For daily use, we recommend cleaning the machine surface and checking the lubricating oil level every shift; a comprehensive maintenance (including checking the linkage mechanism, replacing worn parts, and calibrating precision) is required every 6 months.
Yes, the machine is designed with a standard interface that can be seamlessly connected to roller-type feeding machines, air feeder machines, or NC servo feeding systems to achieve fully automated stamping production.
Compared with single-point presses, two-point gap frame presses have more balanced force distribution, better stamping precision for large workpieces, and lower mold wear, making them more suitable for mass production of large-sized metal components.
