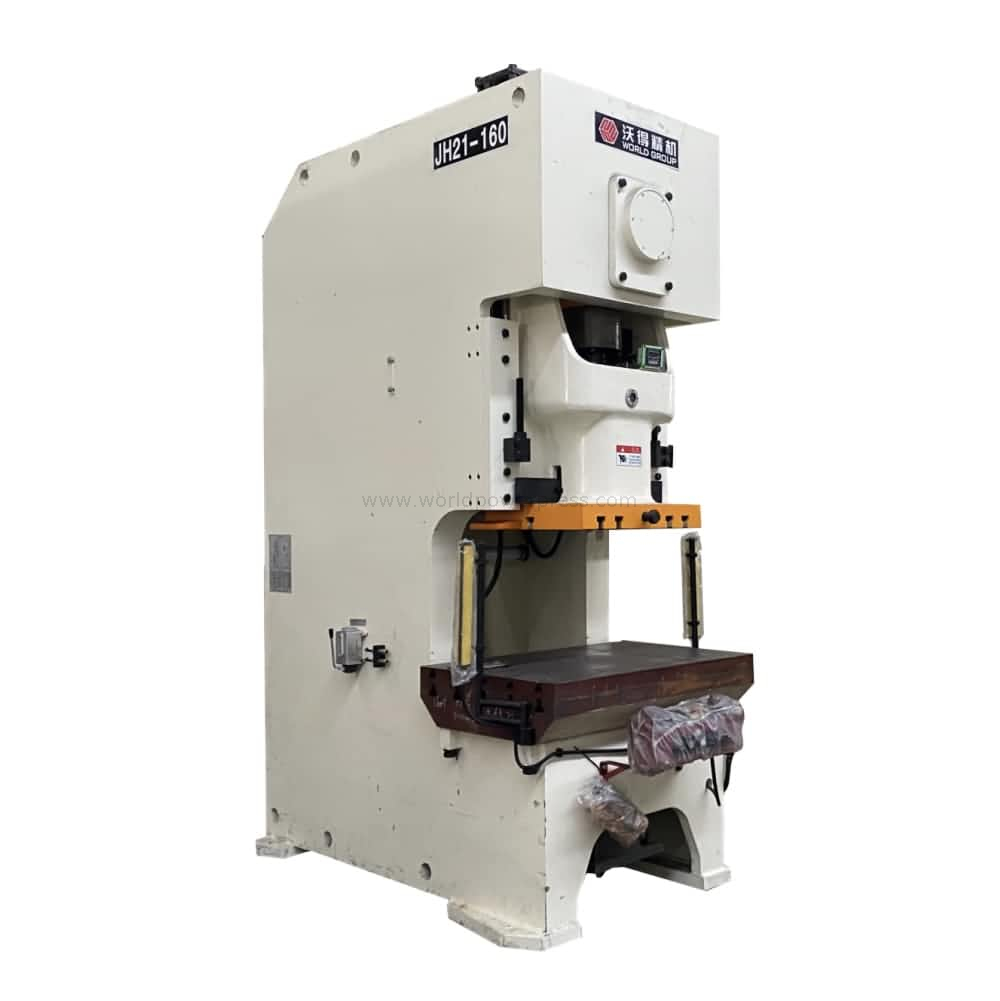

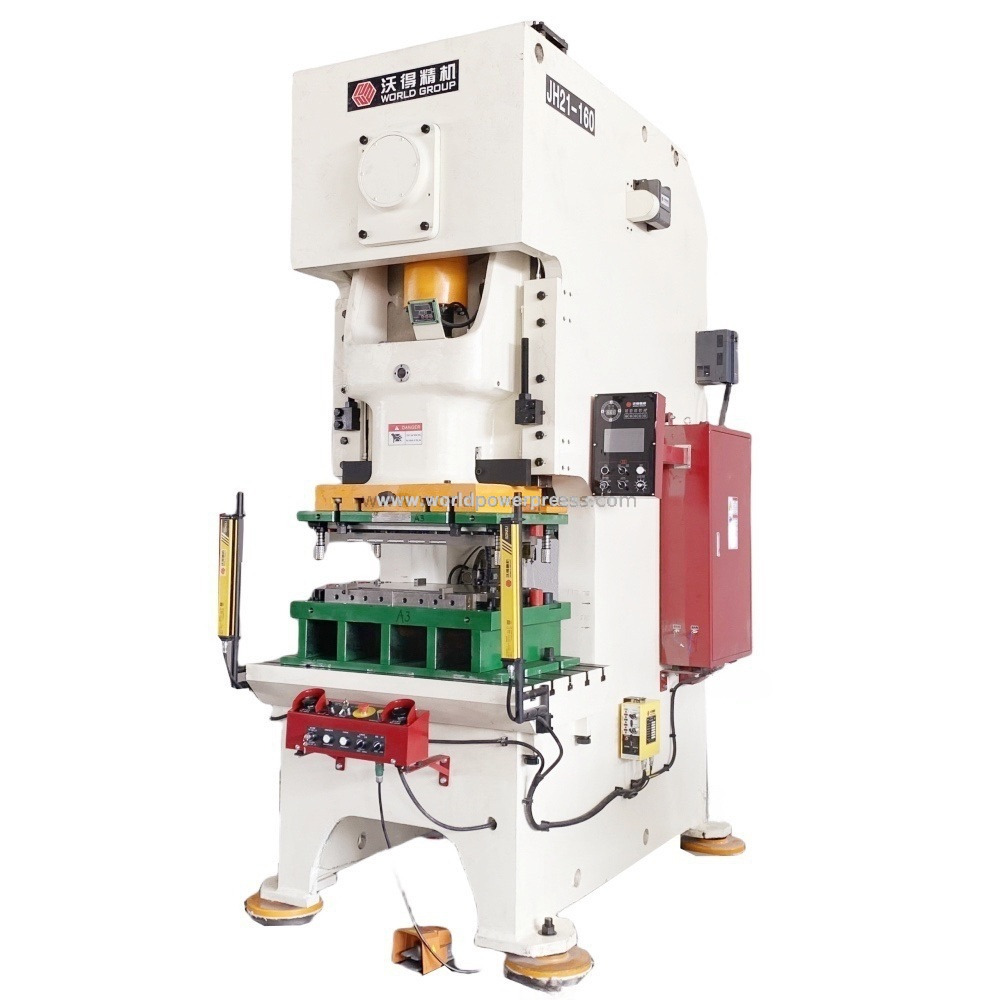

160ton C Frame world precise machinery press machine

Advantages of 160ton world press machine:

. Optimized steel plate welded frame

. Cross located crankshaft with bronze bush

. PLC control, HMI with touch screen

. Oil-bath wet type pneumatic clutch and brake

. Hydraulic overload protection

. Motorized ram height adjustment

. With anti-vibration mounting pads

. Inches, single stroke and continuous strokes

. Overload protection system: hydraulic

. Lubrication system: automatic grease pump

. Safety accessories: light barrier as optional

Technical parameters:

Press model number: JH21-160

Press tonnage capacity: 160ton

Stroke length: 200mm

Stroke speed: 45spm

Shut height: Max. 400mm and Min. 300mm

Bolster size: 1175x760mm

Slider bottom size: 700x580mm

Motor power: 15kw

Press machine weight: 11400kg

Main parts list:

-PLC (Omron/Schneider/Siemens/Delta)

-HMI (Kinco/Siemens/Delta)

-Overload pump (made by world/Showa)

-Dual-safety valve for clutch (made by World/Toyooki)

-Clutch and brake (made by world)

-Low voltage electric parts (Schneider/Chinese famous brand)

-Grease pump (NF/Chinese famous brand)

Options:

-Die cushion

-Photocell light barriers for safety

-Inverter (motor frequency drive) for adjustable stroke speeds

-Servo feeder

-Uncoiler and straightener

-Die clamps and die lifters

Custom items:

-Press colors

-Power voltage 220V/415V/440V/480V/600V

-Stroke length (maximum 300mm)

-Die shut height

-Table size and slide area

Shipment information:

-Package type: steel pallet

-Package size: 3600x1800x2300mm

-Net/Gross weight: 11400/11800kg
