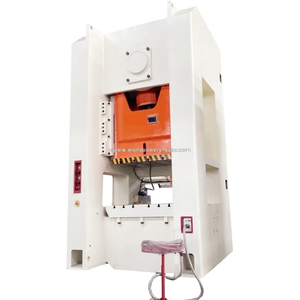

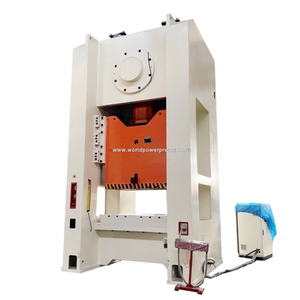

World brand 500 ton straight side single crank press machine

Name: World brand 500 ton straight side single crank press machine
Brand: WORLD
Rating: 5.0 (91 reviews)

JW31-500 is a 500 ton crank type single point straight side press. This press adopts wet type pneumatic clutch and PLC control. If conforms to CE safety standard.

Availability:

Quantity:



Inquire Add to Basket

Model:
JW31-500
Brand:
WORLD

Product Description

World Brand 500 ton Straight Side Single Crank Press Machine

-H frame steel welded mono block type body, high rigidity

-PLC control with HMI, English control panel

-Wet type pneumatic clutch and brake, fricition discs are oil bath inside the flywheel.

-Safety solienoid valve to control the clutch

-Mechanical cam controller with rotary encoder

-With anti-vibration mounting pads

500 ton straight side press machine technical parameters

ITEM		CODE	UNIT	JW31-500
Nominal Capacity		Pe	KN	5000
Slide Stroke		s	mm	250
Slide Stroke Speed	Fixed	n	spm	20
Slide Stroke Speed	Variable(optional)	n	spm	15-25
Max.Die Shut Height		H2	mm	650
Die Shut Height Adjustment		t	mm	120
Side Window Size	F-B	E	mm	1000
Side Window Size	Height	F	mm	650
Distance Between Uprights		G	mm	1650
Table Size	F-B	D	mm	1000
	L-R	C	mm	1500
	Thickness	H3	mm	220
Table Hole Diameter			mm	220
Slide Bottom Size	F-B	b	mm	950
Slide Bottom Size	L-R	a	mm	1250
Table Surface Height		H1	mm	1225
Overall Dimensions	F-B	A	mm	3100
	L-R	B	mm	2600
	Height	H	mm	5400
Motor Power			KW	45
Weight(approximate)			kg	47500
