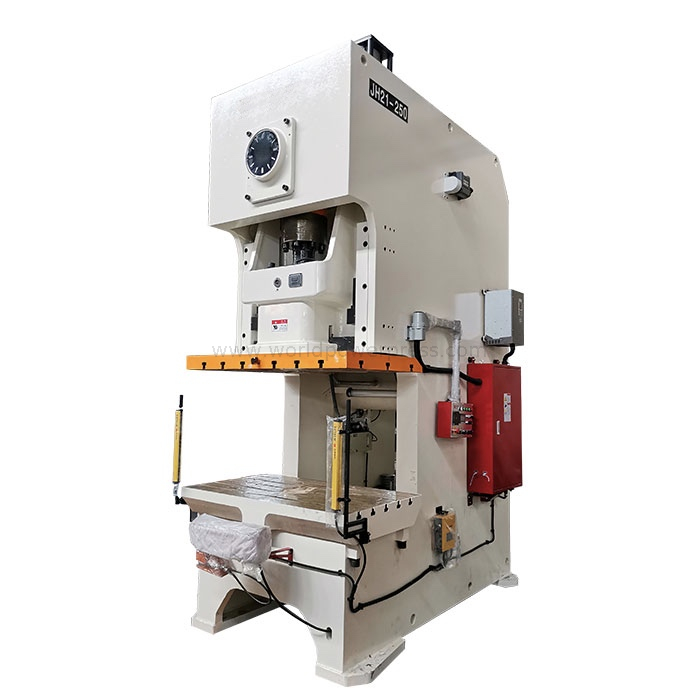

world precise machinery JH21-250 gap frame mechanical stamping press
JH21-250 is a c frame 250t press for auto parts stamping. This eccentric press is widely used fo r auto parts and other stamping parts production. The c frame press can work with servo roller feeder and decoiler system to act as an automatic stamping press line. The press can work as inches, single strokes and continuous strokes. It is easy to match the die with the motorized slide adjustment system and a digital shut height indicator.
. C frame steel-plate welded body, high rigidity and strength
. Rectangular type six-faces ram guides, high precision
. PLC control with HMI
. Hydraulic overload protected
. Working modes switchable: inches, single and continuous
. Work with coil feeding machines as full automatic stamping line
. Pneumatic clutch and brake, oil-bath wet type, low noise and easy maintenance
Advantages of 250 ton gap frame stamping press:
. C frame steel-plate welded body, high rigidity and strength
. Rectangular type six-faces ram guides, high precision
. PLC control with HMI
. Hydraulic overload protected
. Working modes switchable: inches, single and continuous
. Work with coil feeding machines as full automatic stamping line
. Pneumatic clutch and brake, oil-bath wet type, low noise and easy maintenance
Model
JH21-250
Nominal Tonnage
250Ton
Rated Tonnage Point
6.5mm
Stroke
160mm
Stroke Speed
35-58spm
Max. Die Set Height
530mm
Slide Adjustment
120mm
Bolster Size
1500mm x 880mm
Slide Area
900mm x 700mm
Bolster Surface Height
1000mm
Motor Power
22kW
Dimensions
2660mm x 1640mm x 3850mm
