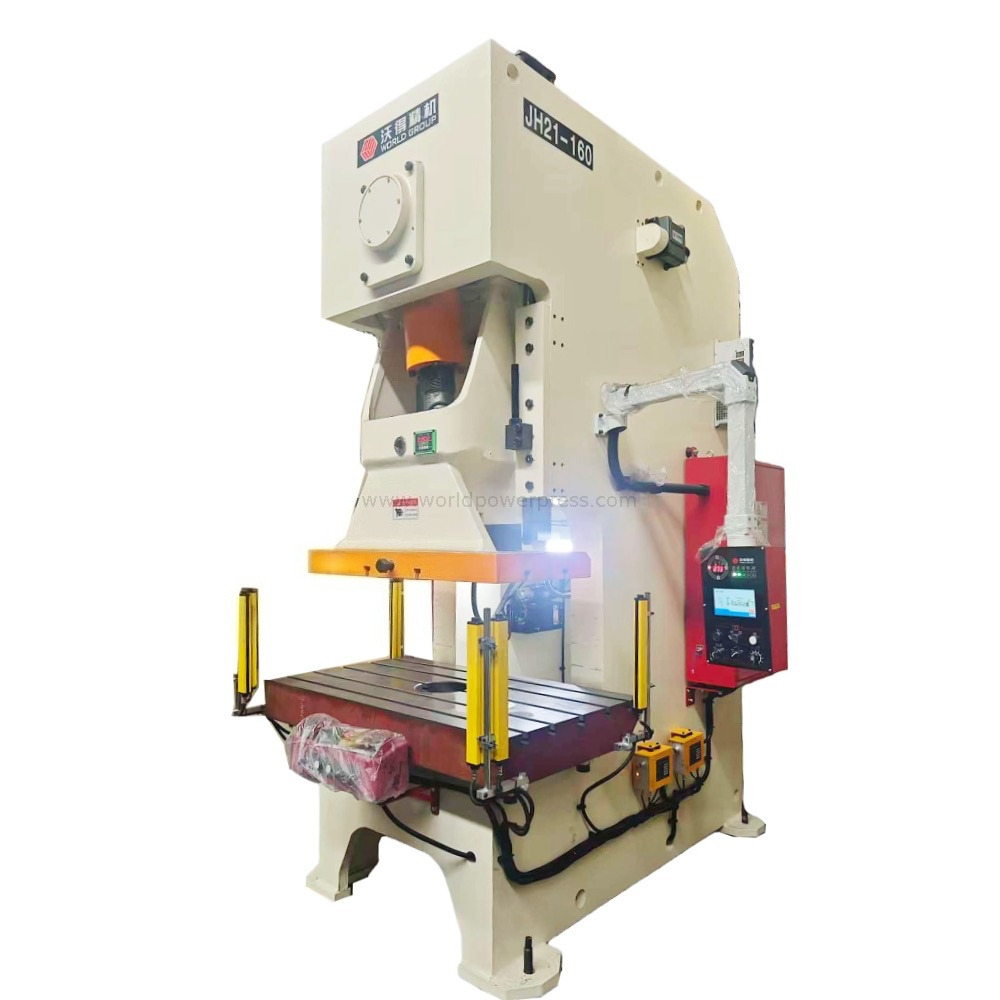

160ton C Type Mechanical Power Press Machine

160 ton c type mechanical press machine features:

-Optimized steel plate welded frame

-Cross located crankshaft with bronze bush

-PLC control, HMI with touch screen

-Oil-bath wet type pneumatic clutch and brake

-Hydraulic overload protection

-Motorized ram height adjustment

-With anti-vibration mounting pads

-Inches, single stroke and continuous strokes

-Overload protection system: hydraulic

-Lubrication system: automatic grease pump

-Safety accessories: light barrier as optional

Standard equipment:

1. PLC

2. Combined pneumatic clutch and brake

3. Dual-safety solenoid valve for clutch

4. HMI with touch screen (English version)

5. Rotary encoder with cam controller

6. Slide adjust motor with die height indicator

7. Grease pump

8. Overload protection pneumatic pump

9. Slide counterweight balance cylinder

10. Hand-button control panel

11. Anti-viration pads

12. Foot pedal

Optional accessories

1. Safety light barriers

2. Phasical side safety fence

3. Motor speed drive (frequency inverter)

4. Die cushion

5. Die quick change device (die clamp, die lifter)

6. Servo NC feeder and uncoiler

7. Tonnage monitor

8. Manipulator
