JH21-125
WORLD

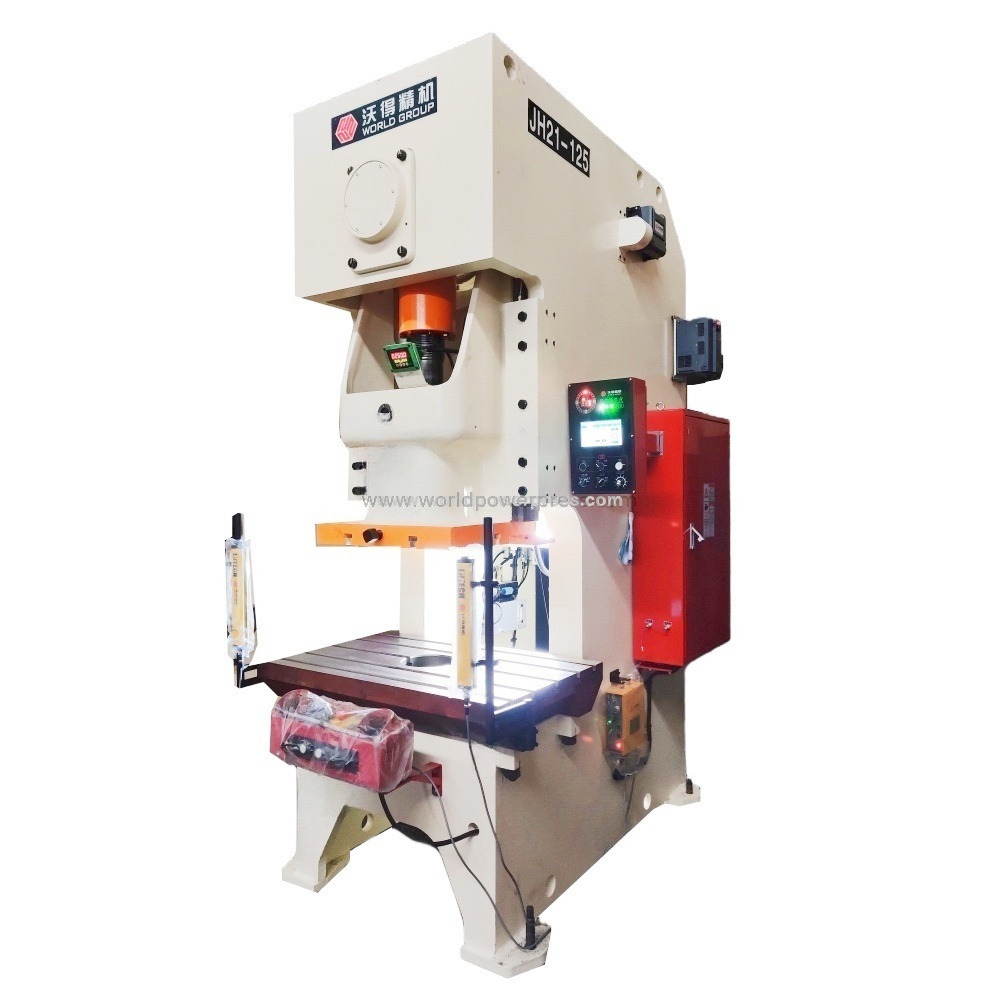

JH21-125 is a 125ton c frame press for metal parts stamping. The press mechanical transmission system is from the motor to the pneumatic clutch, then to gear and crankshaft. A high quality wet type pneumatic clutch is adopted, which ensures the press working function as inches stroke, single stroke and continuous strokes. This c frame press adopts a high rigidity c frame steel plate welded body. The welded structure is annealing treatment to release welding stress.
Model: JH21-125
Nominal capcity: 125ton
Stroke length: 180mm
Stroke speed: 50spm, and 35-60spm adjustable as optional
Bolster size: 1100x680mm
Ram bottom size: 620x520mm
Shut height: 260-350mm
Motor power: 11kw
Machine weight: 9550kg
Overload protection: hydraulic overload pump
Slide adjustment: brake motor
Lubrication: automatic grease pump
JH21-125 is a 125ton c frame press for metal parts stamping. The press mechanical transmission system is from the motor to the pneumatic clutch, then to gear and crankshaft. A high quality wet type pneumatic clutch is adopted, which ensures the press working function as inches stroke, single stroke and continuous strokes. This c frame press adopts a high rigidity c frame steel plate welded body. The welded structure is annealing treatment to release welding stress.
Model: JH21-125
Nominal capcity: 125ton
Stroke length: 180mm
Stroke speed: 50spm, and 35-60spm adjustable as optional
Bolster size: 1100x680mm
Ram bottom size: 620x520mm
Shut height: 260-350mm
Motor power: 11kw
Machine weight: 9550kg
Overload protection: hydraulic overload pump
Slide adjustment: brake motor
Lubrication: automatic grease pump
