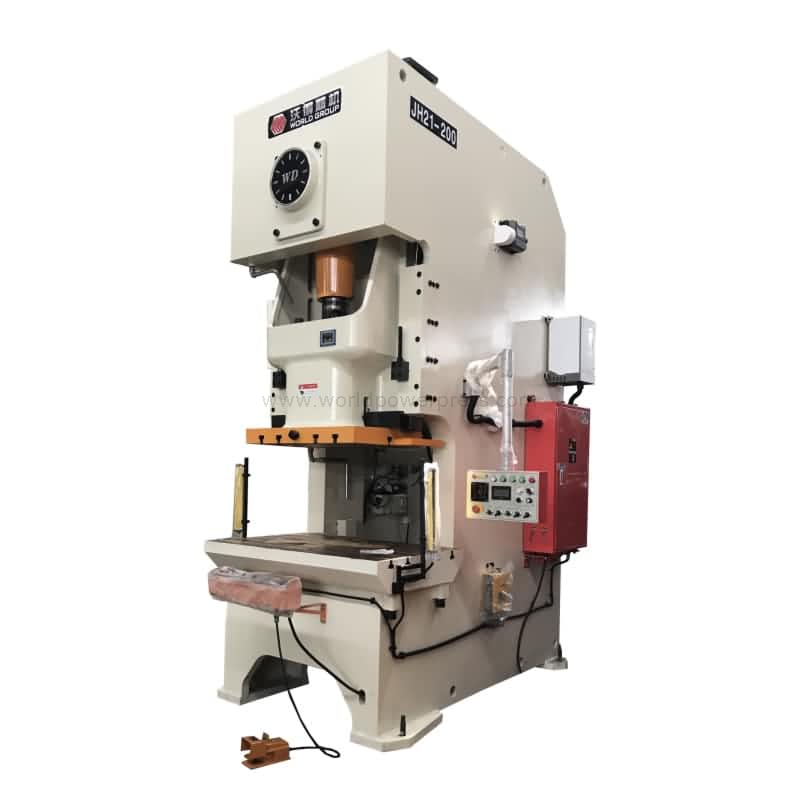

JH21-200
WORLD
-Gap frame steel plate welded body
-Cross located crankshaft with big gear transmission
-Wet type pneumatic clutch and brake, with dual-safety solenoid valve
-PLC control, HMI with monitor function
-Motorized ram height adjustment
Power press model: JH21-200
Press tonnage capacity: 2000kN (200ton)
Stroke length: 200mm
Stroke speed: 45spm as standard, 30-55spm as optional if with the variable speed motor drive
Max. Die shut height: 450mm
Slide adjustment: 110mm
Working bolster size: 1390x840mm
Slider size: 880x650mm
Motor power: 18.5kw
Optional accessories:
-safety light barriers
-varaible speed motor drive
-die cushion
-servo roll feeder
-decoiler
-flywheel brake
-Gap frame steel plate welded body
-Cross located crankshaft with big gear transmission
-Wet type pneumatic clutch and brake, with dual-safety solenoid valve
-PLC control, HMI with monitor function
-Motorized ram height adjustment
Power press model: JH21-200
Press tonnage capacity: 2000kN (200ton)
Stroke length: 200mm
Stroke speed: 45spm as standard, 30-55spm as optional if with the variable speed motor drive
Max. Die shut height: 450mm
Slide adjustment: 110mm
Working bolster size: 1390x840mm
Slider size: 880x650mm
Motor power: 18.5kw
Optional accessories:
-safety light barriers
-varaible speed motor drive
-die cushion
-servo roll feeder
-decoiler
-flywheel brake
