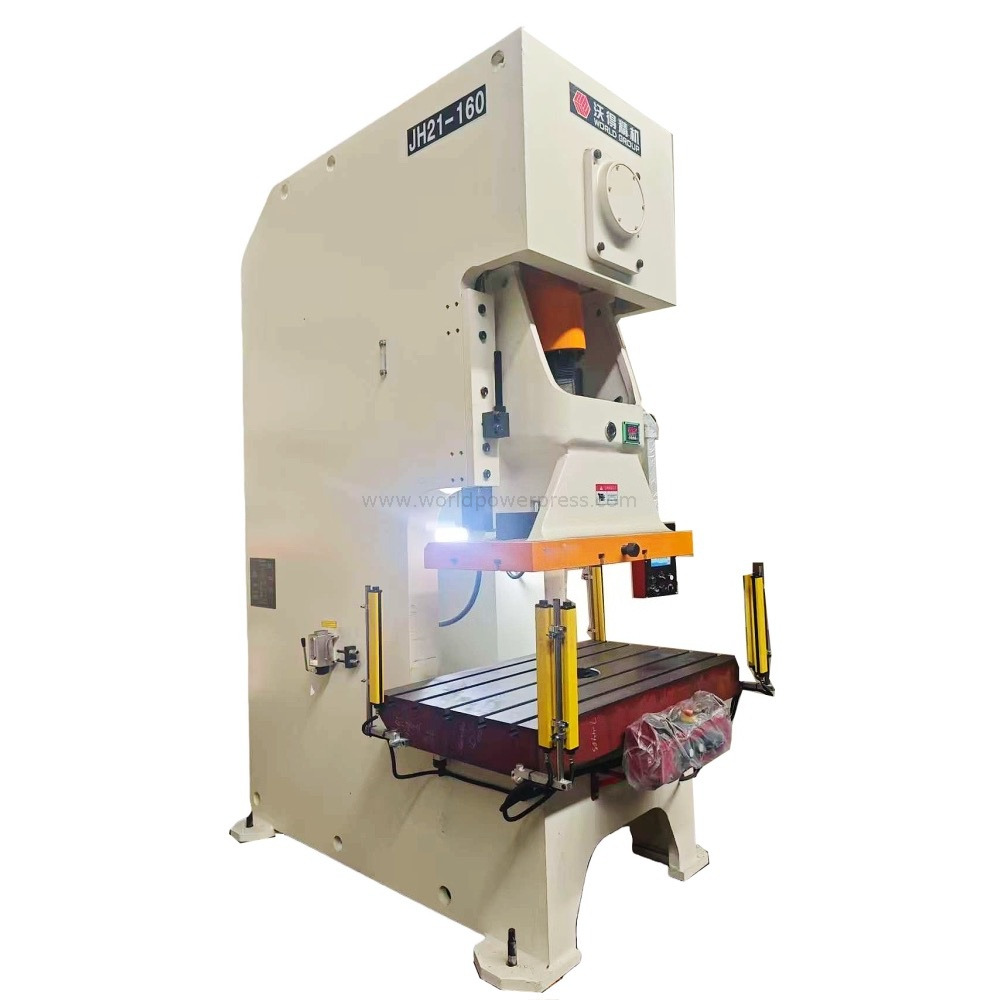

160ton C Frame Press Machine for Metal Parts Stamping

JH21-160 is a c frame press machine with 160ton tonnage capacity. This press machine is widely used for metal parts stamping, such as small auto parts, home appliance parts, electric parts and hardware parts. This 160ton press machine adopts a reliable wet type pneumatic clutch and a dual-safety solenoid valve. It is safe press with high precision and efficiency. The c frame press machine can work with coil strip servo NC feeder and other automatic accessories.

Technical parameters:

Press model number: JH21-160

Press tonnage capacity: 160ton

Stroke length: 200mm

Stroke speed: 45spm

Shut height: Max. 400mm and Min. 300mm

Bolster size: 1175x760mm

Slider bottom size: 700x580mm

Motor power: 15kw

Press machine weight: 11400kg

Main parts list:

-PLC (Omron/Schneider/Siemens/Delta)

-HMI (Kinco/Siemens/Delta)

-Overload pump (made by world/Showa)

-Dual-safety valve for clutch (made by World/Toyooki)

-Clutch and brake (made by world)

-Low voltage electric parts (Schneider/Chinese famous brand)

-Grease pump (NF/Chinese famous brand)

Options:

-Die cushion

-Photocell light barriers for safety

-Inverter (motor frequency drive) for adjustable stroke speeds

-Servo feeder

-Uncoiler and straightener

-Die clamps and die lifters

Custom items:

-Press colors

-Power voltage 220V/415V/440V/480V/600V

-Stroke length (maximum 300mm)

-Die shut height

-Table size and slide area

Shipment information:

-Package type: steel pallet

-Package size: 3600x1800x2300mm

-Net/Gross weight: 11400/11800kg
