JW36-400
WORLD

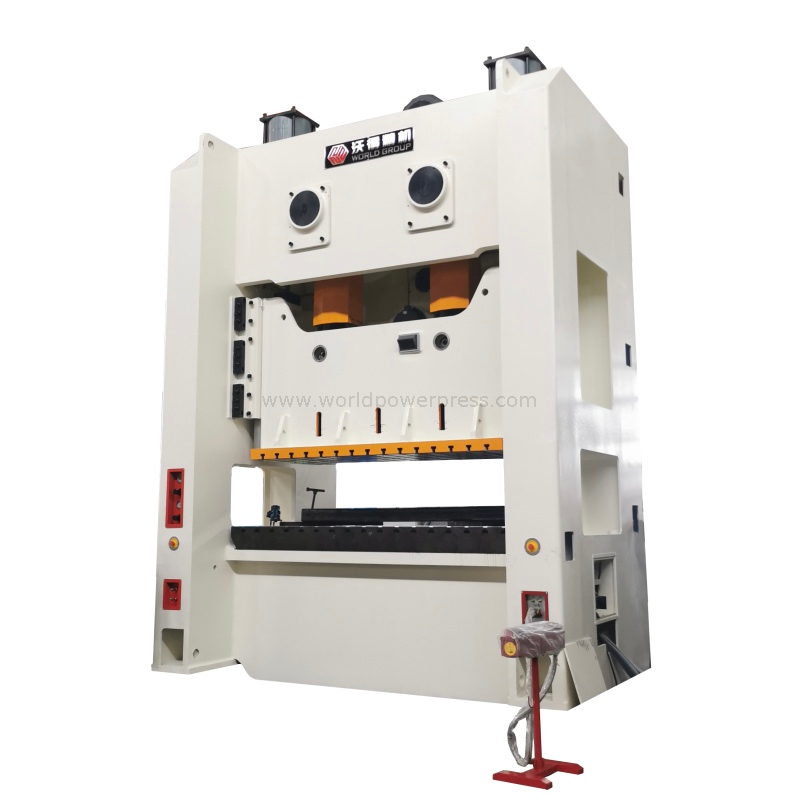

The JW36-400 is a robust 400-ton capacity press machine integrated with a double-crank transmission system, engineered to deliver exceptional stamping performance for high-demand manufacturing applications.
Constructed with an H-frame steel welded body, this press machine boasts unparalleled structural rigidity and stability. The heavy-duty steel welding ensures resistance to deformation even under extreme stamping loads, extending the machine's service life and maintaining precision over long-term operation. At its core, the cross-positioned crankshafts, paired with two large-diameter gears mounted on the rear end, form a power transmission mechanism that guarantees uniform force distribution and smooth operation. This design minimizes vibration and noise during the stamping process, creating a more favorable working environment while enhancing the accuracy of each stamping cycle.
What sets the JW36-400 apart is its exceptional precision, making it the ideal solution for progressive die stamping operations. Whether processing thin sheet metals or thicker workpieces, the machine maintains tight tolerances, ensuring consistent quality across high-volume production runs. Its compatibility with progressive dies allows for multi-stage stamping processes to be completed in a single pass, significantly improving production efficiency and reducing material waste.
Ideal for industries such as automotive, aerospace, and electronics, where precision and reliability are non-negotiable, the JW36-400 combines rugged construction with advanced transmission technology to meet the most stringent manufacturing requirements.
| ITEM | CODE | UNIT | JW36-400 | |
| Nominal Capacity | KN | 4000 | ||
| Slide Stroke Length | S | mm | 300 | |
| Slide Stroke Speed | Fixed | spm | 20 | |
| Variable (optional) | spm | 15-25 | ||
| Max. Die Shut Height | H2 | mm | 600 | |
| Die Shut Height Adjustment | t | mm | 130 | |
| Side Window Size | F-B | E | mm | 1000 |
| Height | F | mm | 550 | |
| Distance Between Uprights | G | mm | 2810 | |
| Table Size | F-B | D | mm | 1100 |
| L-R | C | mm | 2700 | |
| Thickness | H3 | mm | 200 | |
| Slide Bottom Size | F-B | b | mm | 1000 |
| L-R | a | mm | 2400 | |
| Table Surface Height | H1 | mm | 1340 | |
| Overall Dimensions | F-B | A | mm | 3250 |
| L-R | B | mm | 3850 | |
| Height | H | mm | 5600 | |
| Motor Power | KW | 45 | ||
| Weight (approximate) | kg | 54000 | ||
