JW36-630
WORLD

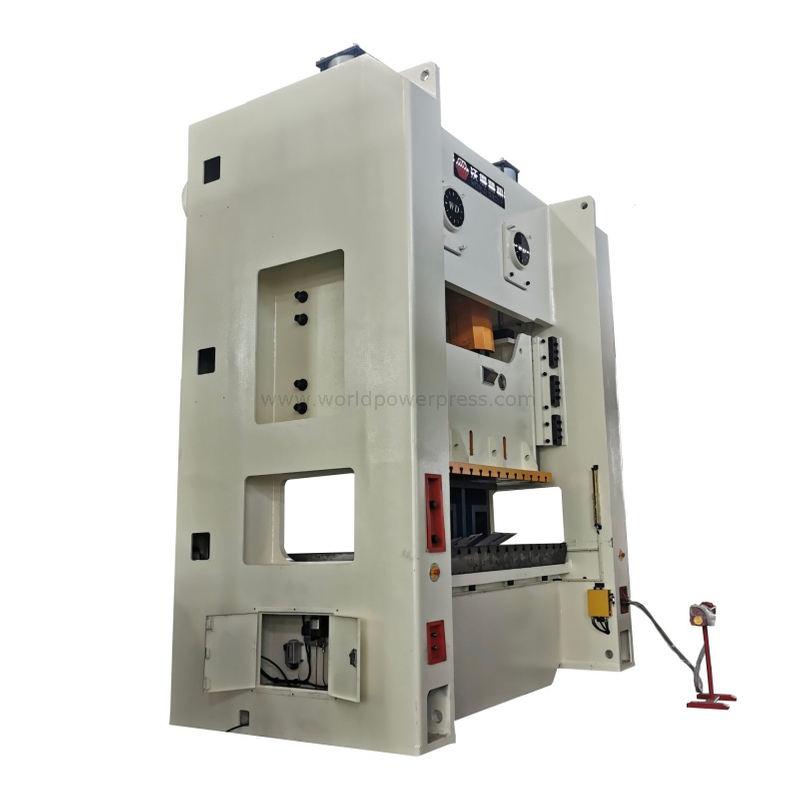

The Straight Side Two Points 600 Ton Stamping Press Machine is a high-performance solution for heavy-duty sheet metal stamping, designed with double crank transmission and an oil bath wet type pneumatic clutch for smooth, precise, and safe operation. This press machine features a bolster size of 3100x1300mm, providing ample workspace for large-scale production. It is equipped with hydraulic overload protection to prevent damage during high-pressure tasks and automatic grease lubrication for reduced maintenance and extended component life. The mono-block type steel welded body ensures exceptional rigidity, accuracy, and durability, making it ideal for industrial applications.
1. Double Crank Transmission: Enhances power transmission efficiency and reduces mechanical stress.
2. Oil Bath Wet Type Pneumatic Clutch: Features a safety solenoid valve for reliable engagement and disengagement.
3. Bolster Size 3100x1300mm: Accommodates large workpieces and progressive dies.
4. Hydraulic Overload Protection: Safeguards the press and tooling from excessive force.
5. Automatic Grease Lubrication: Minimizes manual labor and ensures consistent performance.
6. Mono-Block Type Steel Welded Body: Tempered for high strength and stability.
This press machine is perfect for manufacturing industries requiring high-volume production with precision and reliability. Whether you're producing automotive components, home appliances, or other stamped parts, the Straight Side Two Points 600 Ton Stamping Press Machine offers a robust and efficient solution.
| ITEM | CODE | UNIT | JW36-630 | |
| Nominal Capacity | KN | 6300 | ||
| Slide Stroke Length | S | mm | 300 | |
| Slide Stroke Speed | Fixed | spm | 20 | |
| Variable (optional) | spm | 15-25 | ||
| Max. Die Shut Height | H2 | mm | 650 | |
| Die Shut Height Adjustment | t | mm | 130 | |
| Side Window Size | F-B | E | mm | 1200 |
| Height | F | mm | 650 | |
| Distance Between Uprights | G | mm | 3300 | |
| Table Size | F-B | D | mm | 1300 |
| L-R | C | mm | 3100 | |
| Thickness | H3 | mm | 220 | |
| Slide Bottom Size | F-B | b | mm | 1200 |
| L-R | a | mm | 2800 | |
| Table Surface Height | H1 | mm | 1480 | |
| Overall Dimensions | F-B | A | mm | 3900 |
| L-R | B | mm | 4300 | |
| Height | H | mm | 6100 | |
| Motor Power | KW | 75 | ||
| Weight (approximate) | Ton | 98 | ||
The Straight Side Two Points 600 Ton Stamping Press Machine is a high-performance solution for heavy-duty sheet metal stamping, designed with double crank transmission and an oil bath wet type pneumatic clutch for smooth, precise, and safe operation. This press machine features a bolster size of 3100x1300mm, providing ample workspace for large-scale production. It is equipped with hydraulic overload protection to prevent damage during high-pressure tasks and automatic grease lubrication for reduced maintenance and extended component life. The mono-block type steel welded body ensures exceptional rigidity, accuracy, and durability, making it ideal for industrial applications.
1. Double Crank Transmission: Enhances power transmission efficiency and reduces mechanical stress.
2. Oil Bath Wet Type Pneumatic Clutch: Features a safety solenoid valve for reliable engagement and disengagement.
3. Bolster Size 3100x1300mm: Accommodates large workpieces and progressive dies.
4. Hydraulic Overload Protection: Safeguards the press and tooling from excessive force.
5. Automatic Grease Lubrication: Minimizes manual labor and ensures consistent performance.
6. Mono-Block Type Steel Welded Body: Tempered for high strength and stability.
This press machine is perfect for manufacturing industries requiring high-volume production with precision and reliability. Whether you're producing automotive components, home appliances, or other stamped parts, the Straight Side Two Points 600 Ton Stamping Press Machine offers a robust and efficient solution.
| ITEM | CODE | UNIT | JW36-630 | |
| Nominal Capacity | KN | 6300 | ||
| Slide Stroke Length | S | mm | 300 | |
| Slide Stroke Speed | Fixed | spm | 20 | |
| Variable (optional) | spm | 15-25 | ||
| Max. Die Shut Height | H2 | mm | 650 | |
| Die Shut Height Adjustment | t | mm | 130 | |
| Side Window Size | F-B | E | mm | 1200 |
| Height | F | mm | 650 | |
| Distance Between Uprights | G | mm | 3300 | |
| Table Size | F-B | D | mm | 1300 |
| L-R | C | mm | 3100 | |
| Thickness | H3 | mm | 220 | |
| Slide Bottom Size | F-B | b | mm | 1200 |
| L-R | a | mm | 2800 | |
| Table Surface Height | H1 | mm | 1480 | |
| Overall Dimensions | F-B | A | mm | 3900 |
| L-R | B | mm | 4300 | |
| Height | H | mm | 6100 | |
| Motor Power | KW | 75 | ||
| Weight (approximate) | Ton | 98 | ||
