Y32
WORLD

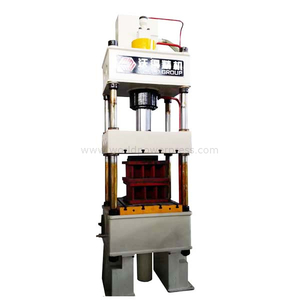

Four column type hydraulic press machine is suitable for sheet metal stamping and deep drawing. The press machine includes crown, slider, table and columns. Slider is moving on the columns, with fast approach speed, slow press speed and fast back speed. Ejection down jack and hydraulic cushion are optional.
Press capacity range: from 63ton to 2000ton
Table size: customizable
Max.Open height: customizable
Slide stroke: customizable
Applications:
pot and pan production
cups
filter house
doors
| MODEL | YW32-100 | YW32-160 | YW32-200 | YW32-315 | YW32-400 | YW32-500B | YW32-630A | YW32-800 | YW32-1000 | YW32-1250 | ||
| Capacity | kN | 1000 | 1600 | 2000 | 3150 | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | |
| Ejecting Force | kN | 400 | 400 | 400 | 630 | 630 | 1000 | 2000 | 3000 | 3500 | 4000 | |
| Slide Stroke | mm | 600 | 700 | 700 | 800 | 800 | 900 | 1100 | 1400 | 1400 | 1400 | |
| Ejecting Stroke | mm | 200 | 250 | 250 | 300 | 300 | 300 | 300 | 350 | 400 | 400 | |
| Max. Open Height | mm | 900 | 1000 | 1100 | 1250 | 1250 | 1300 | 1500 | 1800 | 2000 | 2000 | |
| Slide Speed | Idle Stroke | mm/s | 120 | 120 | 120 | 100 | 100 | 100 | 220 | 220 | 220 | 220 |
| Pressing | mm/s | 11 | 11 | 11 | 8-15 | 8-15 | 8-20 | 6-18 | 12-15 | 10-20 | 8-18 | |
| Return | mm/s | 110 | 110 | 110 | 60 | 55 | 70 | 120 | 120 | 120 | 100 | |
| Bolster Size | LR | mm | 720 | 720 | 720 | 1260 | 1260 | 1600 | 1500 | 2200 | 2500 | 2500 |
| FB | mm | 580 | 580 | 580 | 1200 | 1200 | 1400 | 1400 | 1500 | 1600 | 1600 | |
| Main Motor Power | kW | 7.5 | 11 | 15 | 22 | 30 | 44 | 60 | 90 | 110 | 110 | |
Four column type hydraulic press machine is suitable for sheet metal stamping and deep drawing. The press machine includes crown, slider, table and columns. Slider is moving on the columns, with fast approach speed, slow press speed and fast back speed. Ejection down jack and hydraulic cushion are optional.
Press capacity range: from 63ton to 2000ton
Table size: customizable
Max.Open height: customizable
Slide stroke: customizable
Applications:
pot and pan production
cups
filter house
doors
| MODEL | YW32-100 | YW32-160 | YW32-200 | YW32-315 | YW32-400 | YW32-500B | YW32-630A | YW32-800 | YW32-1000 | YW32-1250 | ||
| Capacity | kN | 1000 | 1600 | 2000 | 3150 | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | |
| Ejecting Force | kN | 400 | 400 | 400 | 630 | 630 | 1000 | 2000 | 3000 | 3500 | 4000 | |
| Slide Stroke | mm | 600 | 700 | 700 | 800 | 800 | 900 | 1100 | 1400 | 1400 | 1400 | |
| Ejecting Stroke | mm | 200 | 250 | 250 | 300 | 300 | 300 | 300 | 350 | 400 | 400 | |
| Max. Open Height | mm | 900 | 1000 | 1100 | 1250 | 1250 | 1300 | 1500 | 1800 | 2000 | 2000 | |
| Slide Speed | Idle Stroke | mm/s | 120 | 120 | 120 | 100 | 100 | 100 | 220 | 220 | 220 | 220 |
| Pressing | mm/s | 11 | 11 | 11 | 8-15 | 8-15 | 8-20 | 6-18 | 12-15 | 10-20 | 8-18 | |
| Return | mm/s | 110 | 110 | 110 | 60 | 55 | 70 | 120 | 120 | 120 | 100 | |
| Bolster Size | LR | mm | 720 | 720 | 720 | 1260 | 1260 | 1600 | 1500 | 2200 | 2500 | 2500 |
| FB | mm | 580 | 580 | 580 | 1200 | 1200 | 1400 | 1400 | 1500 | 1600 | 1600 | |
| Main Motor Power | kW | 7.5 | 11 | 15 | 22 | 30 | 44 | 60 | 90 | 110 | 110 | |
