JH21-25
WORLD

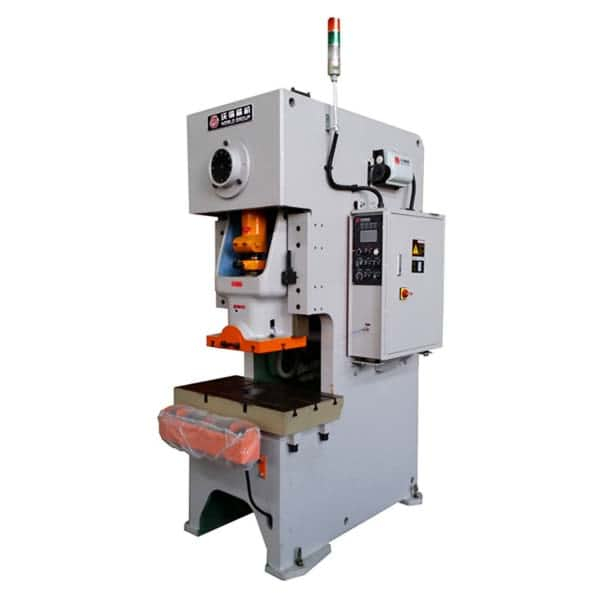

C type power press machine 25ton, suitable for metal parts punching, cutting, trimming and forming. This power press machine adopts world patent wet type combined clutch and brake. Wet type clutch has advantages as lower noise, longer service life, cheaper maintenance cost and cleaner for stamping parts.
-Scheider brand PLC
-Pneumatic clutch and brake, WORLD patent design
-Hydraulic overload protection system
-Automatic central control grease lubricant system
-Both two-hand-button control and foot pedal control
| ITEM | CODE | UNIT | JH21-25 | |
| Nominal Capacity | Pe | KN | 250 | |
| Slide Stroke Length | S | mm | 80 | |
| Slide Strokes | Fixed | spm | 100 | |
| Variable (optional) | spm | 60-120 | ||
| Max. Shut Height | H2 | mm | 250 | |
| Shut Height Adjustment | t | mm | 50 | |
| Throat Depth | C1 | mm | 210 | |
| Distance Between Columns | d1 | mm | 470 | |
| Slide Bottom Size | F-B | b | mm | 250 |
| L-R | a | mm | 360 | |
| Shank Hole Size | Diameter | d | mm | 40 |
| Depth | I | mm | 65 | |
| Table Size | F-B | D | mm | 400 |
| L-R | C | mm | 720 | |
| Thickness | H3 | mm | 80 | |
| Table Hole Diameter | ¢ | mm | 150 | |
| Overall Dimensions | F-B | A | mm | 1500 |
| L-R | B | mm | 945 | |
| Height | H | mm | 2090 | |
| Motor Power | KW | 3 | ||
| Weight (approximate) | kg | 2450 | ||
C type power press machine 25ton, suitable for metal parts punching, cutting, trimming and forming. This power press machine adopts world patent wet type combined clutch and brake. Wet type clutch has advantages as lower noise, longer service life, cheaper maintenance cost and cleaner for stamping parts.
-Scheider brand PLC
-Pneumatic clutch and brake, WORLD patent design
-Hydraulic overload protection system
-Automatic central control grease lubricant system
-Both two-hand-button control and foot pedal control
| ITEM | CODE | UNIT | JH21-25 | |
| Nominal Capacity | Pe | KN | 250 | |
| Slide Stroke Length | S | mm | 80 | |
| Slide Strokes | Fixed | spm | 100 | |
| Variable (optional) | spm | 60-120 | ||
| Max. Shut Height | H2 | mm | 250 | |
| Shut Height Adjustment | t | mm | 50 | |
| Throat Depth | C1 | mm | 210 | |
| Distance Between Columns | d1 | mm | 470 | |
| Slide Bottom Size | F-B | b | mm | 250 |
| L-R | a | mm | 360 | |
| Shank Hole Size | Diameter | d | mm | 40 |
| Depth | I | mm | 65 | |
| Table Size | F-B | D | mm | 400 |
| L-R | C | mm | 720 | |
| Thickness | H3 | mm | 80 | |
| Table Hole Diameter | ¢ | mm | 150 | |
| Overall Dimensions | F-B | A | mm | 1500 |
| L-R | B | mm | 945 | |
| Height | H | mm | 2090 | |
| Motor Power | KW | 3 | ||
| Weight (approximate) | kg | 2450 | ||
