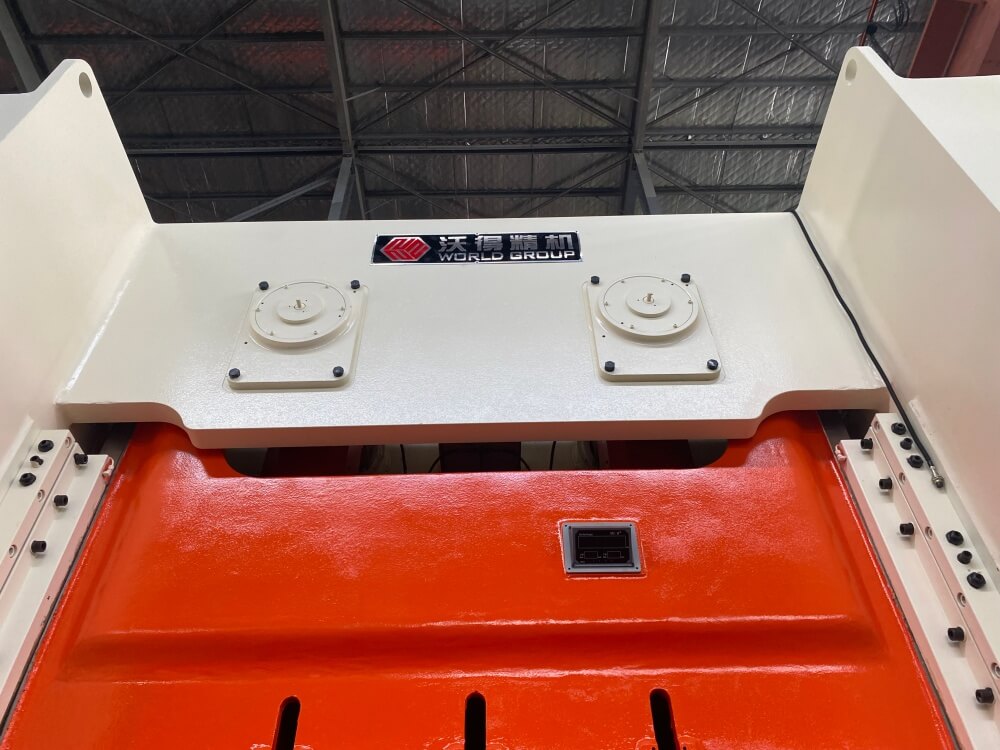

World Precise Machinery JW36-315 Mechanical Transfer Press

Advantages of the JW36-315 Transfer Press:‌

1. Seamless Integration:‌ Designed to perfectly match the transfer system of your press, ensuring smooth operation and enhanced efficiency.

2. Durable Construction:‌ Features a robust, mono-block steel welded body for long-lasting performance under heavy-duty conditions.

3. Versatile Die Compatibility:‌ Ideal for multi-station or progressive die stamping applications, offering flexibility for diverse production needs.

3. Standard Bolster Size:‌ Equipped with a standard bolster size of 2500x1000mm, providing a reliable foundation for your dies.

4. Customizable Options:‌ Bolster size can be tailored to your specific requirements, allowing for personalized setup configurations.

5. Advanced Clutch & Brake System:‌ Incorporates an oil bath wet type clutch and brake for superior control and reduced wear during operation.

6. Intelligent Control Panel:‌ PLC-controlled with an English-language HMI (Human Machine Interface) featuring a malfunction monitor for real-time diagnostics and ease of use.

6. Optional Automation:‌ Automatic accessories, such as a coil feeding line, are available to further streamline your production process.

Press MachineStandard Equipment

1. PLC (Omron/Siemens or similar)

2. Pneumatic clutch and brake

3. Dual-safety solenoid valve for clutch

4. Slide height adjustment motor

5. Digital die height indicator

6. Hydraulic overload protection system

7. Automatic grease lubrication system

8. Slide counterweight balance cylinder

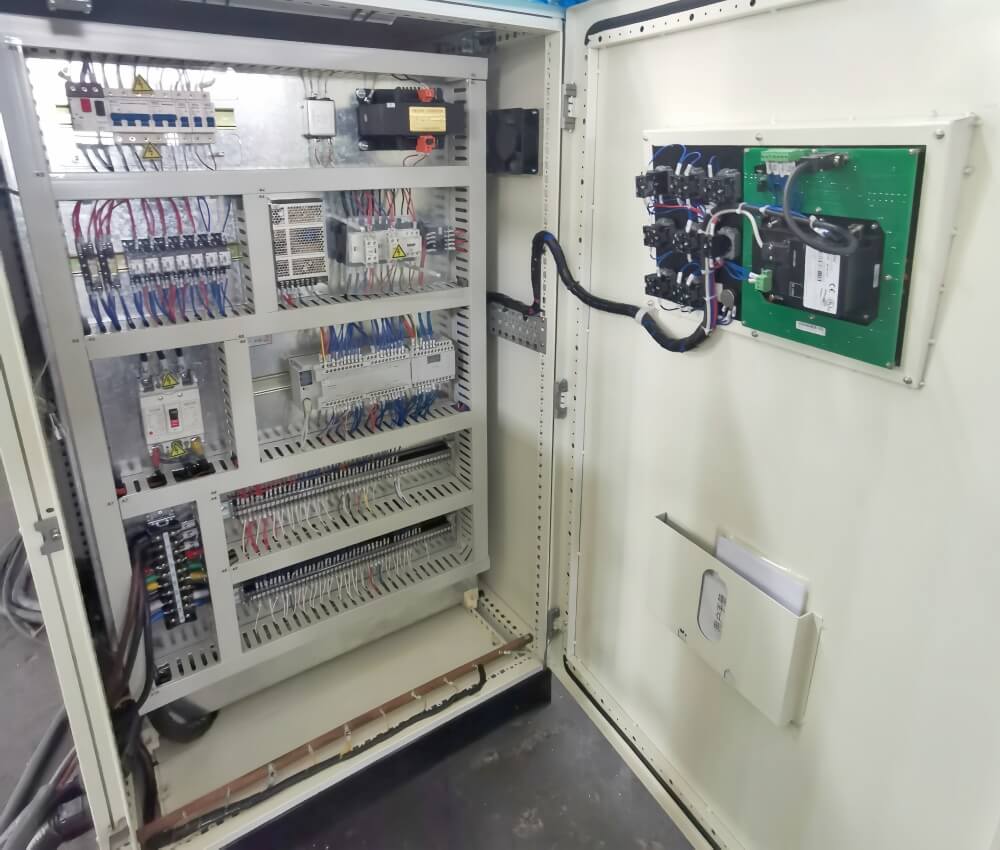

9. Movable electric cabinet with HMI

10. Cam controller with rotary encoder

11. Automation I/O

12. Mis-feeding protection PLC input

Optional Accessories of the Transfer Stamping Press

1. Quick Die Change Device

2. Safety light barriers

3. Safety door

4. Die safety block

5. Motor speed drive (frequency inverter)

6. Die cushion

7. Tonnage monitor

8. Servo coil feeder and uncoiler

9. Manipulator and transfer bar system

Package and Delivery

1. Standard packed with steel pallet and water-proof cover

2. 90 days production time to be ready for delivery

3. Shipment by bulk vessel

4. Assembed shipment for easy installation

Details of the Straight-Side Transfer Press

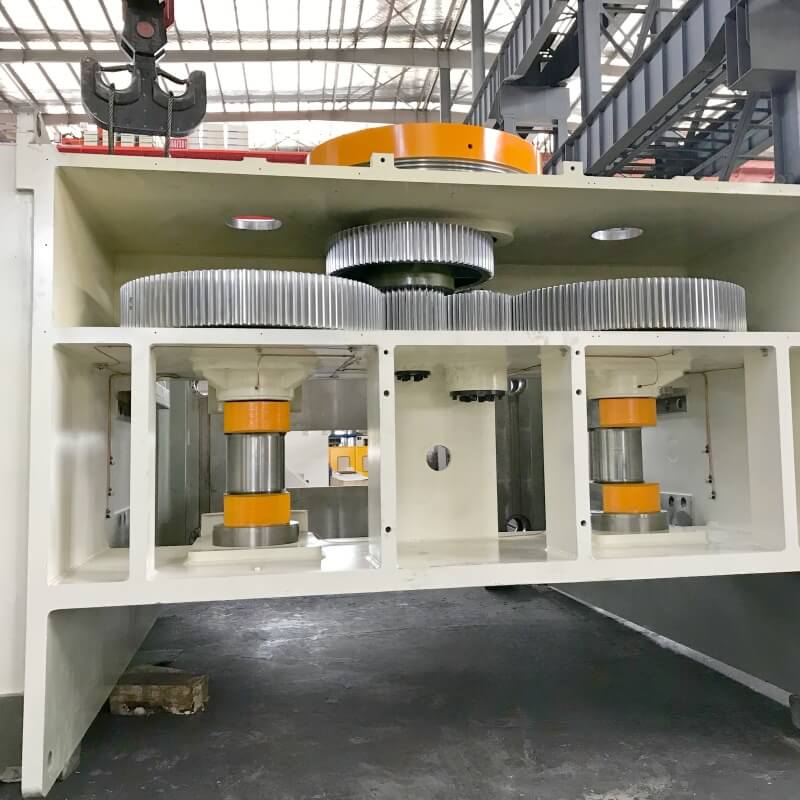

Bull Gear & Pinion Gear

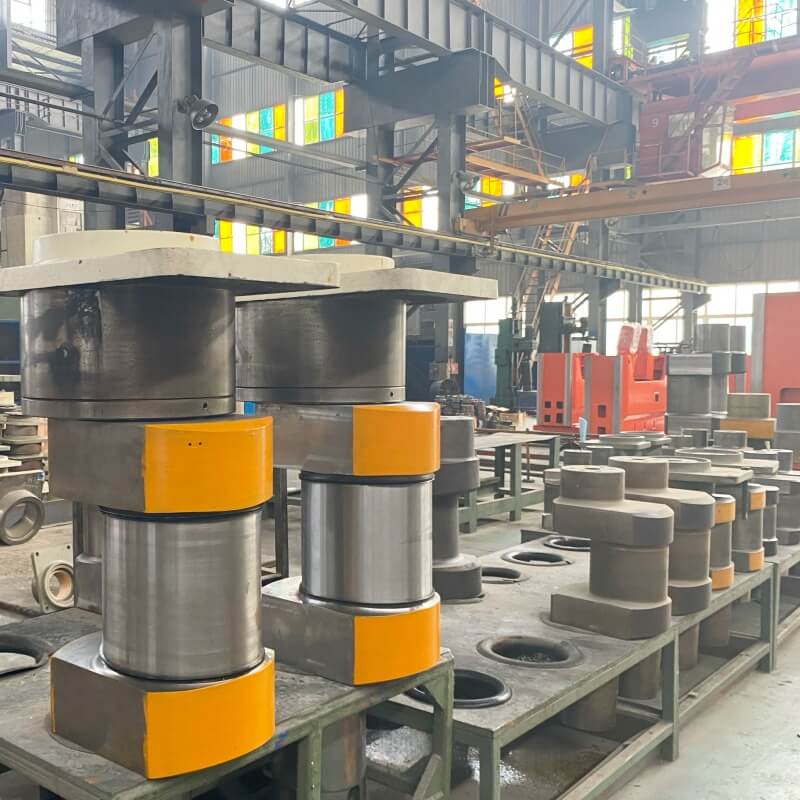

Forged Crankshaft

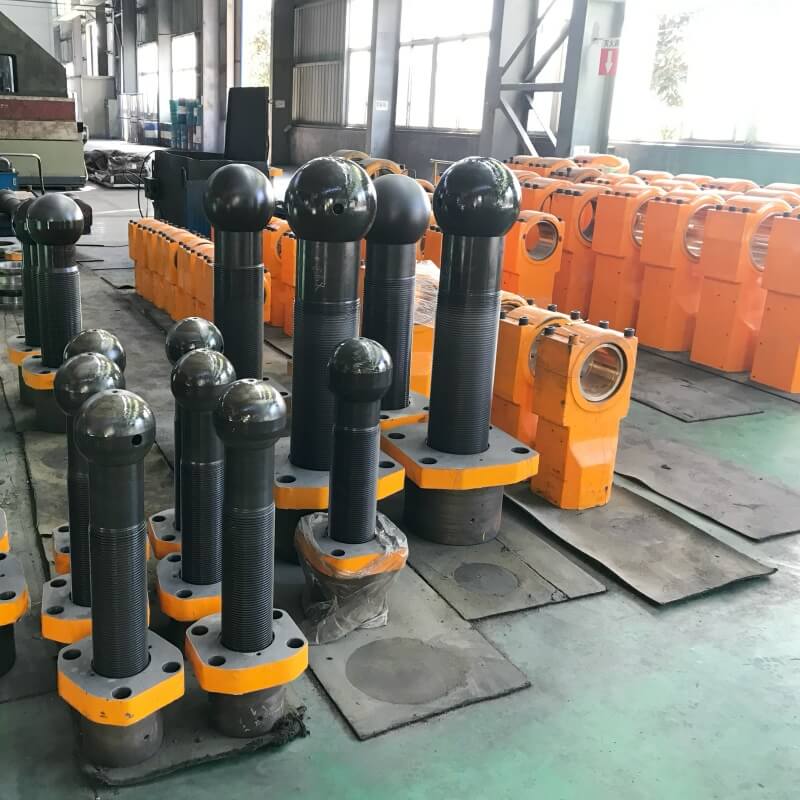

Con-rod and Ball Screw

Cam Controller

Overload Pump

Grease Pump
