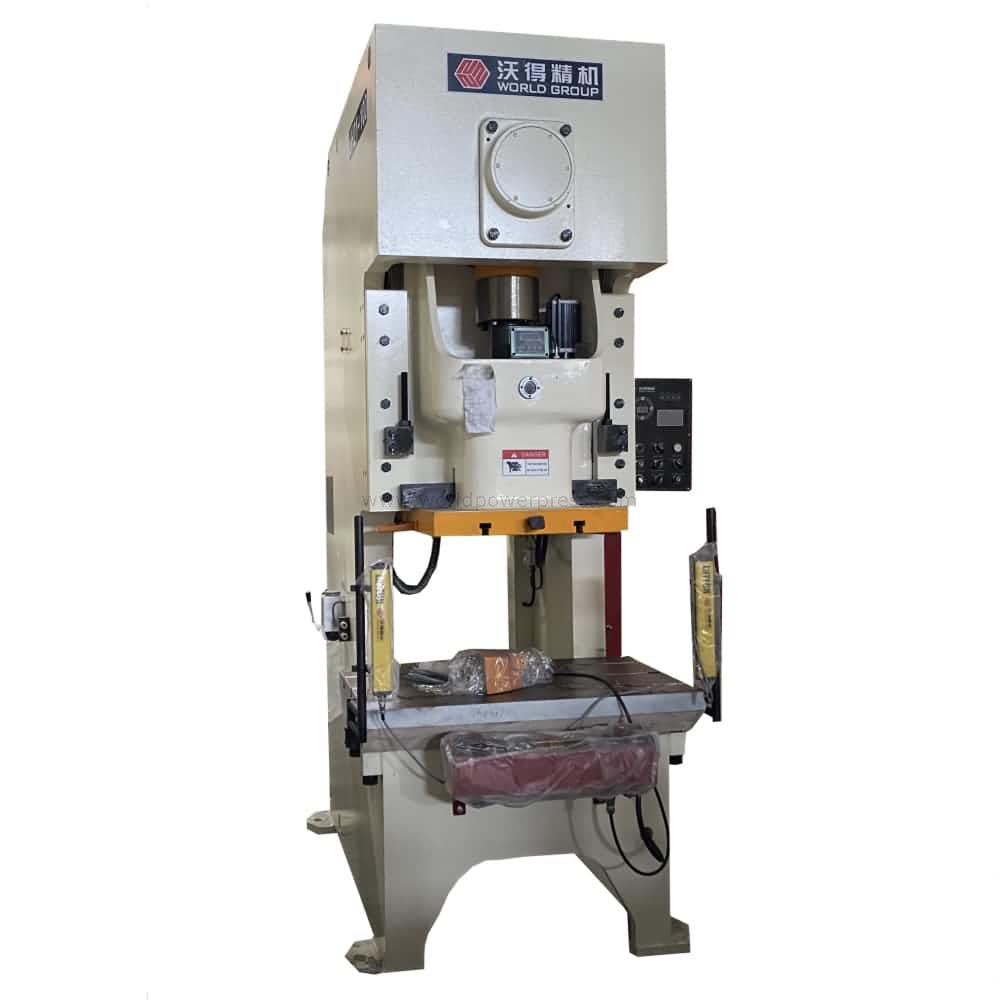

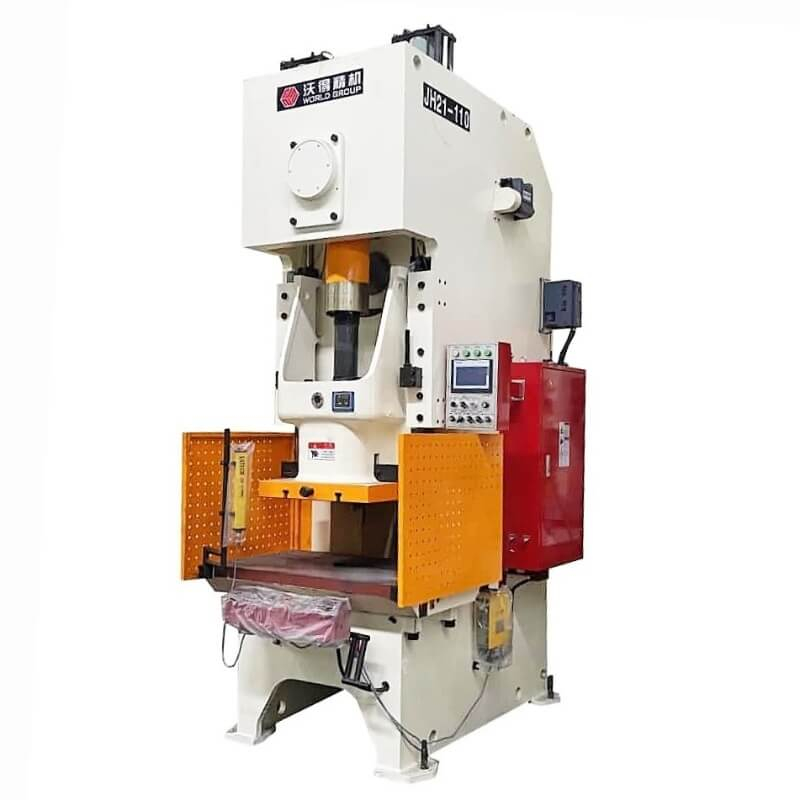

JH21-110
WORLD
The machine features a heavy-duty steel welded frame designed for industrial durability, ensuring stability and resistance to vibration during high-load operations. The structural components undergo precision heat treatment to enhance rigidity and minimize deformation under stress, guaranteeing long-term dimensional accuracy.
Its oil-bath wet type pneumatic clutch and brake system provides smooth engagement and disengagement, with lubrication from an integrated oil reservoir to reduce wear and heat generation. This design improves longevity and operational reliability compared to dry-type systems.
Measurement is based on the inch system, with adjustable stroke modes including:
. Single stroke: Ideal for precise positioning tasks.
. Continuous stroke: Optimized for repetitive high-speed cycles.

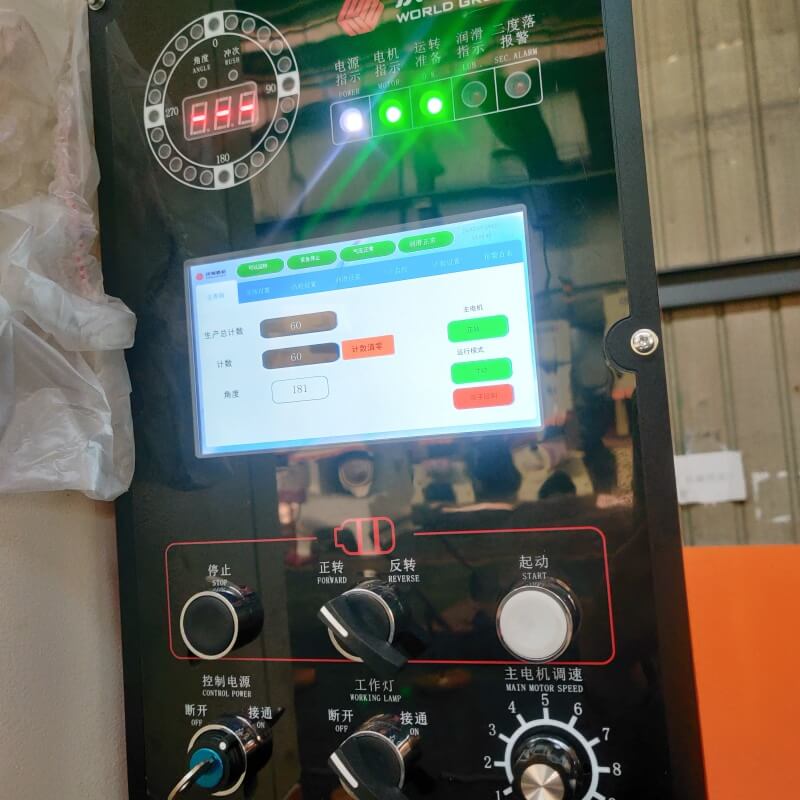

Control options include a dual-hand-button safety system (meeting OSHA standards for operator protection) and an optional foot pedal interface for hands-free operation. Both control modes feature anti-tamper design and emergency stop functionality.
Additional highlights:
. Modular construction for easy maintenance.
. Corrosion-resistant surface treatment on exposed metal parts.

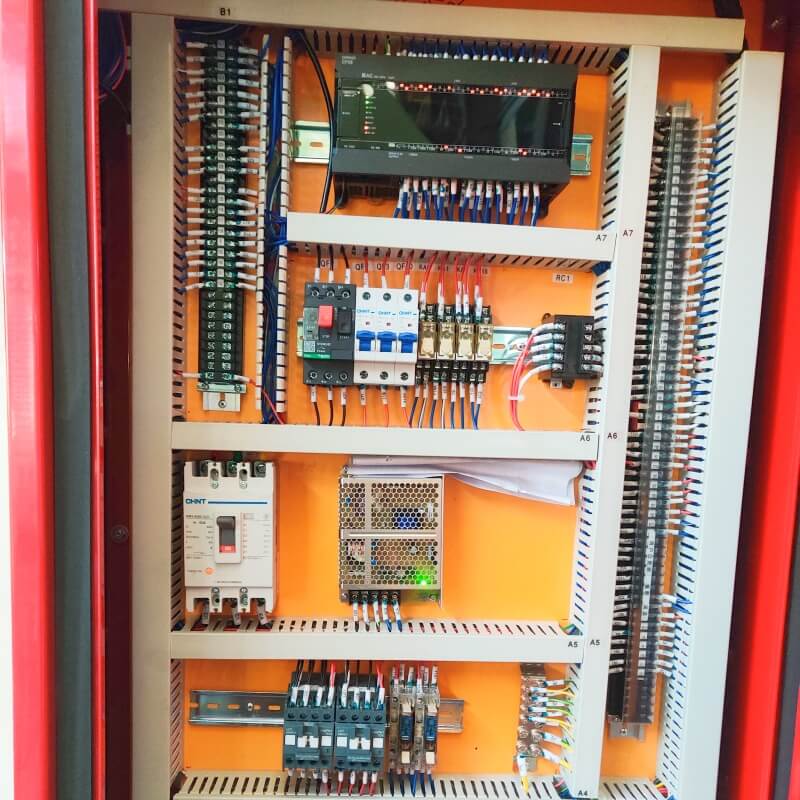

. Compatibility with PLC integration for automated workflows.
Pneumatic Clutch and Brake
Combined pneumatic cltuch and brake. All friction discs are oil immersed inside the flywheel. Lower nosie and working temperature. Better lubrication for longer service life.
Iron Casting Press Ram
High-quality iron casting ram. Six-sided rectangular type guide gibs. Machining with CNC machine and heat treated for hardness. Custom ram plate size and die clamp slots are available.
Grinding Bull Gear
Gear ring is made from high-grade forged steel. Gear teeth undergo precision grinding. This process eliminates micro-irregularities that contribute to noise generation, resulting in a 30-40% reduction in operational noise.
Forged Crankshaft
Superior Strength and Hardness: After heat treatment (quenching and tempering), 42CrMo exhibits high tensile and yield strength, enabling it to withstand intense mechanical loads and repetitive impacts during punching operations.
Overload Protection Pump
When the pressure exceeds a pre-set safety threshold, the system instantly activates a relief valve. This valve redirects excess hydraulic fluid, effectively reducing the pressure and halting the press stroke before any mechanical or structural damage occurs.
Motorized Grease Pump
The automatic grease pump represents a transformative upgrade for press lubrication, marrying precision engineering with smart automation. By ensuring continuous, contamination-free lubrication, it enhances press reliability and reduces lifecycle costs.
The machine features a heavy-duty steel welded frame designed for industrial durability, ensuring stability and resistance to vibration during high-load operations. The structural components undergo precision heat treatment to enhance rigidity and minimize deformation under stress, guaranteeing long-term dimensional accuracy.
Its oil-bath wet type pneumatic clutch and brake system provides smooth engagement and disengagement, with lubrication from an integrated oil reservoir to reduce wear and heat generation. This design improves longevity and operational reliability compared to dry-type systems.
Measurement is based on the inch system, with adjustable stroke modes including:
. Single stroke: Ideal for precise positioning tasks.
. Continuous stroke: Optimized for repetitive high-speed cycles.
Control options include a dual-hand-button safety system (meeting OSHA standards for operator protection) and an optional foot pedal interface for hands-free operation. Both control modes feature anti-tamper design and emergency stop functionality.
Additional highlights:
. Modular construction for easy maintenance.
. Corrosion-resistant surface treatment on exposed metal parts.
. Compatibility with PLC integration for automated workflows.

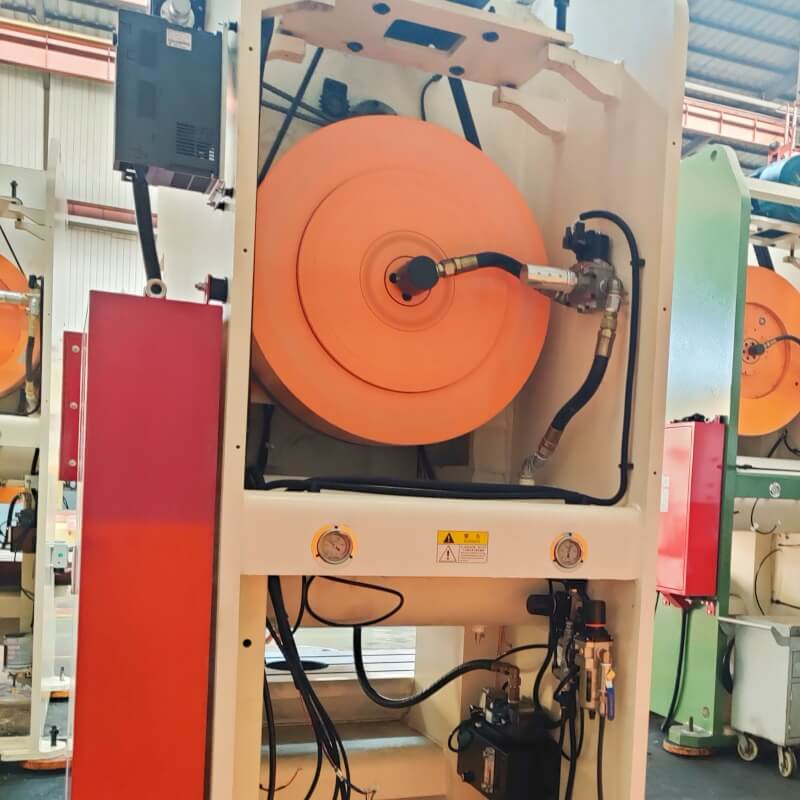

Pneumatic Clutch and Brake
Combined pneumatic cltuch and brake. All friction discs are oil immersed inside the flywheel. Lower nosie and working temperature. Better lubrication for longer service life.
Iron Casting Press Ram
High-quality iron casting ram. Six-sided rectangular type guide gibs. Machining with CNC machine and heat treated for hardness. Custom ram plate size and die clamp slots are available.
Grinding Bull Gear
Gear ring is made from high-grade forged steel. Gear teeth undergo precision grinding. This process eliminates micro-irregularities that contribute to noise generation, resulting in a 30-40% reduction in operational noise.
Forged Crankshaft
Superior Strength and Hardness: After heat treatment (quenching and tempering), 42CrMo exhibits high tensile and yield strength, enabling it to withstand intense mechanical loads and repetitive impacts during punching operations.
Overload Protection Pump
When the pressure exceeds a pre-set safety threshold, the system instantly activates a relief valve. This valve redirects excess hydraulic fluid, effectively reducing the pressure and halting the press stroke before any mechanical or structural damage occurs.
Motorized Grease Pump
The automatic grease pump represents a transformative upgrade for press lubrication, marrying precision engineering with smart automation. By ensuring continuous, contamination-free lubrication, it enhances press reliability and reduces lifecycle costs.
