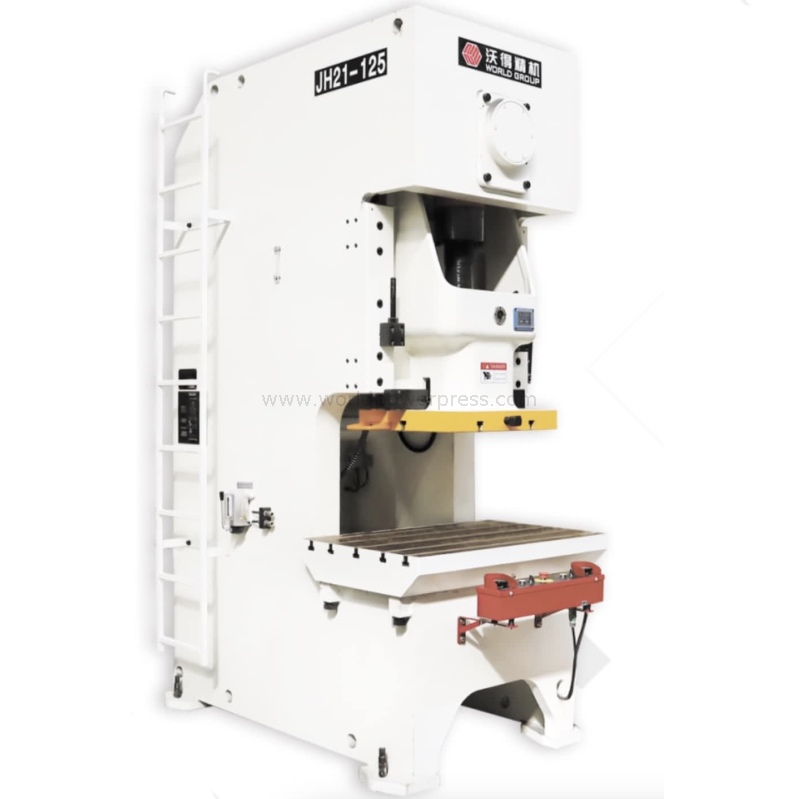

JH21-125
WORLD
-Steel welded gap frame body, temperature treatment for better rigidness
-Oil-bath wet type pneumatic clutch and brake, with dual-safety solenoid valve
-Hydraulic overload protection system
-Automatic central grease lubrication system
-Die shut height adjustable, motorized slide adjustment
Model: JH21-125
Nominal capcity: 125ton
Stroke length: 180mm
Stroke speed: 50spm, and 35-60spm adjustable as optional
Bolster size: 1100x680mm
Ram bottom size: 620x520mm
Shut height: 260-350mm
Motor power: 11kw
Machine weight: 9550kg
Overload protection: hydraulic overload pump
Slide adjustment: brake motor
Lubrication: automatic grease pump
-Steel welded gap frame body, temperature treatment for better rigidness
-Oil-bath wet type pneumatic clutch and brake, with dual-safety solenoid valve
-Hydraulic overload protection system
-Automatic central grease lubrication system
-Die shut height adjustable, motorized slide adjustment
Model: JH21-125
Nominal capcity: 125ton
Stroke length: 180mm
Stroke speed: 50spm, and 35-60spm adjustable as optional
Bolster size: 1100x680mm
Ram bottom size: 620x520mm
Shut height: 260-350mm
Motor power: 11kw
Machine weight: 9550kg
Overload protection: hydraulic overload pump
Slide adjustment: brake motor
Lubrication: automatic grease pump
