JH21-200
WORLD

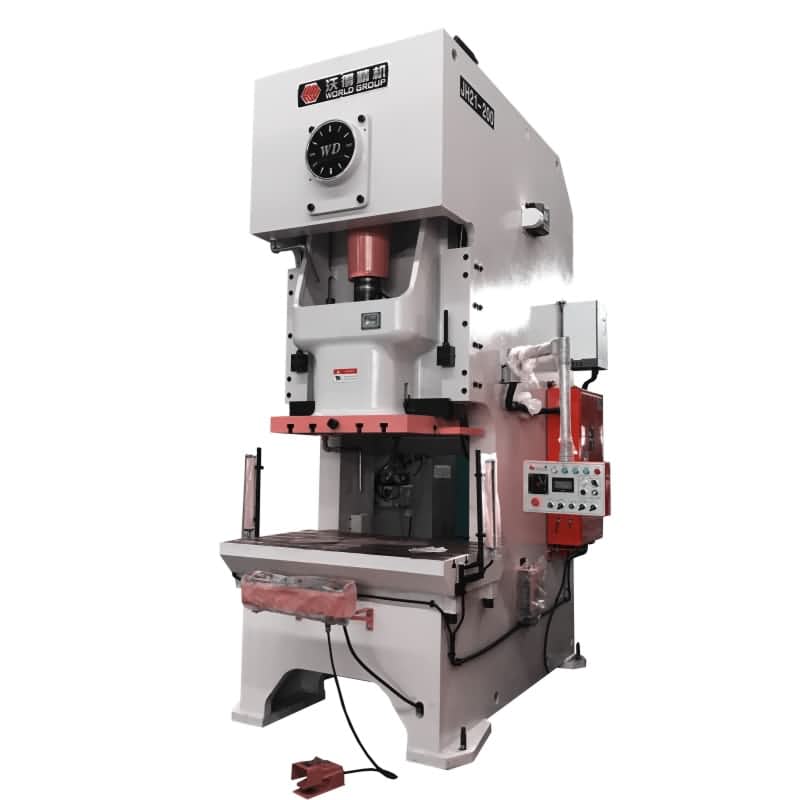

JH21-200 is a single point eccentric press machine for metal parts stamping. The nominal force is 200ton. It is widely used for auto parts stamping industries. This press machine has an eccentric crankshaft to achieve a 220mm stroke length. Wet type clutch provides lower working noise and cleaner stamping parts. Panasonic PLC with HMI provides automatic pressing and easily setting and operation.
-Panasonic brand PLC
-Pneumatic clutch and brake, WORLD patent design
-Hydraulic overload protection system
-Slide adjust flat motor
-Automatic central control grease lubricant system
-Both two-hand-button control and foot pedal control
-frequency inverter for adjustable stroke speeds
-safety light barriers
-piston type pneumatic cushion under the bolster
-metal strip uncoiling machine and feeding machine
ITEM | CODE | UNIT | JH21-200 | |
Nominal Capacity | Pe | KN | 2000 | |
Tonnage Point | mm | 6 | ||
Slide Stroke Length | S | mm | 220 | |
Slide Strokes | Fixed | spm | 45 | |
Variable (optional) | spm | 25-45 | ||
Max. Shut Height | H2 | mm | 450 | |
Shut Height Adjustment | t | mm | 110 | |
Throat Depth | C1 | mm | 430 | |
Distance Between Columns | d1 | mm | 910 | |
Slide Bottom Size | F-B | b | mm | 650 |
L-R | a | mm | 880 | |
Shank Hole Size | Diameter | d | mm | 70 |
Depth | I | mm | 100 | |
Table Size | F-B | D | mm | 840 |
L-R | C | mm | 1390 | |
Thickness | H3 | mm | 180 | |
Table Hole Diameter | ¢ | mm | 250 | |
Overall Dimensions | F-B | A | mm | 2600 |
L-R | B | mm | 1540 | |
Height | H | mm | 3800 | |
Motor Power | KW | 18.5 | ||
Weight (approximate) | kg | 19200 |
