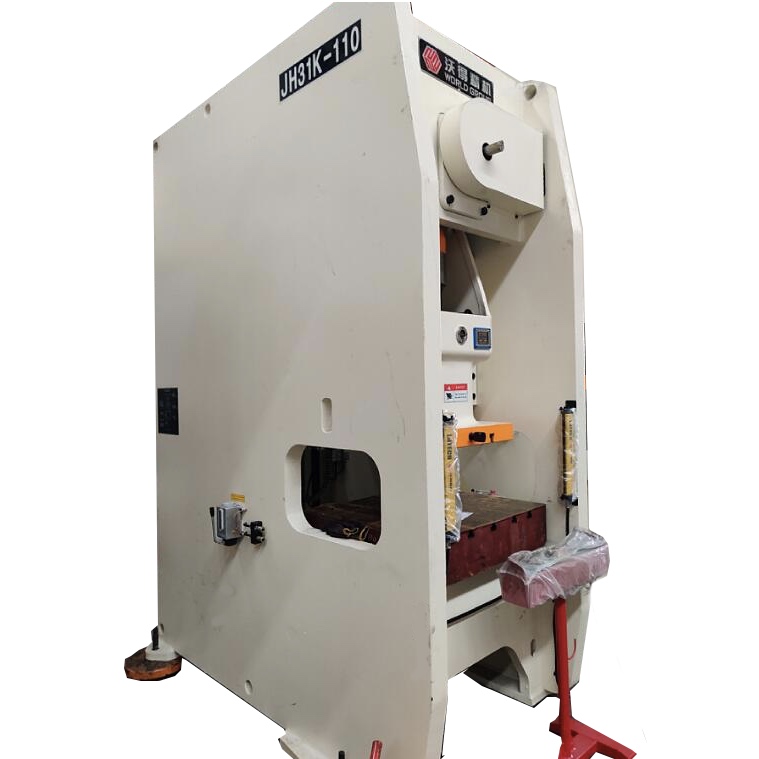

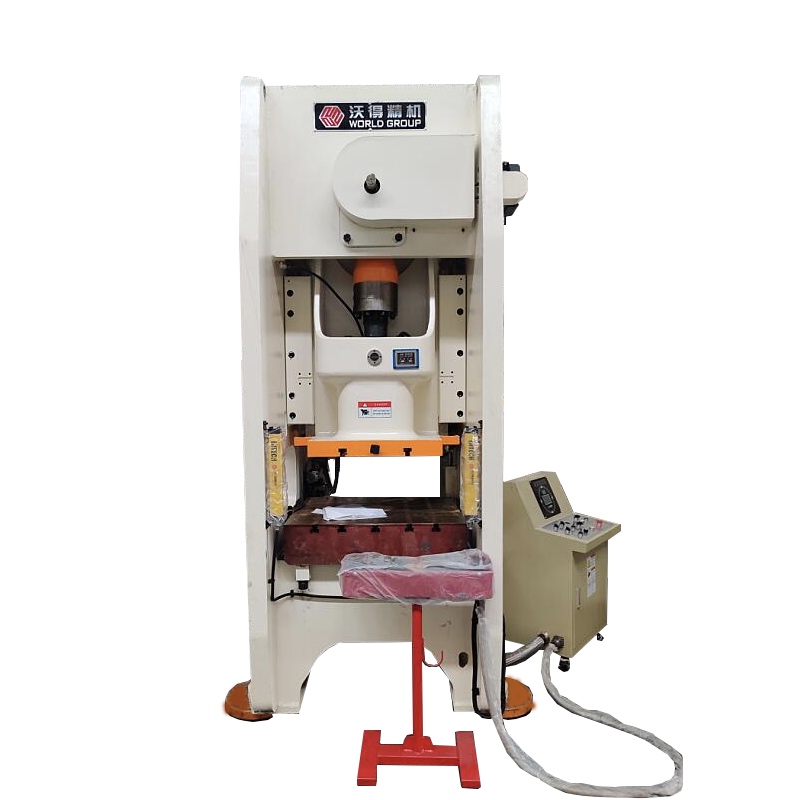

110ton H Frame High Speed Press

110ton crank type high speed press. H frame body with strong rigidity. Dry type pneumatic clutch and brake. Thin oil lubrication system. Speed 150-200 times per minute. Standard equip with inverter. Suitable for motor stators and chains stamping. Can work with fast speed feeder and uncoiler automatically.

Main specifications:

Model No.: JH31K-110

Capacity: 1100kN

Tonnage rated point: 2mm

Stroke length: 30mm

Stroke speeds: 150-200spm

Max. Die shut height: 300mm

Bolster size: 820x700mm

Slide bottom size: 620x520mm

Side window size: 740x350mm

Motor power: 15kw
