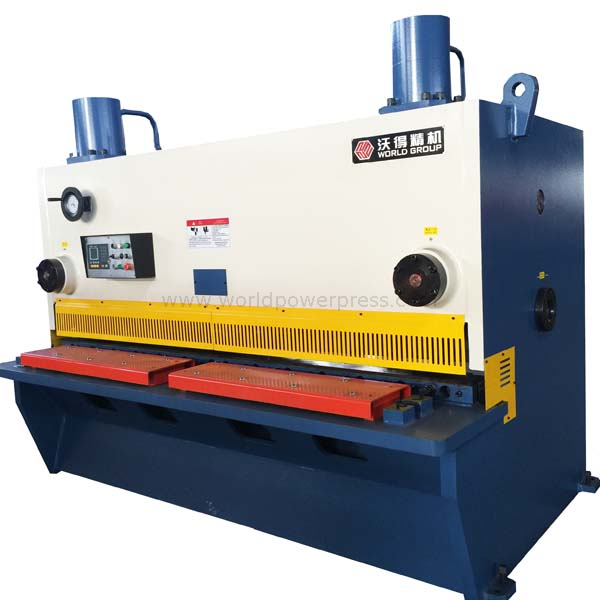

QC11Y-20
WORLD
-maximum cutting thickness: 20mm for carbon steel and 10mm for stainless steel
-cutting width from 2.5 meters to 6 meters
-adjustable shearing angles and blade gaps
-motorized back gauge
-E21s NC control system
-With front support arm
-ball transfer table
| Items | unit | QC11Y-20x2500 | QC11Y-20x3200 | QC11Y-20x4000 |
| Max. cutting thickness | mm | 20 | 20 | 20 |
| Max. cutting width | mm | 2500 | 3200 | 4000 |
| Tensile strength of plate to be cut | N/mm2 | 450 | 450 | 450 |
| Cutting angle | deg | 0.5-2.5 | 0.5-2.5 | 0.5-2.5 |
| Travel distance of back gauge | mm | 20-800 | 20-800 | 20-800 |
| Throat depth | mm | 150 | 150 | 150 |
| Stroke speeds | spm | 10-15 | 10-15 | 8-12 |
| Main motor | kW | 30 | 30 | 30 |
| Voltage | 380V/50HZ/3PH | |||
| Overall dimension (LxWxH) | mm | 3140 | 3880 | 4800 |
| 2250 | 2250 | 2250 | ||
| 2520 | 2700 | 2880 | ||
Hydraulic guillotines have capacity ranges for thickness up to 20mm and length up to 6000mm.
For more specifications, please contact us and send us inquiry.
-maximum cutting thickness: 20mm for carbon steel and 10mm for stainless steel
-cutting width from 2.5 meters to 6 meters
-adjustable shearing angles and blade gaps
-motorized back gauge
-E21s NC control system
-With front support arm
-ball transfer table
| Items | unit | QC11Y-20x2500 | QC11Y-20x3200 | QC11Y-20x4000 |
| Max. cutting thickness | mm | 20 | 20 | 20 |
| Max. cutting width | mm | 2500 | 3200 | 4000 |
| Tensile strength of plate to be cut | N/mm2 | 450 | 450 | 450 |
| Cutting angle | deg | 0.5-2.5 | 0.5-2.5 | 0.5-2.5 |
| Travel distance of back gauge | mm | 20-800 | 20-800 | 20-800 |
| Throat depth | mm | 150 | 150 | 150 |
| Stroke speeds | spm | 10-15 | 10-15 | 8-12 |
| Main motor | kW | 30 | 30 | 30 |
| Voltage | 380V/50HZ/3PH | |||
| Overall dimension (LxWxH) | mm | 3140 | 3880 | 4800 |
| 2250 | 2250 | 2250 | ||
| 2520 | 2700 | 2880 | ||
Hydraulic guillotines have capacity ranges for thickness up to 20mm and length up to 6000mm.
For more specifications, please contact us and send us inquiry.
