| Quantity: | |
|---|---|

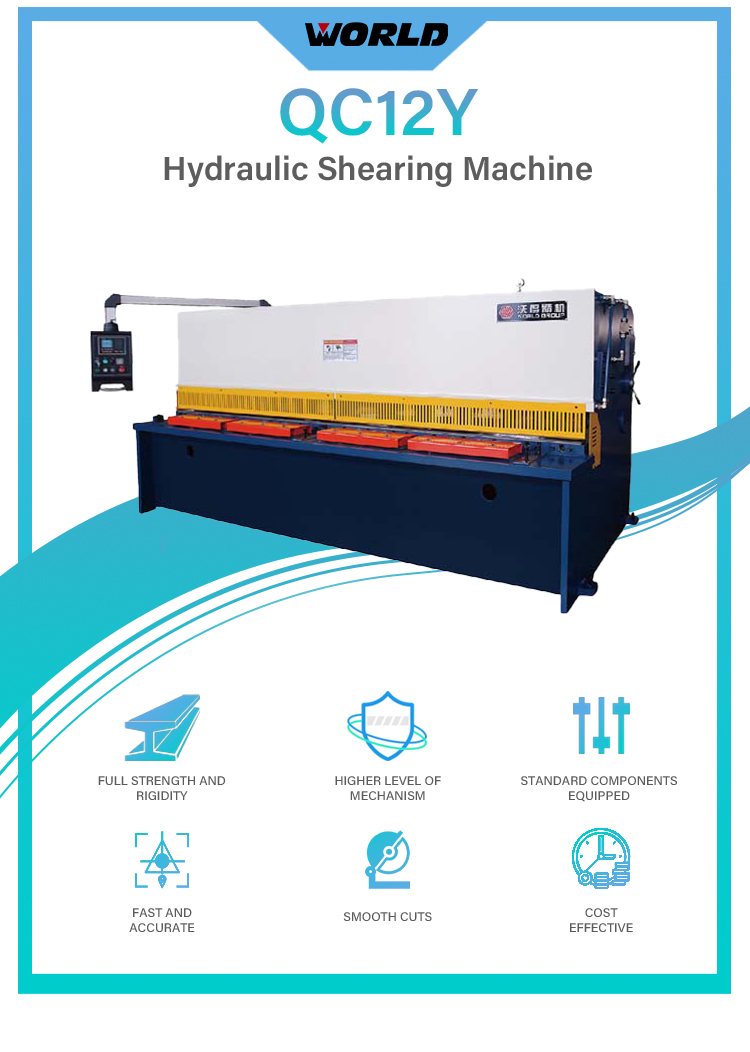

QC12Y-4x2500
-swing beam type cutting knife carrier
-nitorgen cylinders for back stroke
-motorized back gauge
-with front support arms
-E21s NC control system with LCD screen
| Items | unit | QC12Y-4x2500 | QC12Y-4x3200 | QC12Y-4x4000 |
| Max. cutting thickness | mm | 4 | 4 | 4 |
| Max. cutting width | mm | 2500 | 3200 | 4000 |
| Tensile strength of plate to be cut | N/mm2 | 450 | 450 | 450 |
| Cutting angle | deg | 1.5 | 1.5 | 1.5 |
| Travel distance of back gauge | mm | 20-600 | 20-600 | 20-600 |
| Throat depth | mm | 150 | 150 | 150 |
| Stroke speeds | spm | 16 | 14 | 10 |
| Main motor | kW | 4 | 5.5 | 5.5 |
| Voltage | 380V/50HZ/3PH | 380V/50HZ/3PH | 380V/50HZ/3PH | |
| Overall dimension (LxWxH) | mm | 3040 | 3840 | 4800 |
| 1500 | 1500 | 1500 | ||
| 1500 | 1600 | 1700 |
-swing beam type cutting knife carrier
-nitorgen cylinders for back stroke
-motorized back gauge
-with front support arms
-E21s NC control system with LCD screen
| Items | unit | QC12Y-4x2500 | QC12Y-4x3200 | QC12Y-4x4000 |
| Max. cutting thickness | mm | 4 | 4 | 4 |
| Max. cutting width | mm | 2500 | 3200 | 4000 |
| Tensile strength of plate to be cut | N/mm2 | 450 | 450 | 450 |
| Cutting angle | deg | 1.5 | 1.5 | 1.5 |
| Travel distance of back gauge | mm | 20-600 | 20-600 | 20-600 |
| Throat depth | mm | 150 | 150 | 150 |
| Stroke speeds | spm | 16 | 14 | 10 |
| Main motor | kW | 4 | 5.5 | 5.5 |
| Voltage | 380V/50HZ/3PH | 380V/50HZ/3PH | 380V/50HZ/3PH | |
| Overall dimension (LxWxH) | mm | 3040 | 3840 | 4800 |
| 1500 | 1500 | 1500 | ||
| 1500 | 1600 | 1700 |
