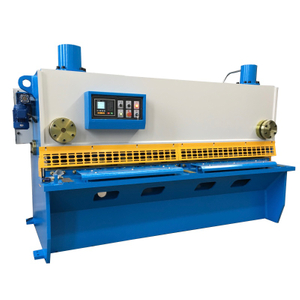

QC12Y Swing Beam Type NC Hydraulic Shearing Machine

This NC control swing beam type hydraulic shearing machine adopts a swing type cutting blade carrier. Cutting speed is fast while the cutting angle is fixed. Steel plate welded structure, high quality hydraulic cylinders with famous brand hydraulic units including the pump and valves. Standard equip with Estun E21 NC control system. Delem DA360 CNC control system is optional.

Availability:

Quantity:



Inquire Add to Basket

Model:
QC12Y

Technical Parameters

QC12Y Series Swing Beam Type Hydraulic Shearing Machine

-E21s NC control system

-Siemens motor

-Sunny pump

-Rexroth valve

-Steel welded frame

-With sheet holding spring fingers

-Motorized backgauge

-Nitrogen cylinders for back stroke

Hydraulic shearing machine specifications

Items	unit	QC12Y-4x2500	QC12Y-4x3200	QC12Y-4x4000	QC12Y-6x2500	QC12Y-6x3200	QC12Y-6x4000
Max. cutting thickness	mm	4	4	4	6	6	6
Max. cutting width	mm	2500	3200	4000	2500	3200	4000
Tensile strength of plate to be cut	N/mm2	450	450	450	450	450	450
Cutting angle	deg	1.5	1.5	1.5	1.5	1.5	1.5
Travel distance of back gauge	mm	20-600	20-600	20-600	20-600	20-600	20-600
Throat depth	mm	150	150	150	150	150	150
Stroke speeds	spm	16	14	10	15	12	12
Main motor	kW	4	5.5	5.5	7.5	7.5	7.5
Voltage		380V/50HZ/3PH	380V/50HZ/3PH	380V/50HZ/3PH	380V/50HZ/3PH	380V/50HZ/3PH	380V/50HZ/3PH
Overall dimension (LxWxH)	mm	3040	3840	4800	3040	3840	4800
		1500	1500	1500	1650	1650	1650
		1500	1600	1700	1700	1700	1700

Items	unit	QC12Y-8x2500	QC12Y-8x3200	QC12Y-8x4000	QC12Y-10x2500	QC12Y-10x3200	QC12Y-10x4000
Max. cutting thickness	mm	8	8	8	10	10	10
Max. cutting width	mm	2500	3200	4000	2500	3200	4000
Tensile strength of plate to be cut	N/mm2	450	450	450	450	450	450
Cutting angle	deg	1.5	1.5	1.5	1.5	1.5	1.5
Travel distance of back gauge	mm	20-600	20-600	20-600	20-600	20-600	20-600
Throat depth	mm	150	150	150	150	150	150
Stroke speeds	spm	14	12	10	12	10	10
Main motor	kW	7.5	7.5	11	11	15	15
Voltage		380V/50HZ/3PH	380V/50HZ/3PH	380V/50HZ/3PH	380V/50HZ/3PH	380V/50HZ/3PH	380V/50HZ/3PH
Overall dimension (LxWxH)	mm	3040	3860	4800	3040	3860	4800
		1700	1700	1700	1700	1700	2100
		1700	1700	1700	1700	1700	2000
