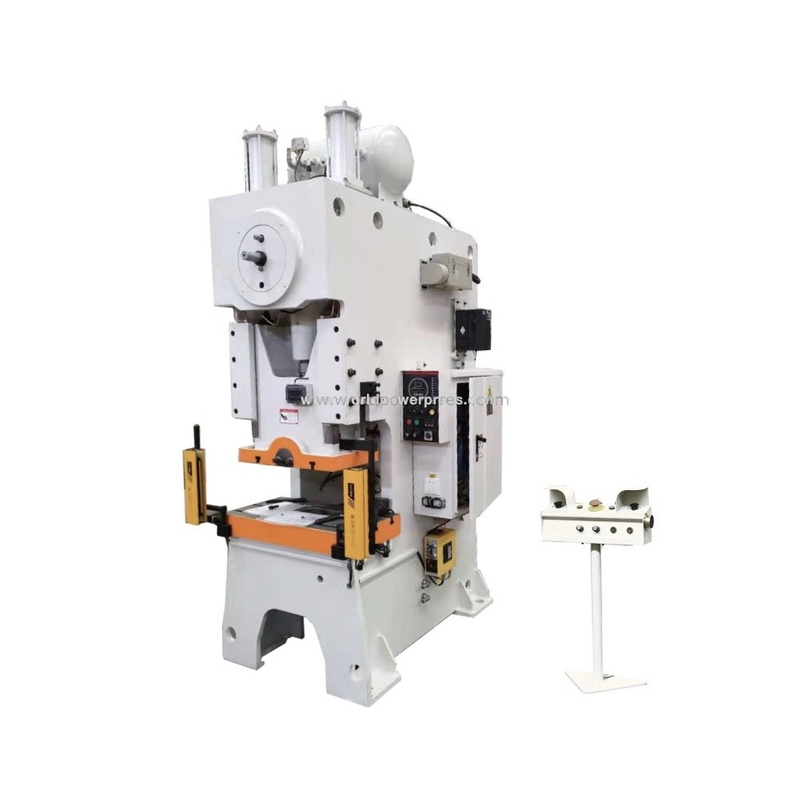

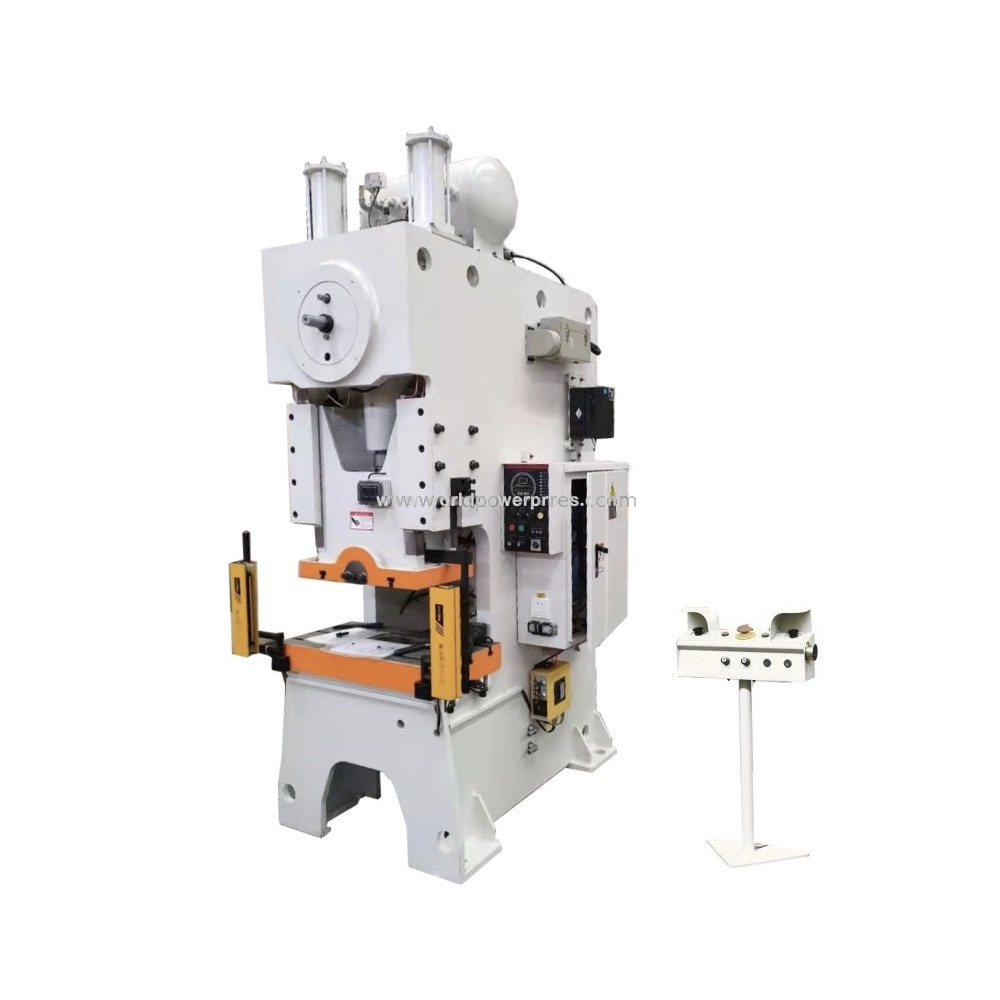

JH21-60L
WORLD
-stroke lenght adjustable
-manual adjustment of stroke length
-dry type pneumatic clutch
| JH21-60L | ||||
| Capacity | kN | 600 | ||
| Nominal Stroke | mm | 4 | ||
| Slide Stroke | mm | 10-150 | ||
| SPM | Fixed | min-1 | 70 | |
| Variable | min-1 | 60-80 | ||
| Max. Die Height | mm | 300 | ||
| Die Height Adjustment | mm | 80 | ||
| Throat Depth | mm | 300 | ||
| Between Columns | mm | 620 | ||
| Bolster | LR | mm | 900 | |
| FB | mm | 580 | ||
| Thk | mm | 110 | ||
| Bolster Opening | mm | φ200×40 | ||
| (Up Hole Dia.×Dpth×Low Hole Dia.) | ×φ180 | |||
| Slide Area | LR | mm | 680 | |
| FB | mm | 400 | ||
| Shank Hole | Dia. | mm | φ50 | |
| Dpth | mm | 80 | ||
| Main Motor Power | kW | 7.5 | ||
| Dimensions | FB | mm | 1680 | |
| LR | mm | 1260 | ||
| H | mm | 3050 | ||
| Net Weight | kg | 6500 | ||
-stroke lenght adjustable
-manual adjustment of stroke length
-dry type pneumatic clutch
| JH21-60L | ||||
| Capacity | kN | 600 | ||
| Nominal Stroke | mm | 4 | ||
| Slide Stroke | mm | 10-150 | ||
| SPM | Fixed | min-1 | 70 | |
| Variable | min-1 | 60-80 | ||
| Max. Die Height | mm | 300 | ||
| Die Height Adjustment | mm | 80 | ||
| Throat Depth | mm | 300 | ||
| Between Columns | mm | 620 | ||
| Bolster | LR | mm | 900 | |
| FB | mm | 580 | ||
| Thk | mm | 110 | ||
| Bolster Opening | mm | φ200×40 | ||
| (Up Hole Dia.×Dpth×Low Hole Dia.) | ×φ180 | |||
| Slide Area | LR | mm | 680 | |
| FB | mm | 400 | ||
| Shank Hole | Dia. | mm | φ50 | |
| Dpth | mm | 80 | ||
| Main Motor Power | kW | 7.5 | ||
| Dimensions | FB | mm | 1680 | |
| LR | mm | 1260 | ||
| H | mm | 3050 | ||
| Net Weight | kg | 6500 | ||
