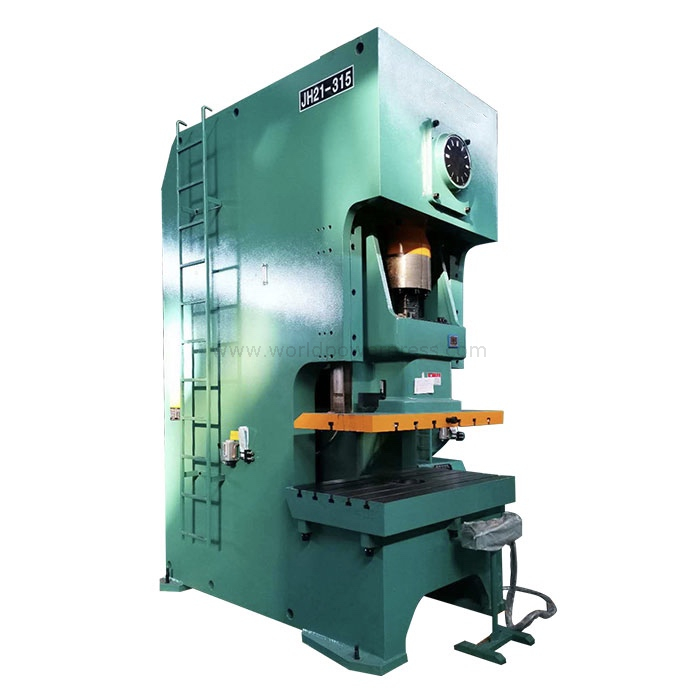

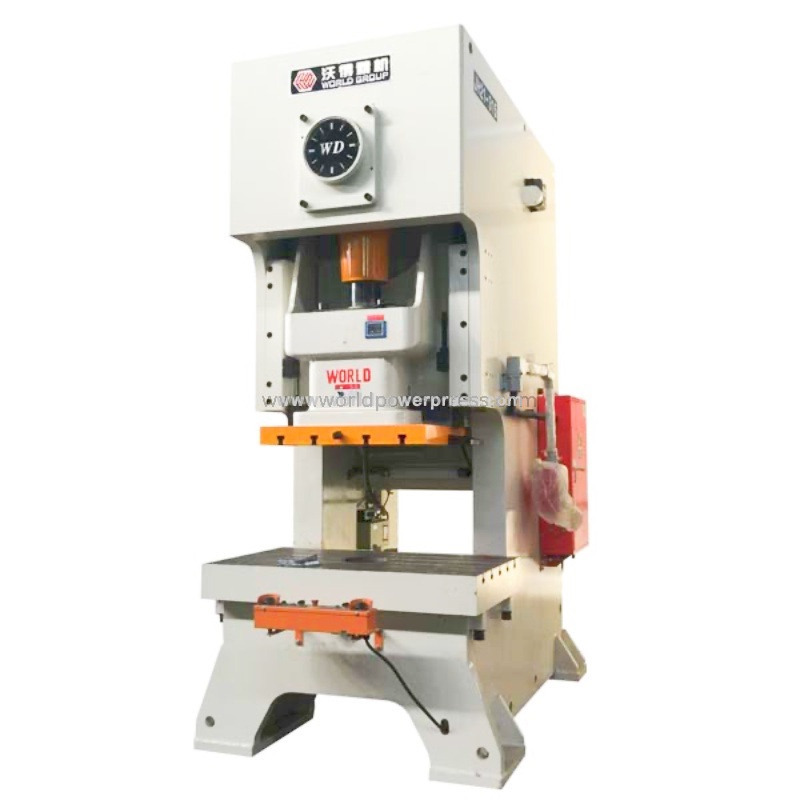

300 Ton C-frame Mechanical Metal Stamping Press Machine

300 ton mechanical stamping press machine features:

-C-frame steel welded body, anealing treatment

-Oil-bath wet type pneumaic clutch and brake

-Single crankshaft transmission

-Ram adjustment by flat motor

-Automatic central grease lubrication

Parameters:

Model number: JH21-315

Press machine nominal capacity: 3150KN

Press stroke length: 220mm

Stroke speed: 30 strokes per minute

Max. Die shut height: 500mm

Shut height adjustment: 120mm

Bolster size: 1540x880mm

Ram plate size: 900x700mm

Motor power: 30kw

Press gross weight: 24600kg
