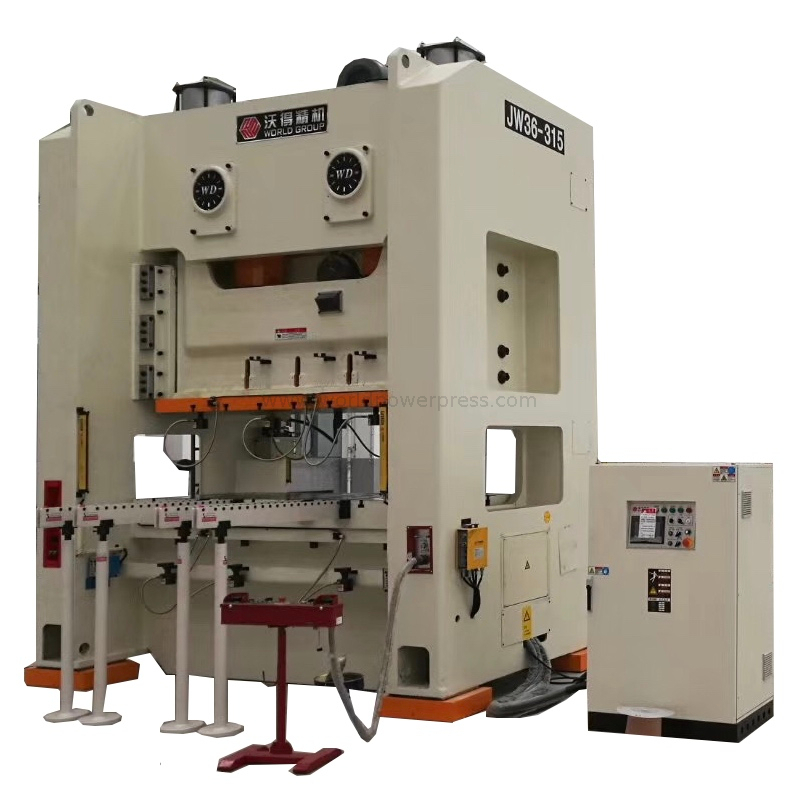

JW36-315
WORLD
-standard bolster size 2500x1000mm
-bolster size is customizable
-oil bath wet type clutch and brake
-PLC control, HMI in English with maulfunction monitor
-automatic accessoies such as coil feeding line is optional
| ITEM | CODE | UNIT | JW36-315 | |
| Nominal Capacity | KN | 3150 | ||
| Slide Stroke Length | S | mm | 280 | |
| Slide Stroke Speed | Fixed | spm | 30 | |
| Variable (optional) | spm | 20-35 | ||
| Max. Die Shut Height | H2 | mm | 550 | |
| Die Shut Height Adjustment | t | mm | 120 | |
| Side Openning Size | F-B | E | mm | 950 |
| Height | F | mm | 460 | |
| Distance Between Uprights | G | mm | 2570 | |
| Bolster Size | F-B | D | mm | 1000 |
| L-R | C | mm | 2500 | |
| Thickness | H3 | mm | 190 | |
| Slide Bottom Size | F-B | b | mm | 900 |
| L-R | a | mm | 2200 | |
| Bolster Upper Surface Height | H1 | mm | 1285 | |
| Overall Dimensions | F-B | A | mm | 2750 |
| L-R | B | mm | 3600 | |
| Height | H | mm | 4900 | |
| Motor Power | KW | 37 | ||
| Weight (approximate) | kg | 41500 | ||
-standard bolster size 2500x1000mm
-bolster size is customizable
-oil bath wet type clutch and brake
-PLC control, HMI in English with maulfunction monitor
-automatic accessoies such as coil feeding line is optional
| ITEM | CODE | UNIT | JW36-315 | |
| Nominal Capacity | KN | 3150 | ||
| Slide Stroke Length | S | mm | 280 | |
| Slide Stroke Speed | Fixed | spm | 30 | |
| Variable (optional) | spm | 20-35 | ||
| Max. Die Shut Height | H2 | mm | 550 | |
| Die Shut Height Adjustment | t | mm | 120 | |
| Side Openning Size | F-B | E | mm | 950 |
| Height | F | mm | 460 | |
| Distance Between Uprights | G | mm | 2570 | |
| Bolster Size | F-B | D | mm | 1000 |
| L-R | C | mm | 2500 | |
| Thickness | H3 | mm | 190 | |
| Slide Bottom Size | F-B | b | mm | 900 |
| L-R | a | mm | 2200 | |
| Bolster Upper Surface Height | H1 | mm | 1285 | |
| Overall Dimensions | F-B | A | mm | 2750 |
| L-R | B | mm | 3600 | |
| Height | H | mm | 4900 | |
| Motor Power | KW | 37 | ||
| Weight (approximate) | kg | 41500 | ||
