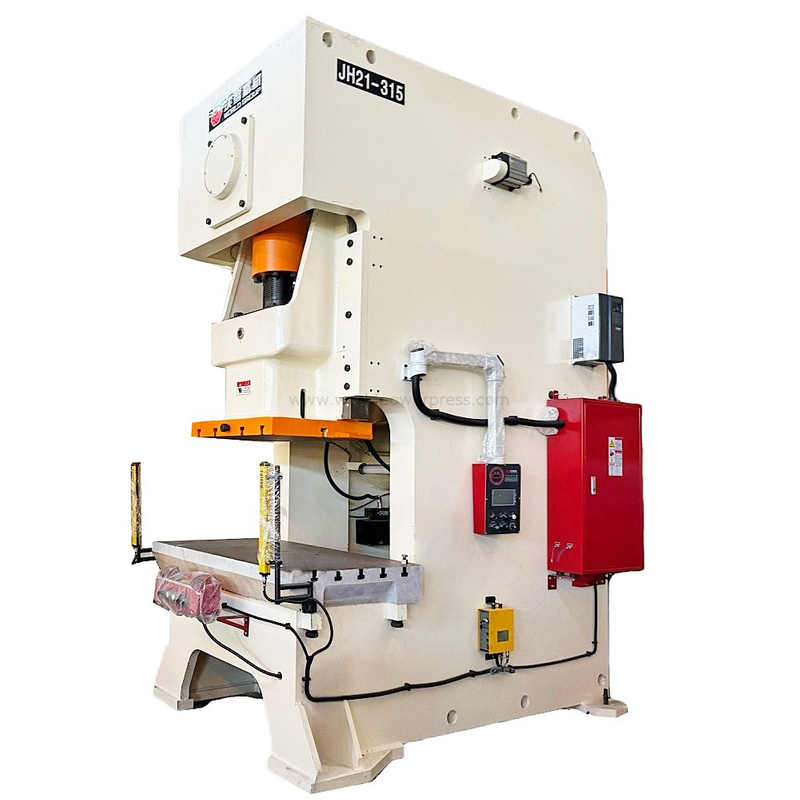

C type pneumatic power press machine with 300ton capacity. This press machine adopts a combined wet type pneumatic clutch and brake. Dual-safety solenoid valve is used to control the clutch safely. C type body is steel welded after annealing treatment for more strength. The pneumatic press machine is suitable for auto parts stamping, for progressive die stamping of small metal parts.
-Rectangular type six faces ram guides, higher precision
-Oil-bath wet type pneumaic clutch and brake
-Single crankshaft transmission
-Ram adjustment by flat motor
-Automatic central grease lubrication
-Match with coil roll feeder and transfer manipulator
300 ton mechanical power press machine features:
-Optimized structure, compact ans strong
-C-frame steel welded body, anealing treatment
-Rectangular type six faces ram guides, higher precision
-Oil-bath wet type pneumaic clutch and brake
-Single crankshaft transmission
-Ram adjustment by flat motor
-Automatic central grease lubrication
-Match with coil roll feeder and transfer manipulator
Model
JH21-315
Nominal Capacity
3150kN
Rated Tonnage Point
7mm
Stroke Length
160mm
Stroke Speed
35-58spm
Max. Die Shut Height
530mm
Shut Height Adjustment
120mm
Throat Depth
450mm
Distance Between Columns
980mm
Bolster Size
1540mm x 880mm
Bolster Thickness
190mm
Slide Area
900mm x 700mm
Motor Power
30kW
Dimensions
2720mm x 1680mm x 3850mm
