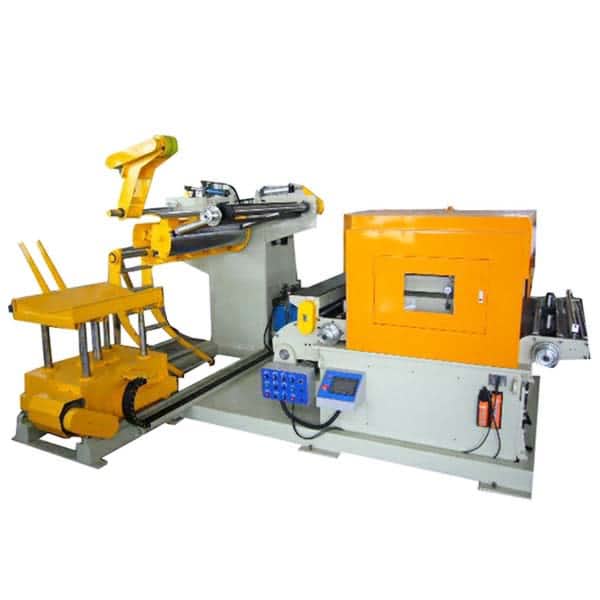

This 3 in 1 type straightening and feeding machine adopts PLC central control. Operation can set the feeding pitch, feeding speed and feeding steps through the HMI. Feeder can work with press machine and controlled by press PLC too. Uncoiling part adopts hydraulic expansion system. Coil hold arm ensures the strip not loose. A bending arm is equipped to help inserting the thick sheet inside the straightening head. All are automatically.
| Item/Model | TNCF4-300 | TNCF4-400 | TNCF4-500 | TNCF4-600 | TNCF4-700 | TNCF4-800 | TNCF4-1000 | TNCF4-1300 |
| Width of Material(mm) | 75-300 | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 | 75-1000 | 75-1300 |
| Thickness of Material(mm) | 0.5-4.5 | |||||||
| Max.coil Weight(kg) | 2T | 3T | 5T | 8T | ||||
| Coil L.D.(mm) | 508 | |||||||
| Max.Coil O.D.(mm) | 1500 | |||||||
| Max.Speed(m/min) | 16 | |||||||
| Feed Pitch Accuracy(mm) | ±0.15 | |||||||
| Feed ROLL | Upper1 / Lower1 | |||||||
| Straighten ROLL | Upper4 / Lower3 | |||||||
| Voltage | 380VAc / 60Hz | |||||||
| Air power supply | 5kg / CM² | |||||||
| Uncoiler Expansion | Hydraulic | |||||||
| Servo Motor(kw) | AC2.9 | AC4.4 | AC5.5 | |||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | 3 KW | |||||
| Coil Car | 1 optional | standard | ||||||
| Pass line | ±100 MM | |||||||
| Item/Model | TNCF5-400 | TNCF5-500 | TNCF5-600 | TNCF5-700 | TNCF5-800 | TNCF5-1000 | TNCF5-1300 | TNCF5-1500 |
| Width of Material(mm) | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 | 75-1000 | 75-1300 | 75-1500 |
| Thickness of Material(mm) | 0.6-6 | |||||||
| Max.coil Weight(kg) | 3T | 5T | 8T | |||||
| weight can be customized | can be customized | customized | ||||||
| Coil L.D.(mm) | 508 | |||||||
| Max.Coil O.D.(mm) | 1500 | |||||||
| Max.Speed(m/min) | 16 | |||||||
| Feed Pitch Accuracy(mm) | ±0.15 | |||||||
| Feed ROLL | Upper1 / Lower1 | |||||||
| Straighten ROLL | Upper4 / Lower3 | |||||||
| Voltage | 380VAc / 60Hz | |||||||
| Air power supply | 5kg / CM² | |||||||
| Uncoiler Expansion | Hydraulic | |||||||
| Servo Motor(kw) | AC2.9 | AC4.4 | AC5.5 | AC7.5 | ||||
| with servo reducer | with servo reducer | with servo reducer | with servo reducer | |||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | 3 KW | |||||
| Coil Car | optional | standard | ||||||
This 3 in 1 type straightening and feeding machine adopts PLC central control. Operation can set the feeding pitch, feeding speed and feeding steps through the HMI. Feeder can work with press machine and controlled by press PLC too. Uncoiling part adopts hydraulic expansion system. Coil hold arm ensures the strip not loose. A bending arm is equipped to help inserting the thick sheet inside the straightening head. All are automatically.
| Item/Model | TNCF4-300 | TNCF4-400 | TNCF4-500 | TNCF4-600 | TNCF4-700 | TNCF4-800 | TNCF4-1000 | TNCF4-1300 |
| Width of Material(mm) | 75-300 | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 | 75-1000 | 75-1300 |
| Thickness of Material(mm) | 0.5-4.5 | |||||||
| Max.coil Weight(kg) | 2T | 3T | 5T | 8T | ||||
| Coil L.D.(mm) | 508 | |||||||
| Max.Coil O.D.(mm) | 1500 | |||||||
| Max.Speed(m/min) | 16 | |||||||
| Feed Pitch Accuracy(mm) | ±0.15 | |||||||
| Feed ROLL | Upper1 / Lower1 | |||||||
| Straighten ROLL | Upper4 / Lower3 | |||||||
| Voltage | 380VAc / 60Hz | |||||||
| Air power supply | 5kg / CM² | |||||||
| Uncoiler Expansion | Hydraulic | |||||||
| Servo Motor(kw) | AC2.9 | AC4.4 | AC5.5 | |||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | 3 KW | |||||
| Coil Car | 1 optional | standard | ||||||
| Pass line | ±100 MM | |||||||
| Item/Model | TNCF5-400 | TNCF5-500 | TNCF5-600 | TNCF5-700 | TNCF5-800 | TNCF5-1000 | TNCF5-1300 | TNCF5-1500 |
| Width of Material(mm) | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 | 75-1000 | 75-1300 | 75-1500 |
| Thickness of Material(mm) | 0.6-6 | |||||||
| Max.coil Weight(kg) | 3T | 5T | 8T | |||||
| weight can be customized | can be customized | customized | ||||||
| Coil L.D.(mm) | 508 | |||||||
| Max.Coil O.D.(mm) | 1500 | |||||||
| Max.Speed(m/min) | 16 | |||||||
| Feed Pitch Accuracy(mm) | ±0.15 | |||||||
| Feed ROLL | Upper1 / Lower1 | |||||||
| Straighten ROLL | Upper4 / Lower3 | |||||||
| Voltage | 380VAc / 60Hz | |||||||
| Air power supply | 5kg / CM² | |||||||
| Uncoiler Expansion | Hydraulic | |||||||
| Servo Motor(kw) | AC2.9 | AC4.4 | AC5.5 | AC7.5 | ||||
| with servo reducer | with servo reducer | with servo reducer | with servo reducer | |||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | 3 KW | |||||
| Coil Car | optional | standard | ||||||
