JH21-160
WORLD

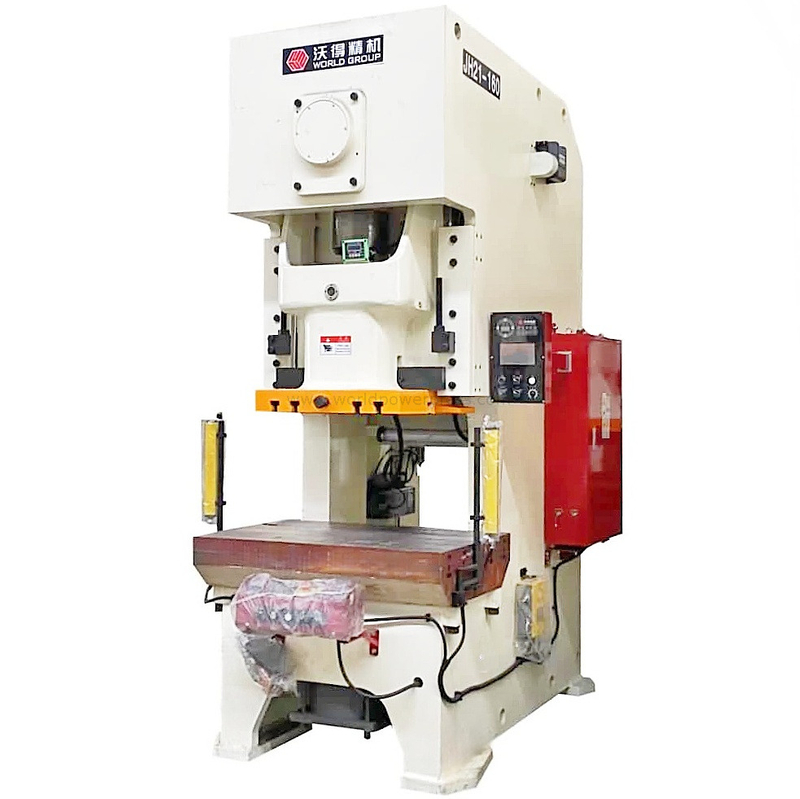

Steel plate welded body. Gap frame and open back. Body is annealing treatment and then sand blasting. Machining by PAMA CNC milling center with high precision. Crankshaft is 42CrMo forging for good surface hardness. Bronze bush with grease lubrication. Six faces lengthened slide guide rials with bronze plate. PLC control, hydraulic overload protection system. Slide adjustment by flat motor. Two pneumatic cylinders are fixed on the top to balance the slide and upper die weight.
-Panasonic brand PLC and Kinco HMI
-Pneumatic clutch and brake, WORLD patent design
-Hydraulic overload protection system
-Slide adjust flat motor
-Automatic central control grease lubricant system
-Both two-hand-button control and foot pedal control
-Anti-vibraton mounting pads
-frequency inverter for adjustable stroke speeds
-safety light barriers
-piston type pneumatic cushion under the bolster
-metal strip uncoiling machine and feeding machine
-die safety block
-die quick change device
| ITEM | CODE | UNIT | JH21-160 | |
| Nominal Capacity | Pe | KN | 1600 | |
| Tonnage Point | mm | 6 | ||
| Slide Stroke Length | S | mm | 200 | |
| Slide Strokes | Fixed | spm | 45 | |
| Variable (optional) | spm | 30-45 | ||
| Max. Shut Height | H2 | mm | 400 | |
| Shut Height Adjustment | t | mm | 100 | |
| Throat Depth | C1 | mm | 400 | |
| Distance Between Columns | d1 | mm | 676 | |
| Slide Bottom Size | F-B | b | mm | 580 |
| L-R | a | mm | 700 | |
| Shank Hole Size | Diameter | d | mm | 70 |
| Depth | I | mm | 100 | |
| Table Size | F-B | D | mm | 760 |
| L-R | C | mm | 1175 | |
| Thickness | H3 | mm | 165 | |
| Table Hole Diameter | ¢ | mm | 220 | |
| Overall Dimensions | F-B | A | mm | 2305 |
| L-R | B | mm | 1420 | |
| Height | H | mm | 3215 | |
| Motor Power | KW | 15 | ||
| Weight (approximate) | kg | 13600 | ||
Steel plate welded body. Gap frame and open back. Body is annealing treatment and then sand blasting. Machining by PAMA CNC milling center with high precision. Crankshaft is 42CrMo forging for good surface hardness. Bronze bush with grease lubrication. Six faces lengthened slide guide rials with bronze plate. PLC control, hydraulic overload protection system. Slide adjustment by flat motor. Two pneumatic cylinders are fixed on the top to balance the slide and upper die weight.
-Panasonic brand PLC and Kinco HMI
-Pneumatic clutch and brake, WORLD patent design
-Hydraulic overload protection system
-Slide adjust flat motor
-Automatic central control grease lubricant system
-Both two-hand-button control and foot pedal control
-Anti-vibraton mounting pads
-frequency inverter for adjustable stroke speeds
-safety light barriers
-piston type pneumatic cushion under the bolster
-metal strip uncoiling machine and feeding machine
-die safety block
-die quick change device
| ITEM | CODE | UNIT | JH21-160 | |
| Nominal Capacity | Pe | KN | 1600 | |
| Tonnage Point | mm | 6 | ||
| Slide Stroke Length | S | mm | 200 | |
| Slide Strokes | Fixed | spm | 45 | |
| Variable (optional) | spm | 30-45 | ||
| Max. Shut Height | H2 | mm | 400 | |
| Shut Height Adjustment | t | mm | 100 | |
| Throat Depth | C1 | mm | 400 | |
| Distance Between Columns | d1 | mm | 676 | |
| Slide Bottom Size | F-B | b | mm | 580 |
| L-R | a | mm | 700 | |
| Shank Hole Size | Diameter | d | mm | 70 |
| Depth | I | mm | 100 | |
| Table Size | F-B | D | mm | 760 |
| L-R | C | mm | 1175 | |
| Thickness | H3 | mm | 165 | |
| Table Hole Diameter | ¢ | mm | 220 | |
| Overall Dimensions | F-B | A | mm | 2305 |
| L-R | B | mm | 1420 | |
| Height | H | mm | 3215 | |
| Motor Power | KW | 15 | ||
| Weight (approximate) | kg | 13600 | ||
