400ton H Frame Two Points Metal Parts Stamping Press Machine

400ton two-points stamping press features:

1. Optimized structure, strong and compact. Double-cankshaft with extended bolster and slide working area. Suitable for progressive die stamping and multi-stations die stamping.

2. Mono-block steel plate welded body, heat treatment. High rigidness and precision.

3. PLC control, pnuematic clutch and brake with dual-safety solenoid valve.

4. Movable T stand and electric cabinet. Control panel in English language version.

5. Straight side mono-block type body. Customizable die height and table size.

6. Eight-faces slide guide gibs. High precision and working smoothly.

7. Automatic grease lubrication with fault monitor system.

Press Standard Configrations:

1. Omron or Delta PLC

2. HMI with touch screen

3. Pneumatic clutch and brake, dry type or wet type

4. Electric grease pump with distributor for lubrication system

5. Pneumatic overload pump with hydraulic system for overload protection system

6. Tool and slide counterweight balance pneumatic cylinder

7. Slide height adjust motor with die height indicator

8. 4pcs isolation mounting pads

Press Optional Accessories:

1. Die cushion

2. Tonnage monitor

3. Quick die change device, hydraulic die lifters, die clamps, pump unit and control system

4. Safety door

5. 3-xis transfer bar system

6. Compact straightener feeder with uncoiler

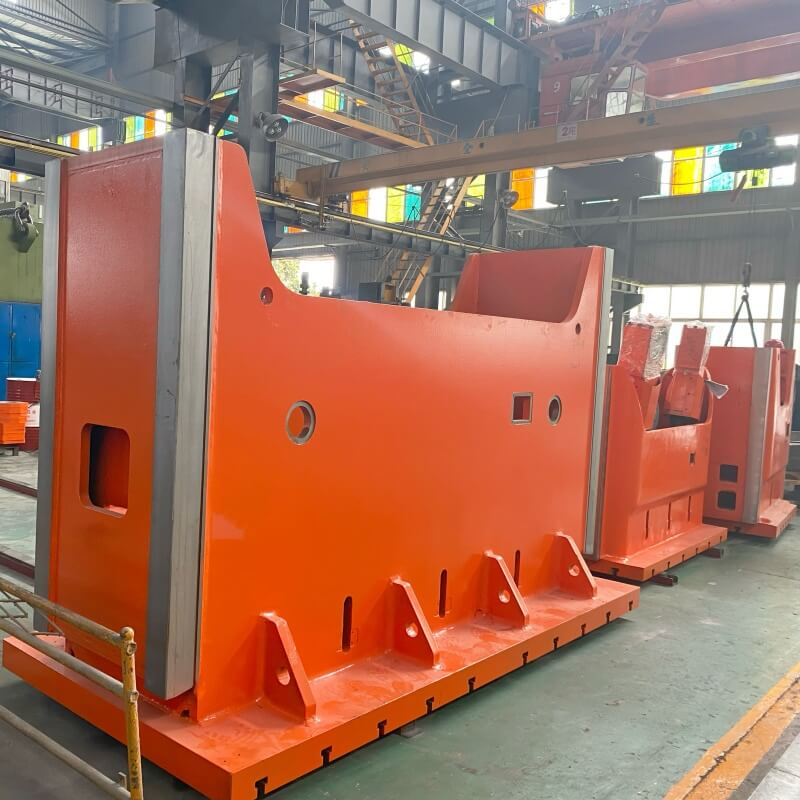

Details of 400 ton press machine:
