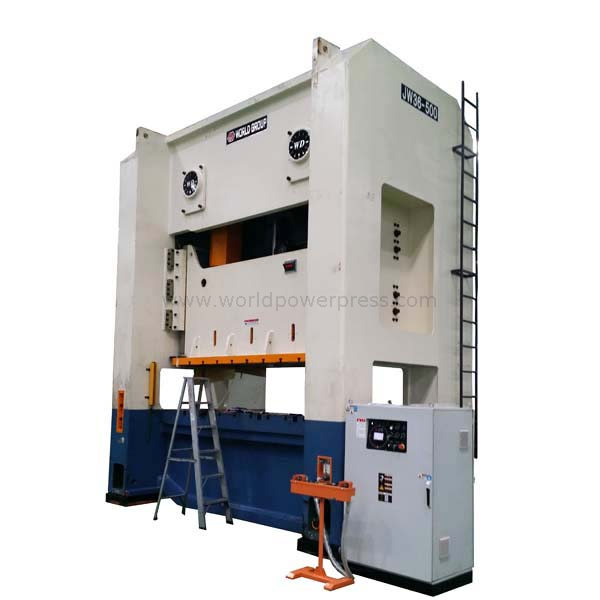

JW36-500
WORLD
-bolster size 3000x1200mm, ram plate size 2700x1100mm
-PLC control, HMI with touch screen, hydraulic overload protection
-wet type pneumatic clutch, automatic grease lubrication
-mono-block type steel welded body
-with mounting pads, anti-vibration
-CE approved
| ITEM | CODE | UNIT | JW36-500 | |
| Nominal Capacity | KN | 5000 | ||
| Slide Stroke Length | S | mm | 300 | |
| Slide Stroke Speed | Fixed | spm | 20 | |
| Variable (optional) | spm | 15-25 | ||
| Max. Die Shut Height | H2 | mm | 650 | |
| Die Shut Height Adjustment | t | mm | 130 | |
| Side Window Size | F-B | E | mm | 1100 |
| Height | F | mm | 600 | |
| Distance Between Uprights | G | mm | 3200 | |
| Table Size | F-B | D | mm | 1200 |
| L-R | C | mm | 3000 | |
| Thickness | H3 | mm | 210 | |
| Slide Bottom Size | F-B | b | mm | 1100 |
| L-R | a | mm | 2700 | |
| Table Surface Height | H1 | mm | 1340 | |
| Overall Dimensions | F-B | A | mm | 3400 |
| L-R | B | mm | 4200 | |
| Height | H | mm | 6000 | |
| Motor Power | KW | 55 | ||
| Weight (approximate) | kg | 75500 | ||
-bolster size 3000x1200mm, ram plate size 2700x1100mm
-PLC control, HMI with touch screen, hydraulic overload protection
-wet type pneumatic clutch, automatic grease lubrication
-mono-block type steel welded body
-with mounting pads, anti-vibration
-CE approved
| ITEM | CODE | UNIT | JW36-500 | |
| Nominal Capacity | KN | 5000 | ||
| Slide Stroke Length | S | mm | 300 | |
| Slide Stroke Speed | Fixed | spm | 20 | |
| Variable (optional) | spm | 15-25 | ||
| Max. Die Shut Height | H2 | mm | 650 | |
| Die Shut Height Adjustment | t | mm | 130 | |
| Side Window Size | F-B | E | mm | 1100 |
| Height | F | mm | 600 | |
| Distance Between Uprights | G | mm | 3200 | |
| Table Size | F-B | D | mm | 1200 |
| L-R | C | mm | 3000 | |
| Thickness | H3 | mm | 210 | |
| Slide Bottom Size | F-B | b | mm | 1100 |
| L-R | a | mm | 2700 | |
| Table Surface Height | H1 | mm | 1340 | |
| Overall Dimensions | F-B | A | mm | 3400 |
| L-R | B | mm | 4200 | |
| Height | H | mm | 6000 | |
| Motor Power | KW | 55 | ||
| Weight (approximate) | kg | 75500 | ||
