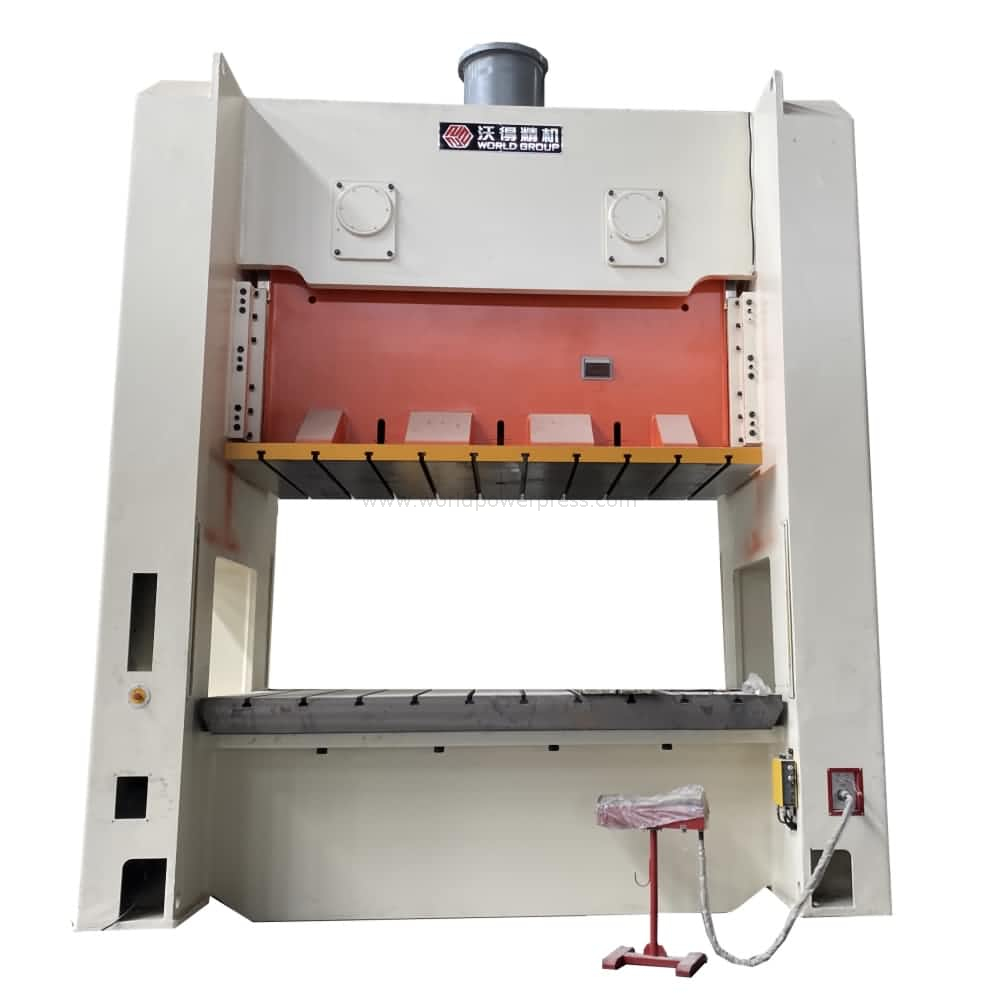

500ton Two-points Straight Side Progressive Die Stamping Press

500ton straight side press features:

1. Mono-block type single-piece steel plate welded body, anealing treatment, releasing stress, strong and rigid.

2. Bolster size 3000x1200mm, ram plate size 2700x1100mm, customizable of these dimensions.

3. PLC control, HMI with touch screen, hydraulic overload protection. Monitor and alarm fucntion if any maulfunction.

4. Wet type pneumatic clutch, simple maintenance and longer service lift. Automatic grease lubrication for bushes and guide rails, thin-oil lubrication for balance cylinder. Lubrication frequency can be set on HMI with pulse monitor.

5. Automation I/O integrated in PLC. Can work with coil feeding machines, manipulators, industrial robots, 3-axis transfer systems.

6. With mounting pads, anti-vibration, no need extra pit for installation.

7. CE approved

Press Standard Equipment:

1. PLC and HMI (touch-screen), English version

2. Overload protection system (pneumatic overload pump with hydraulic system)

3. Pneumatic clutch and brake (dry type or wet type)

4. Slide and die counterweight balance pneumatic cylinder

5. Die height digital indicator

6. Movable electric cabinet and T-stand control panel

7. Mis-feeding protection inputs

8. Automatic central control grease lubrication system

9. 4pcs isolation mounting pads

Press Optional Equipment:

1. Quick die change device: hydraulic die clamp, die lifters, die arms

2. Coil feeding machines: uncoiler, straightener feeder

3. Tonnage monitor

4. Die safety block

5. Die cushion

6. Safety door

Package and Shipment:

1. Packed with steel pallet with water-proof clothes

2. Shipped by bulk vessel, assembled

Details of 500 ton progressive press machine:
