JH21-160
WORLD

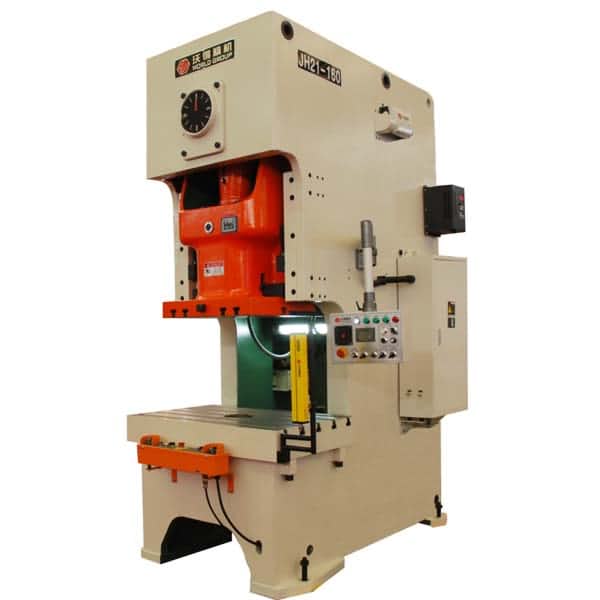

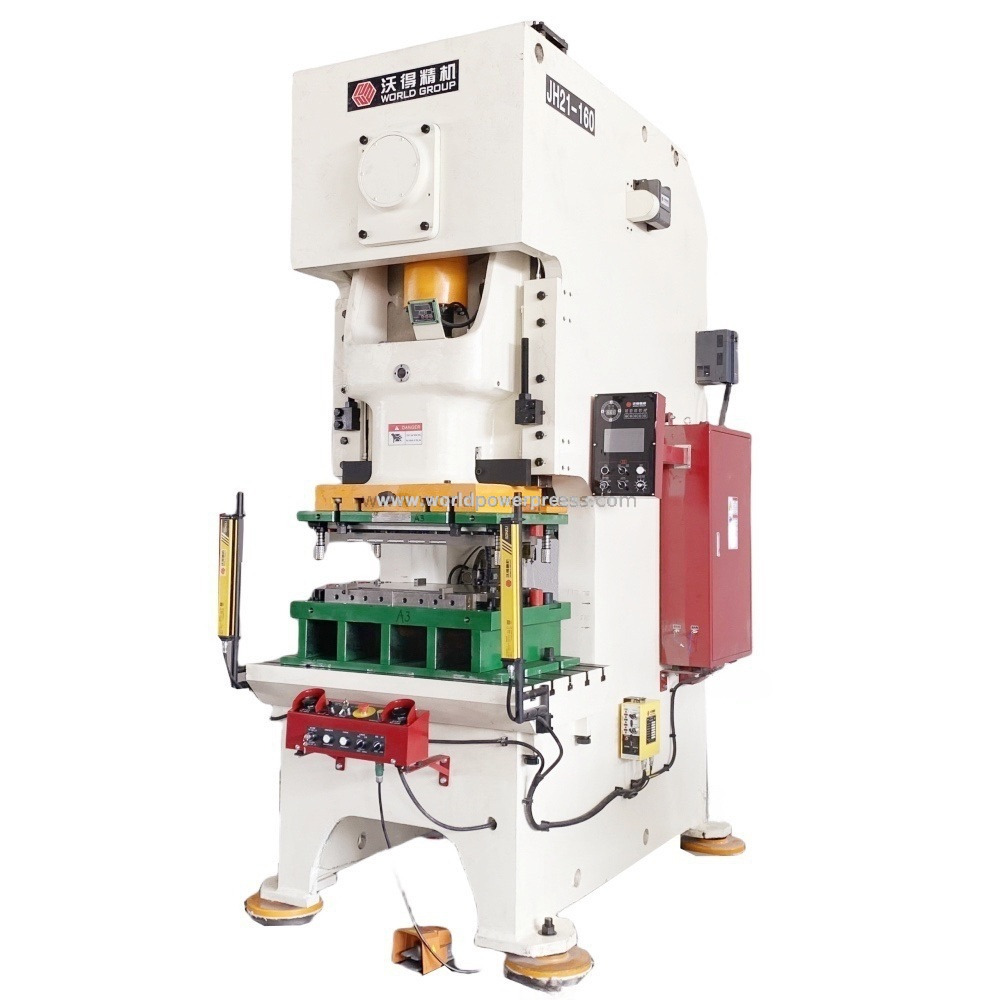

JH21-160 fixed bed press machine is suitable for metal parts punching, cutting, trimming and forming. It is a mechanical type press. Transmission system included the motor, flywheel, big gear and crankshaft. This press adopts wet type combined clutch and brake. All brake and clutch pads are oil bath inside the flywheel. The advantages are lower noise, better cooling, better lubricant, cheaper maintenance cost and longer service life. It is much cleaner environment for stamping parts cleaning surface.
-Panasonic brand PLC and Kinco HMI
-Pneumatic clutch and brake, WORLD patent design
-Hydraulic overload protection system
-Slide adjust flat motor
-Automatic central control grease lubricant system
-Both two-hand-button control and foot pedal control
-Anti-vibraton mounting pads
-frequency inverter for adjustable stroke speeds
-safety light barriers
-piston type pneumatic cushion under the bolster
-metal strip uncoiling machine and feeding machine
-die safety block
-die quick change device
| ITEM | CODE | UNIT | JH21-160 | |
| Nominal Capacity | Pe | KN | 1600 | |
| Tonnage Point | mm | 6 | ||
| Slide Stroke Length | S | mm | 200 | |
| Slide Strokes | Fixed | spm | 45 | |
| Variable (optional) | spm | 30-45 | ||
| Max. Shut Height | H2 | mm | 400 | |
| Shut Height Adjustment | t | mm | 100 | |
| Throat Depth | C1 | mm | 400 | |
| Distance Between Columns | d1 | mm | 676 | |
| Slide Bottom Size | F-B | b | mm | 580 |
| L-R | a | mm | 700 | |
| Shank Hole Size | Diameter | d | mm | 70 |
| Depth | I | mm | 100 | |
| Table Size | F-B | D | mm | 760 |
| L-R | C | mm | 1175 | |
| Thickness | H3 | mm | 165 | |
| Table Hole Diameter | ¢ | mm | 220 | |
| Overall Dimensions | F-B | A | mm | 2305 |
| L-R | B | mm | 1420 | |
| Height | H | mm | 3215 | |
| Motor Power | KW | 15 | ||
| Weight (approximate) | kg | 13600 | ||
JH21-160 fixed bed press machine is suitable for metal parts punching, cutting, trimming and forming. It is a mechanical type press. Transmission system included the motor, flywheel, big gear and crankshaft. This press adopts wet type combined clutch and brake. All brake and clutch pads are oil bath inside the flywheel. The advantages are lower noise, better cooling, better lubricant, cheaper maintenance cost and longer service life. It is much cleaner environment for stamping parts cleaning surface.
-Panasonic brand PLC and Kinco HMI
-Pneumatic clutch and brake, WORLD patent design
-Hydraulic overload protection system
-Slide adjust flat motor
-Automatic central control grease lubricant system
-Both two-hand-button control and foot pedal control
-Anti-vibraton mounting pads
-frequency inverter for adjustable stroke speeds
-safety light barriers
-piston type pneumatic cushion under the bolster
-metal strip uncoiling machine and feeding machine
-die safety block
-die quick change device
| ITEM | CODE | UNIT | JH21-160 | |
| Nominal Capacity | Pe | KN | 1600 | |
| Tonnage Point | mm | 6 | ||
| Slide Stroke Length | S | mm | 200 | |
| Slide Strokes | Fixed | spm | 45 | |
| Variable (optional) | spm | 30-45 | ||
| Max. Shut Height | H2 | mm | 400 | |
| Shut Height Adjustment | t | mm | 100 | |
| Throat Depth | C1 | mm | 400 | |
| Distance Between Columns | d1 | mm | 676 | |
| Slide Bottom Size | F-B | b | mm | 580 |
| L-R | a | mm | 700 | |
| Shank Hole Size | Diameter | d | mm | 70 |
| Depth | I | mm | 100 | |
| Table Size | F-B | D | mm | 760 |
| L-R | C | mm | 1175 | |
| Thickness | H3 | mm | 165 | |
| Table Hole Diameter | ¢ | mm | 220 | |
| Overall Dimensions | F-B | A | mm | 2305 |
| L-R | B | mm | 1420 | |
| Height | H | mm | 3215 | |
| Motor Power | KW | 15 | ||
| Weight (approximate) | kg | 13600 | ||
