TNCF
WORLD

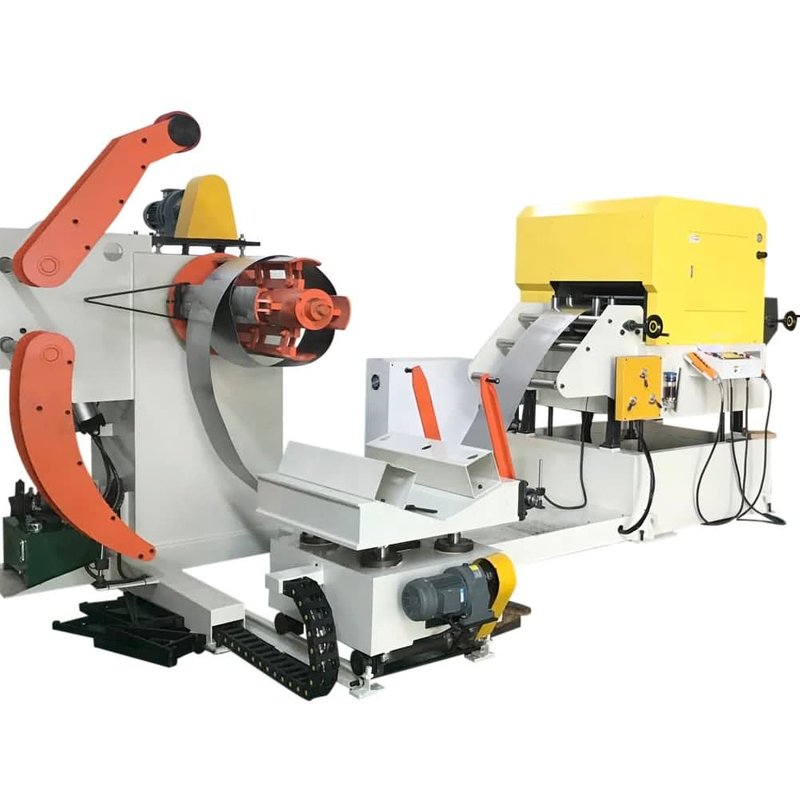

TNCF3 series servo feeder is suitable for feeding coil thickness less than 3mm. Straightening and feeding parts are combined together. Decoiler part with optional coil loading trolley is on the other side. Feeding direction could be customized. This feeder can work as manually or automatically according to press circles.
| Item/Model | TNCF2-300 | TNCF2-400 | TNCF2-500 | TNCF2-600 | TNCF2-700 | TNCF2-800 |
| Width of Material(mm) | 75-300 | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 |
| Thickness of Material(mm) | 0.3-2.3 | |||||
| Max. Coil Weight(kg) | 2T | 3T | 5T | |||
| weight can be customized | ||||||
| Coil L.D.(mm) | 508 | |||||
| Max. Coil O.D.(mm) | 1200 | |||||
| Max.Speed(m/min) | 16 | |||||
| Feed Pitch Accuracy(mm) | ±0.15 | |||||
| Feed ROLL | Upper1 / Lower1 | |||||
| Straighten ROLL | Upper5 / Lower4 | |||||
| Voltage | 380VAC / 60Hz | |||||
| Air power supply | 5kg / CM² | |||||
| Uncoiler Expansion | Hydraulic | |||||
| Servo Motor(kw) | AC1.8 | AC2.9 | ||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | ||||
| Coil Car | optional | |||||
| Pass line | ±100 MM | |||||
| Item/Model | TNCF3-300 | TNCF3-400 | TNCF3-500 | TNCF3-600 | TNCF3-700 | TNCF3-800 | TNCF3-1000 |
| Width of Material(mm) | 75-300 | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 | 75-1000 |
| Thickness of Material(mm) | 0.4 - 3.2 | ||||||
| Max.coil Weight(kg) | 2T | 3T | 5T | ||||
| Coil L.D.(mm) | 508 | ||||||
| Max.Coil O.D.(mm) | 1200 | ||||||
| Max.Speed(m/min) | 16 | ||||||
| Feed Pitch Accuracy(mm) | ±0.15 | ||||||
| Feed ROLL | Upper1 / Lower1 | ||||||
| Straighten ROLL | Upper5 / Lower4 | Upper4 / Lower3 | |||||
| Voltage | 380VAC / 60Hz | ||||||
| Air power supply | 5kg / CM² | ||||||
| Uncoiler Expansion | Hydraulic | ||||||
| Servo Motor(kw) | AC1.8 | AC2.9 | AC4.4 | ||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | |||||
| Coil Car | optional | ||||||
| Pass line | ±100 MM | ||||||
TNCF3 series servo feeder is suitable for feeding coil thickness less than 3mm. Straightening and feeding parts are combined together. Decoiler part with optional coil loading trolley is on the other side. Feeding direction could be customized. This feeder can work as manually or automatically according to press circles.
| Item/Model | TNCF2-300 | TNCF2-400 | TNCF2-500 | TNCF2-600 | TNCF2-700 | TNCF2-800 |
| Width of Material(mm) | 75-300 | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 |
| Thickness of Material(mm) | 0.3-2.3 | |||||
| Max. Coil Weight(kg) | 2T | 3T | 5T | |||
| weight can be customized | ||||||
| Coil L.D.(mm) | 508 | |||||
| Max. Coil O.D.(mm) | 1200 | |||||
| Max.Speed(m/min) | 16 | |||||
| Feed Pitch Accuracy(mm) | ±0.15 | |||||
| Feed ROLL | Upper1 / Lower1 | |||||
| Straighten ROLL | Upper5 / Lower4 | |||||
| Voltage | 380VAC / 60Hz | |||||
| Air power supply | 5kg / CM² | |||||
| Uncoiler Expansion | Hydraulic | |||||
| Servo Motor(kw) | AC1.8 | AC2.9 | ||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | ||||
| Coil Car | optional | |||||
| Pass line | ±100 MM | |||||
| Item/Model | TNCF3-300 | TNCF3-400 | TNCF3-500 | TNCF3-600 | TNCF3-700 | TNCF3-800 | TNCF3-1000 |
| Width of Material(mm) | 75-300 | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 | 75-1000 |
| Thickness of Material(mm) | 0.4 - 3.2 | ||||||
| Max.coil Weight(kg) | 2T | 3T | 5T | ||||
| Coil L.D.(mm) | 508 | ||||||
| Max.Coil O.D.(mm) | 1200 | ||||||
| Max.Speed(m/min) | 16 | ||||||
| Feed Pitch Accuracy(mm) | ±0.15 | ||||||
| Feed ROLL | Upper1 / Lower1 | ||||||
| Straighten ROLL | Upper5 / Lower4 | Upper4 / Lower3 | |||||
| Voltage | 380VAC / 60Hz | ||||||
| Air power supply | 5kg / CM² | ||||||
| Uncoiler Expansion | Hydraulic | ||||||
| Servo Motor(kw) | AC1.8 | AC2.9 | AC4.4 | ||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | |||||
| Coil Car | optional | ||||||
| Pass line | ±100 MM | ||||||
