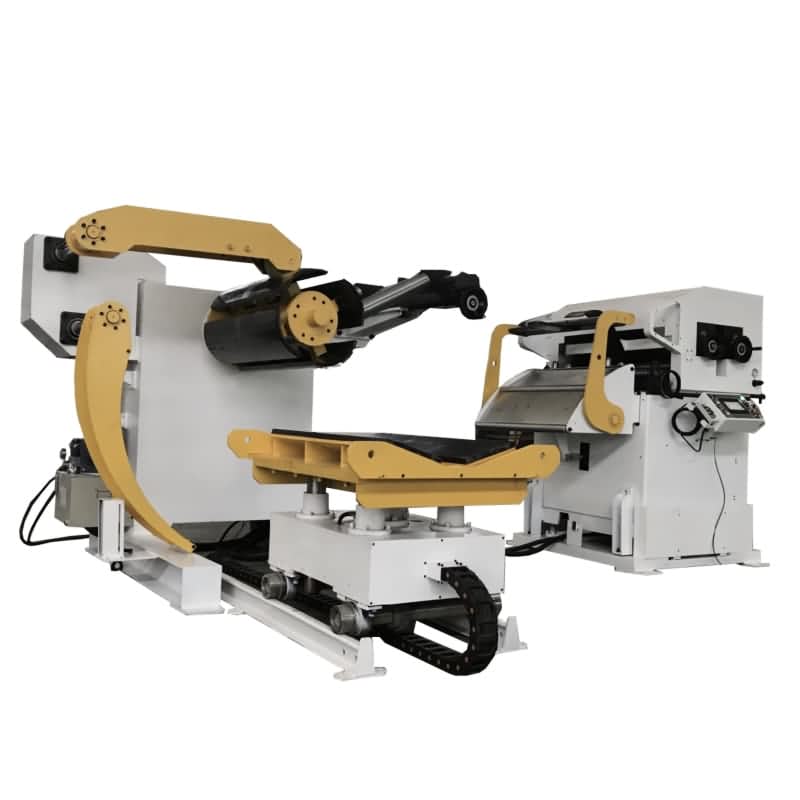

3 in 1 means the feeding machine, straightening machine and uncoiling machine are combined in one machine. Straightening head with feeding part are in one side. Uncoiling part on the other side with an optional coil loading trolley. Control system is combined and ensures the three parts working sychronization. Coil thickness, width, coil weight and diameters are all customizable according to buyer's request.
| Item/Model | TNCF2-300 | TNCF2-400 | TNCF2-500 | TNCF2-600 | TNCF2-700 | TNCF2-800 |
| Width of Material(mm) | 75-300 | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 |
| Thickness of Material(mm) | 0.3-2.3 | |||||
| Max. Coil Weight(kg) | 2T | 3T | 5T | |||
| weight can be customized | ||||||
| Coil L.D.(mm) | 508 | |||||
| Max. Coil O.D.(mm) | 1200 | |||||
| Max.Speed(m/min) | 16 | |||||
| Feed Pitch Accuracy(mm) | ±0.15 | |||||
| Feed ROLL | Upper1 / Lower1 | |||||
| Straighten ROLL | Upper5 / Lower4 | |||||
| Voltage | 380VAC / 60Hz | |||||
| Air power supply | 5kg / CM² | |||||
| Uncoiler Expansion | Hydraulic | |||||
| Servo Motor(kw) | AC1.8 | AC2.9 | ||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | ||||
| Coil Car | optional | |||||
| Pass line | ±100 MM | |||||
| Item/Model | TNCF3-300 | TNCF3-400 | TNCF3-500 | TNCF3-600 | TNCF3-700 | TNCF3-800 | TNCF3-1000 |
| Width of Material(mm) | 75-300 | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 | 75-1000 |
| Thickness of Material(mm) | 0.4 - 3.2 | ||||||
| Max.coil Weight(kg) | 2T | 3T | 5T | ||||
| Coil L.D.(mm) | 508 | ||||||
| Max.Coil O.D.(mm) | 1200 | ||||||
| Max.Speed(m/min) | 16 | ||||||
| Feed Pitch Accuracy(mm) | ±0.15 | ||||||
| Feed ROLL | Upper1 / Lower1 | ||||||
| Straighten ROLL | Upper5 / Lower4 | Upper4 / Lower3 | |||||
| Voltage | 380VAC / 60Hz | ||||||
| Air power supply | 5kg / CM² | ||||||
| Uncoiler Expansion | Hydraulic | ||||||
| Servo Motor(kw) | AC1.8 | AC2.9 | AC4.4 | ||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | |||||
| Coil Car | optional | ||||||
| Pass line | ±100 MM | ||||||
3 in 1 means the feeding machine, straightening machine and uncoiling machine are combined in one machine. Straightening head with feeding part are in one side. Uncoiling part on the other side with an optional coil loading trolley. Control system is combined and ensures the three parts working sychronization. Coil thickness, width, coil weight and diameters are all customizable according to buyer's request.
| Item/Model | TNCF2-300 | TNCF2-400 | TNCF2-500 | TNCF2-600 | TNCF2-700 | TNCF2-800 |
| Width of Material(mm) | 75-300 | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 |
| Thickness of Material(mm) | 0.3-2.3 | |||||
| Max. Coil Weight(kg) | 2T | 3T | 5T | |||
| weight can be customized | ||||||
| Coil L.D.(mm) | 508 | |||||
| Max. Coil O.D.(mm) | 1200 | |||||
| Max.Speed(m/min) | 16 | |||||
| Feed Pitch Accuracy(mm) | ±0.15 | |||||
| Feed ROLL | Upper1 / Lower1 | |||||
| Straighten ROLL | Upper5 / Lower4 | |||||
| Voltage | 380VAC / 60Hz | |||||
| Air power supply | 5kg / CM² | |||||
| Uncoiler Expansion | Hydraulic | |||||
| Servo Motor(kw) | AC1.8 | AC2.9 | ||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | ||||
| Coil Car | optional | |||||
| Pass line | ±100 MM | |||||
| Item/Model | TNCF3-300 | TNCF3-400 | TNCF3-500 | TNCF3-600 | TNCF3-700 | TNCF3-800 | TNCF3-1000 |
| Width of Material(mm) | 75-300 | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 | 75-1000 |
| Thickness of Material(mm) | 0.4 - 3.2 | ||||||
| Max.coil Weight(kg) | 2T | 3T | 5T | ||||
| Coil L.D.(mm) | 508 | ||||||
| Max.Coil O.D.(mm) | 1200 | ||||||
| Max.Speed(m/min) | 16 | ||||||
| Feed Pitch Accuracy(mm) | ±0.15 | ||||||
| Feed ROLL | Upper1 / Lower1 | ||||||
| Straighten ROLL | Upper5 / Lower4 | Upper4 / Lower3 | |||||
| Voltage | 380VAC / 60Hz | ||||||
| Air power supply | 5kg / CM² | ||||||
| Uncoiler Expansion | Hydraulic | ||||||
| Servo Motor(kw) | AC1.8 | AC2.9 | AC4.4 | ||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | |||||
| Coil Car | optional | ||||||
| Pass line | ±100 MM | ||||||
