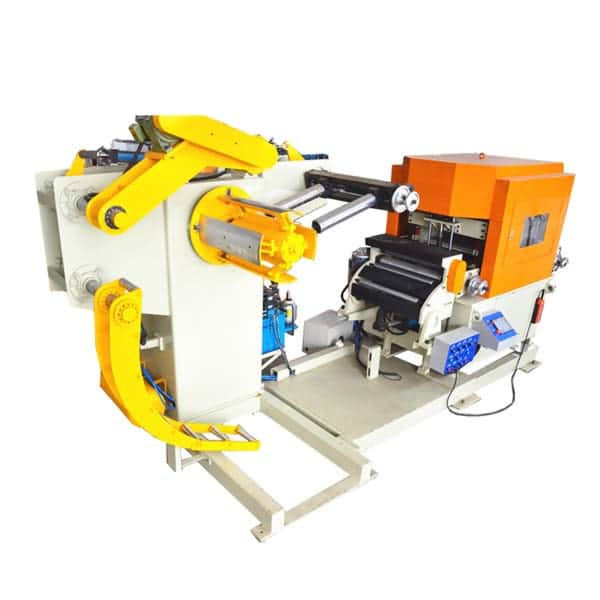

This compact feeder has two parts: straightening and feeding head, and decoiler part. The coil loading trolley is optional. This 3 in 1 design makes the automatic press line with small working space. And it is easier for thicker coil sheet inside the feeder part. PLC control, with inverter. Hydraulic mandrel expansion. Feeding height is 100mm down and up adjustable by motor.
| Item/Model | TNCF2-300 | TNCF2-400 | TNCF2-500 | TNCF2-600 | TNCF2-700 | TNCF2-800 |
| Width of Material(mm) | 75-300 | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 |
| Thickness of Material(mm) | 0.3-2.3 | |||||
| Max. Coil Weight(kg) | 2T | 3T | 5T | |||
| weight can be customized | ||||||
| Coil L.D.(mm) | 508 | |||||
| Max. Coil O.D.(mm) | 1200 | |||||
| Max.Speed(m/min) | 16 | |||||
| Feed Pitch Accuracy(mm) | ±0.15 | |||||
| Feed ROLL | Upper1 / Lower1 | |||||
| Straighten ROLL | Upper5 / Lower4 | |||||
| Voltage | 380VAC / 60Hz | |||||
| Air power supply | 5kg / CM² | |||||
| Uncoiler Expansion | Hydraulic | |||||
| Servo Motor(kw) | AC1.8 | AC2.9 | ||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | ||||
| Coil Car | optional | |||||
| Pass line | ±100 MM | |||||
| Item/Model | TNCF3-300 | TNCF3-400 | TNCF3-500 | TNCF3-600 | TNCF3-700 | TNCF3-800 | TNCF3-1000 |
| Width of Material(mm) | 75-300 | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 | 75-1000 |
| Thickness of Material(mm) | 0.4 - 3.2 | ||||||
| Max.coil Weight(kg) | 2T | 3T | 5T | ||||
| Coil L.D.(mm) | 508 | ||||||
| Max.Coil O.D.(mm) | 1200 | ||||||
| Max.Speed(m/min) | 16 | ||||||
| Feed Pitch Accuracy(mm) | ±0.15 | ||||||
| Feed ROLL | Upper1 / Lower1 | ||||||
| Straighten ROLL | Upper5 / Lower4 | Upper4 / Lower3 | |||||
| Voltage | 380VAC / 60Hz | ||||||
| Air power supply | 5kg / CM² | ||||||
| Uncoiler Expansion | Hydraulic | ||||||
| Servo Motor(kw) | AC1.8 | AC2.9 | AC4.4 | ||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | |||||
| Coil Car | optional | ||||||
| Pass line | ±100 MM | ||||||
This compact feeder has two parts: straightening and feeding head, and decoiler part. The coil loading trolley is optional. This 3 in 1 design makes the automatic press line with small working space. And it is easier for thicker coil sheet inside the feeder part. PLC control, with inverter. Hydraulic mandrel expansion. Feeding height is 100mm down and up adjustable by motor.
| Item/Model | TNCF2-300 | TNCF2-400 | TNCF2-500 | TNCF2-600 | TNCF2-700 | TNCF2-800 |
| Width of Material(mm) | 75-300 | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 |
| Thickness of Material(mm) | 0.3-2.3 | |||||
| Max. Coil Weight(kg) | 2T | 3T | 5T | |||
| weight can be customized | ||||||
| Coil L.D.(mm) | 508 | |||||
| Max. Coil O.D.(mm) | 1200 | |||||
| Max.Speed(m/min) | 16 | |||||
| Feed Pitch Accuracy(mm) | ±0.15 | |||||
| Feed ROLL | Upper1 / Lower1 | |||||
| Straighten ROLL | Upper5 / Lower4 | |||||
| Voltage | 380VAC / 60Hz | |||||
| Air power supply | 5kg / CM² | |||||
| Uncoiler Expansion | Hydraulic | |||||
| Servo Motor(kw) | AC1.8 | AC2.9 | ||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | ||||
| Coil Car | optional | |||||
| Pass line | ±100 MM | |||||
| Item/Model | TNCF3-300 | TNCF3-400 | TNCF3-500 | TNCF3-600 | TNCF3-700 | TNCF3-800 | TNCF3-1000 |
| Width of Material(mm) | 75-300 | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 | 75-1000 |
| Thickness of Material(mm) | 0.4 - 3.2 | ||||||
| Max.coil Weight(kg) | 2T | 3T | 5T | ||||
| Coil L.D.(mm) | 508 | ||||||
| Max.Coil O.D.(mm) | 1200 | ||||||
| Max.Speed(m/min) | 16 | ||||||
| Feed Pitch Accuracy(mm) | ±0.15 | ||||||
| Feed ROLL | Upper1 / Lower1 | ||||||
| Straighten ROLL | Upper5 / Lower4 | Upper4 / Lower3 | |||||
| Voltage | 380VAC / 60Hz | ||||||
| Air power supply | 5kg / CM² | ||||||
| Uncoiler Expansion | Hydraulic | ||||||
| Servo Motor(kw) | AC1.8 | AC2.9 | AC4.4 | ||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | |||||
| Coil Car | optional | ||||||
| Pass line | ±100 MM | ||||||
