TNCF
WORLD

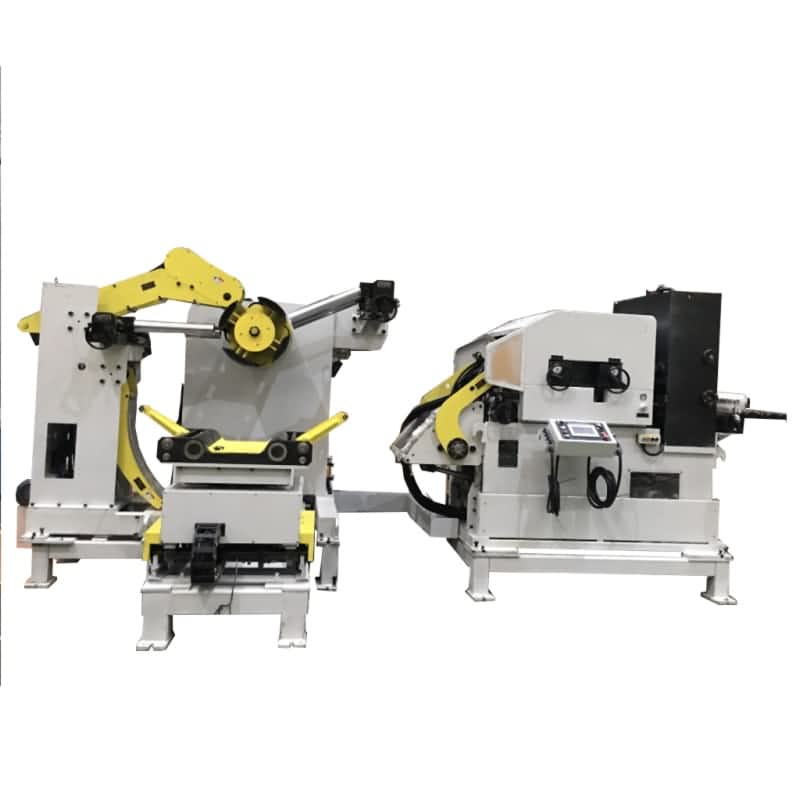

TNCF series coil feeding machine adopts steel welded structure. All feeding and straightening rollers are treatment for good surface hardness. PLC central control, famous brand servo motor and frequency inverter. Decoiler mandrel is hydraulic expansion with coil hold arm. Coil side safety protect arms are also equipped. Straightening rollers gap is adjustable by hand wheel. Feeding head height is adjustable by motor.
| Item/Model | TNCF2-300 | TNCF2-400 | TNCF2-500 | TNCF2-600 | TNCF2-700 | TNCF2-800 |
| Width of Material(mm) | 75-300 | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 |
| Thickness of Material(mm) | 0.3-2.3 | |||||
| Max. Coil Weight(kg) | 2T | 3T | 5T | |||
| weight can be customized | ||||||
| Coil L.D.(mm) | 508 | |||||
| Max. Coil O.D.(mm) | 1200 | |||||
| Max.Speed(m/min) | 16 | |||||
| Feed Pitch Accuracy(mm) | ±0.15 | |||||
| Feed ROLL | Upper1 / Lower1 | |||||
| Straighten ROLL | Upper5 / Lower4 | |||||
| Voltage | 380VAC / 60Hz | |||||
| Air power supply | 5kg / CM² | |||||
| Uncoiler Expansion | Hydraulic | |||||
| Servo Motor(kw) | AC1.8 | AC2.9 | ||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | ||||
| Coil Car | optional | |||||
| Pass line | ±100 MM | |||||
| Item/Model | TNCF3-300 | TNCF3-400 | TNCF3-500 | TNCF3-600 | TNCF3-700 | TNCF3-800 | TNCF3-1000 |
| Width of Material(mm) | 75-300 | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 | 75-1000 |
| Thickness of Material(mm) | 0.4 - 3.2 | ||||||
| Max.coil Weight(kg) | 2T | 3T | 5T | ||||
| Coil L.D.(mm) | 508 | ||||||
| Max.Coil O.D.(mm) | 1200 | ||||||
| Max.Speed(m/min) | 16 | ||||||
| Feed Pitch Accuracy(mm) | ±0.15 | ||||||
| Feed ROLL | Upper1 / Lower1 | ||||||
| Straighten ROLL | Upper5 / Lower4 | Upper4 / Lower3 | |||||
| Voltage | 380VAC / 60Hz | ||||||
| Air power supply | 5kg / CM² | ||||||
| Uncoiler Expansion | Hydraulic | ||||||
| Servo Motor(kw) | AC1.8 | AC2.9 | AC4.4 | ||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | |||||
| Coil Car | optional | ||||||
| Pass line | ±100 MM | ||||||
TNCF series coil feeding machine adopts steel welded structure. All feeding and straightening rollers are treatment for good surface hardness. PLC central control, famous brand servo motor and frequency inverter. Decoiler mandrel is hydraulic expansion with coil hold arm. Coil side safety protect arms are also equipped. Straightening rollers gap is adjustable by hand wheel. Feeding head height is adjustable by motor.
| Item/Model | TNCF2-300 | TNCF2-400 | TNCF2-500 | TNCF2-600 | TNCF2-700 | TNCF2-800 |
| Width of Material(mm) | 75-300 | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 |
| Thickness of Material(mm) | 0.3-2.3 | |||||
| Max. Coil Weight(kg) | 2T | 3T | 5T | |||
| weight can be customized | ||||||
| Coil L.D.(mm) | 508 | |||||
| Max. Coil O.D.(mm) | 1200 | |||||
| Max.Speed(m/min) | 16 | |||||
| Feed Pitch Accuracy(mm) | ±0.15 | |||||
| Feed ROLL | Upper1 / Lower1 | |||||
| Straighten ROLL | Upper5 / Lower4 | |||||
| Voltage | 380VAC / 60Hz | |||||
| Air power supply | 5kg / CM² | |||||
| Uncoiler Expansion | Hydraulic | |||||
| Servo Motor(kw) | AC1.8 | AC2.9 | ||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | ||||
| Coil Car | optional | |||||
| Pass line | ±100 MM | |||||
| Item/Model | TNCF3-300 | TNCF3-400 | TNCF3-500 | TNCF3-600 | TNCF3-700 | TNCF3-800 | TNCF3-1000 |
| Width of Material(mm) | 75-300 | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 | 75-1000 |
| Thickness of Material(mm) | 0.4 - 3.2 | ||||||
| Max.coil Weight(kg) | 2T | 3T | 5T | ||||
| Coil L.D.(mm) | 508 | ||||||
| Max.Coil O.D.(mm) | 1200 | ||||||
| Max.Speed(m/min) | 16 | ||||||
| Feed Pitch Accuracy(mm) | ±0.15 | ||||||
| Feed ROLL | Upper1 / Lower1 | ||||||
| Straighten ROLL | Upper5 / Lower4 | Upper4 / Lower3 | |||||
| Voltage | 380VAC / 60Hz | ||||||
| Air power supply | 5kg / CM² | ||||||
| Uncoiler Expansion | Hydraulic | ||||||
| Servo Motor(kw) | AC1.8 | AC2.9 | AC4.4 | ||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | |||||
| Coil Car | optional | ||||||
| Pass line | ±100 MM | ||||||
