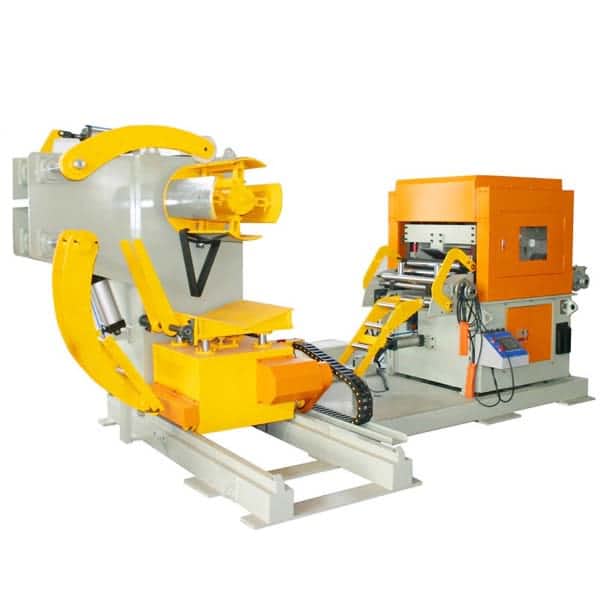

This servo NC feeder has a strong straightening head with feeding rollers. Friendly HMI with touch screen. Operator can set the feeding speed, feeding length and feeding steps through the screen. Hydraulic coil loading car is optional. Coil inner diameter and external diameters could be conform to customer's request. PLC control, with famous brand servo motor and inverter. Straightening rollers gap is adjustable. Feeding line height is adjustable.
| Item/Model | TNCF2-300 | TNCF2-400 | TNCF2-500 | TNCF2-600 | TNCF2-700 | TNCF2-800 |
| Width of Material(mm) | 75-300 | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 |
| Thickness of Material(mm) | 0.3-2.3 | |||||
| Max. Coil Weight(kg) | 2T | 3T | 5T | |||
| weight can be customized | ||||||
| Coil L.D.(mm) | 508 | |||||
| Max. Coil O.D.(mm) | 1200 | |||||
| Max.Speed(m/min) | 16 | |||||
| Feed Pitch Accuracy(mm) | ±0.15 | |||||
| Feed ROLL | Upper1 / Lower1 | |||||
| Straighten ROLL | Upper5 / Lower4 | |||||
| Voltage | 380VAC / 60Hz | |||||
| Air power supply | 5kg / CM² | |||||
| Uncoiler Expansion | Hydraulic | |||||
| Servo Motor(kw) | AC1.8 | AC2.9 | ||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | ||||
| Coil Car | optional | |||||
| Pass line | ±100 MM | |||||
| Item/Model | TNCF3-300 | TNCF3-400 | TNCF3-500 | TNCF3-600 | TNCF3-700 | TNCF3-800 | TNCF3-1000 |
| Width of Material(mm) | 75-300 | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 | 75-1000 |
| Thickness of Material(mm) | 0.4 - 3.2 | ||||||
| Max.coil Weight(kg) | 2T | 3T | 5T | ||||
| Coil L.D.(mm) | 508 | ||||||
| Max.Coil O.D.(mm) | 1200 | ||||||
| Max.Speed(m/min) | 16 | ||||||
| Feed Pitch Accuracy(mm) | ±0.15 | ||||||
| Feed ROLL | Upper1 / Lower1 | ||||||
| Straighten ROLL | Upper5 / Lower4 | Upper4 / Lower3 | |||||
| Voltage | 380VAC / 60Hz | ||||||
| Air power supply | 5kg / CM² | ||||||
| Uncoiler Expansion | Hydraulic | ||||||
| Servo Motor(kw) | AC1.8 | AC2.9 | AC4.4 | ||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | |||||
| Coil Car | optional | ||||||
| Pass line | ±100 MM | ||||||
This servo NC feeder has a strong straightening head with feeding rollers. Friendly HMI with touch screen. Operator can set the feeding speed, feeding length and feeding steps through the screen. Hydraulic coil loading car is optional. Coil inner diameter and external diameters could be conform to customer's request. PLC control, with famous brand servo motor and inverter. Straightening rollers gap is adjustable. Feeding line height is adjustable.
| Item/Model | TNCF2-300 | TNCF2-400 | TNCF2-500 | TNCF2-600 | TNCF2-700 | TNCF2-800 |
| Width of Material(mm) | 75-300 | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 |
| Thickness of Material(mm) | 0.3-2.3 | |||||
| Max. Coil Weight(kg) | 2T | 3T | 5T | |||
| weight can be customized | ||||||
| Coil L.D.(mm) | 508 | |||||
| Max. Coil O.D.(mm) | 1200 | |||||
| Max.Speed(m/min) | 16 | |||||
| Feed Pitch Accuracy(mm) | ±0.15 | |||||
| Feed ROLL | Upper1 / Lower1 | |||||
| Straighten ROLL | Upper5 / Lower4 | |||||
| Voltage | 380VAC / 60Hz | |||||
| Air power supply | 5kg / CM² | |||||
| Uncoiler Expansion | Hydraulic | |||||
| Servo Motor(kw) | AC1.8 | AC2.9 | ||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | ||||
| Coil Car | optional | |||||
| Pass line | ±100 MM | |||||
| Item/Model | TNCF3-300 | TNCF3-400 | TNCF3-500 | TNCF3-600 | TNCF3-700 | TNCF3-800 | TNCF3-1000 |
| Width of Material(mm) | 75-300 | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 | 75-1000 |
| Thickness of Material(mm) | 0.4 - 3.2 | ||||||
| Max.coil Weight(kg) | 2T | 3T | 5T | ||||
| Coil L.D.(mm) | 508 | ||||||
| Max.Coil O.D.(mm) | 1200 | ||||||
| Max.Speed(m/min) | 16 | ||||||
| Feed Pitch Accuracy(mm) | ±0.15 | ||||||
| Feed ROLL | Upper1 / Lower1 | ||||||
| Straighten ROLL | Upper5 / Lower4 | Upper4 / Lower3 | |||||
| Voltage | 380VAC / 60Hz | ||||||
| Air power supply | 5kg / CM² | ||||||
| Uncoiler Expansion | Hydraulic | ||||||
| Servo Motor(kw) | AC1.8 | AC2.9 | AC4.4 | ||||
| Uncoiler Motor(kw) | 1.5 KW | 2.2 KW | |||||
| Coil Car | optional | ||||||
| Pass line | ±100 MM | ||||||
