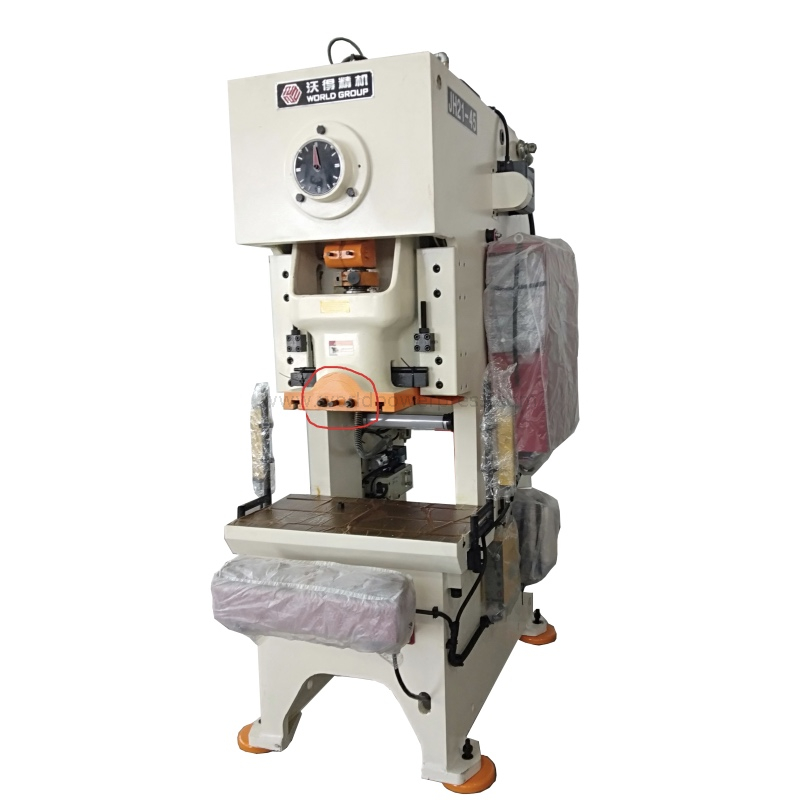

JH21-45
WORLD
- inches, single and continuous working modes
- compact size, rectangular type six faces ram guides
- with pneumatic clutch and brake, more safe
- oil bath type clutch, lower noise, easier maintenance
- steel welded body, high rigidness
- customized specifications, such as stroke length, die set height and table size
1) Wet type clutch and brake with dual safety solenoid valve
2) PLC control with HMI
3) Two-hand-button control panel
4) Electric grease lubricate pump
5) Die height indicator
6) Slide adjust motor
1) Die cushion
2) Light curtain for safety'
3) Inverter for adjustable stroke speeds
4) Foot pedal
5) Coil feeding machines, such as uncoiler, feeder and straightener
ITEM | CODE | UNIT | JH21-45 | |
Nominal Capacity | Pe | KN | 450 | |
Slide Stroke Length | S | mm | 120 | |
Slide Strokes | Fixed | spm | 80 | |
Variable (optional) | spm | 50-95 | ||
Max. Shut Height | H2 | mm | 270 | |
Shut Height Adjustment | t | mm | 60 | |
Throat Depth | C1 | mm | 225 | |
Distance Between Columns | d1 | mm | 525 | |
Slide Bottom Size | F-B | b | mm | 340 |
L-R | a | mm | 400 | |
Shank Hole Size | Diameter | d | mm | 50 |
Depth | I | mm | 60 | |
Table Size | F-B | D | mm | 440 |
L-R | C | mm | 825 | |
Thickness | H3 | mm | 110 | |
Table Hole Diameter | ¢ | mm | 150 | |
Overall Dimensions | F-B | A | mm | 1585 |
L-R | B | mm | 1075 | |
Height | H | mm | 2390 | |
Motor Power | KW | 5.5 | ||
Weight (approximate) | kg | 3550 |
